Engineered for extreme mining, deep-hole drilling, and demanding civil engineering operations worldwide.
As global mining operations shift toward harder geological strata and deeper underground drilling, the structural integrity of consumable drilling tools has become the single most critical factor in mitigating operational downtime.

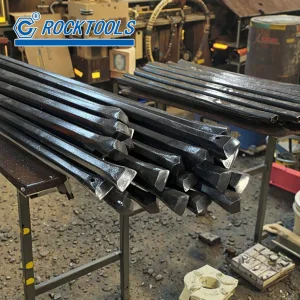

Integral drill steel (also known as integral drill rods) is the backbone of small-hole drilling configurations. Unlike extension drilling systems that rely on coupled shafts, rods, and couplings, integral steel combines the shank, rod body, and carbide bit into a singular, monobloc unit. This seamless integration eliminates energy loss through coupling joints, maximizing transmission efficiency from the pneumatic or hydraulic drifter straight to the rock face.
Suppliers and procurement directors prioritize sourcing from manufacturers that can guarantee high fatigue strength, precise mechanical dimensional tolerances, and ultra-high-density tungsten carbide inserts capable of surviving intense impact frequencies.
Under extreme stresses exceeding 400 MPa, standard steels fail rapidly via torsional fatigue. High-grade suppliers utilize advanced alloy recipes containing Chromium (Cr), Nickel (Ni), and Molybdenum (Mo) to yield maximum shock load absorption.
"Monobloc design ensures minimal stress concentration zones, allowing 100% kinetic energy transfer and reducing shank failure rates by up to 35% compared to multi-piece coupled components."
Driving Innovation in Industrial Machinery and Building a New Era of Advanced Equipment Manufacturing
Shandong E-Way Machine Co., Ltd. is a modern industrial equipment manufacturer dedicated to the research, development, production, and service of high-quality machinery and engineering solutions. With a strong focus on technological innovation and manufacturing excellence, the company serves customers in mining, construction, and various heavy-duty industrial sectors worldwide.
Over the years, Shandong E-Way Machine has developed a diversified product portfolio covering mining and construction drilling equipment, pneumatic and hydraulic tools, anchoring and support systems, mechanical transmission components, and a wide range of spare parts and accessories. In addition, the company provides customized machining services, including precision components, structural parts, and wear-resistant engineering plastic products, meeting the specific needs of different working conditions and industries.
Innovation is the core driving force behind Shandong E-Way Machine’s sustainable development. The company brings together experienced engineers and technical experts specializing in mechanical design and industrial equipment development. Through continuous research and development, we improve product structures, enhance operational efficiency, and upgrade performance reliability.
By integrating advanced manufacturing technologies and practical engineering experience, we have developed a series of independently designed products that deliver stable performance even under complex and demanding working environments.
To select the right integral drill steel, industrial engineers must evaluate metallurgical composition, shank size geometry, and chemical treatments.

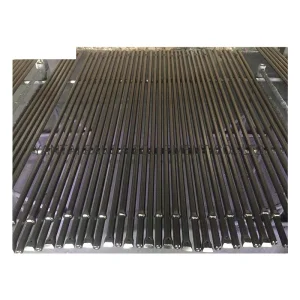

Our integral drill steels are fabricated from premium grade hexagonal steel hollow bars. Hollow cores are vital; they allow flushing water or compressed air to pass directly to the bit head to clear cuttings, preventing regrinding and heat accumulation which rapidly degrades the carbide insert. Below is an engineering comparison matrix of standard hex rod options:
| Specification Metric | Hexagonal 19mm (H19) | Hexagonal 22mm (H22) | Hexagonal 25mm (H25) |
|---|---|---|---|
| Shank Sizes | 19mm x 108mm | 22mm x 108mm / 22mm x 159mm | 25mm x 108mm / 25mm x 159mm |
| Flushing Hole Diameter | 6.5 mm | 7.1 mm or 8.0 mm | 9.0 mm |
| Recommended Hole Diameter | 20mm - 32mm | 26mm - 43mm | 34mm - 48mm |
| Alloy Composition Code | 95CrMo (Equivalent to Sandvik Sanbar 64) | 95CrMo / 40CrNiMo | 23CrNi3Mo (For extreme impact loads) |
| Core Hardness (HRC) | 38 - 42 HRC | 40 - 45 HRC | 42 - 47 HRC |
Carburizing introduces carbon to the surface of the steel hollow bar while maintaining a flexible, impact-absorbing core. This dual-structure prevents brittle fracture while ensuring high wear resistance against abrasive rock dust.
Using premium silver-copper brazing alloys in vacuum furnaces guarantees that the chisel-shaped tungsten carbide insert remains chemically bonded to the steel seat, even when operating at temperatures up to 450°C.
The shank collar must distribute impact energy symmetrically. Our automated hot forged process ensures the collar has exact thickness dimensions to fit hand-held pneumatic drills and heavy-duty rig chucks without play.
Rock drilling requirements vary dramatically by geology, topography, and local industrial regulations. Here is how Shandong E-Way Machine products adapt to regional challenges:
In regions like Scandinavia, hard igneous rock formations (granite and gneiss) demand drill steels with extreme compression strengths. Operators leverage our H22 x 108mm Chisel Bit Integral Rods to drill small blast holes for electrical conduits and anchoring systems. The low temperature thresholds of northern climates are counteracted by our low-temperature impact-tested steel alloys, preventing structural cracking under cold-start drilling operations.
Operating at elevations above 3,500 meters in the Andes presents unique challenges for pneumatic air compressors. Standard drill rods experience air pressure drops which lead to sluggish hammering cycles and elevated drill rod binding. Our optimization of the internal flushing hole diameter (increasing it to 8.0mm in customized H22 rods) reduces backpressure, ensuring efficient air/water flushing even at high altitudes.
In underground gold and emerald mines across sub-Saharan Africa, manual handheld jackhammers (such as YT24 and YT28 rock drills) are heavily utilized. Robustness is key because tools are often operated without automated stabilizers. Shandong E-Way's forged integral steel rods have optimized flexural elasticity, protecting field operators from kickbacks and extending rod lifespan under manual operating stress.
Humid climates and acidic groundwater accelerate corrosion on metal drill shafts. To prevent premature chemical pitting which leads to mechanical failure points, we offer custom-surface passivation treatments and chromium-plated drill steel variants, preserving structural life in tropical, high-humidity highway excavation and quarrying sites.
As global supply chains face volatility, Shandong E-Way Machine ensures continuity, cost predictability, and rapid distribution.
Shandong is China's core manufacturing hub for mechanical drilling equipment. This geographical placement allows us to leverage a localized ecosystem of raw materials, metal heat-treatment specialists, and deep-sea logistics hubs. Here is how we build competitive advantages for global B2B buyers:
We procure raw steel hollow bars directly from China’s top alloy mills (like Baosteel and Shougang Group). This raw material stability means our chemical formulations remain identical across batches, eliminating variability in hardness and tensile performance.
By integrating robotics into our brazing and shank forging lines, we minimize manual labor costs while raising consistency. These manufacturing efficiencies allow us to pass on significant savings to our distributors without compromising component reliability.
Our facilities are situated near Qingdao and Tianjin Ports. This strategic location translates to lower domestic freight charges, faster customs clearance, and reduced shipping transit times to Europe, North America, and Australia.
Every step of our manufacturing workflow complies with strict ISO 9001 and international safety standards. Explore our modern workshop machinery:
As drilling speeds increase, the materials sciences backing rock drilling tools must evolve in tandem.
Standard 95CrMo steel is fast reaching its structural limits in ultra-deep wells. Shandong E-Way is actively researching nickel-rich alloys with improved elasticity modules to withstand higher pneumatic air pressures without micro-cracking.
Future regulations will require suppliers to demonstrate lower carbon footprints. We are upgrading our heat-treatment lines to natural gas-fired and induction-based systems, reducing direct greenhouse gas emissions from our manufacturing plants by up to 25% by 2026.
Brazing requires exact positioning. We are currently rolling out custom AI-driven optical systems that check the seat positioning of the tungsten carbide chisel bit before heating. This ensures brazing precision within 0.02mm, eliminating premature carbide detachment in the field.
To better support our international distributors, Shandong E-Way is building overseas fulfillment hubs in South America and Western Europe, aiming to shorten regional shipping lead times from weeks to mere days.
Get expert answers to common queries regarding integral drill steels, sourcing, and on-site operation.

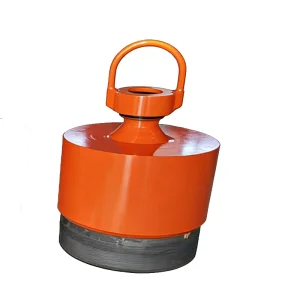

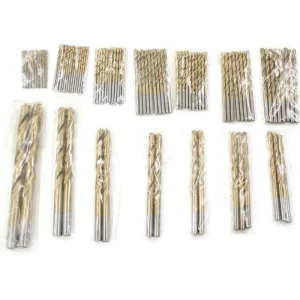

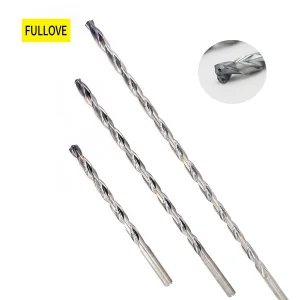

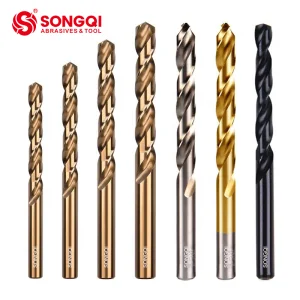

Advanced drilling consumables, specialty step drills, and heavy-duty crossover subs for commercial and industrial contractors.
