Application:

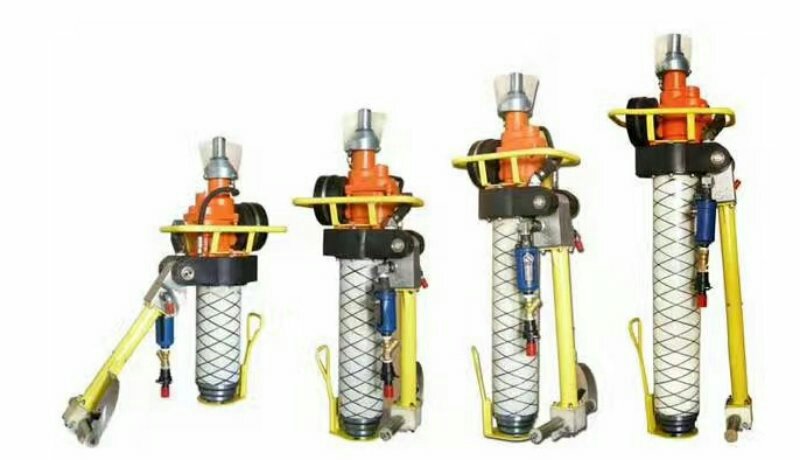

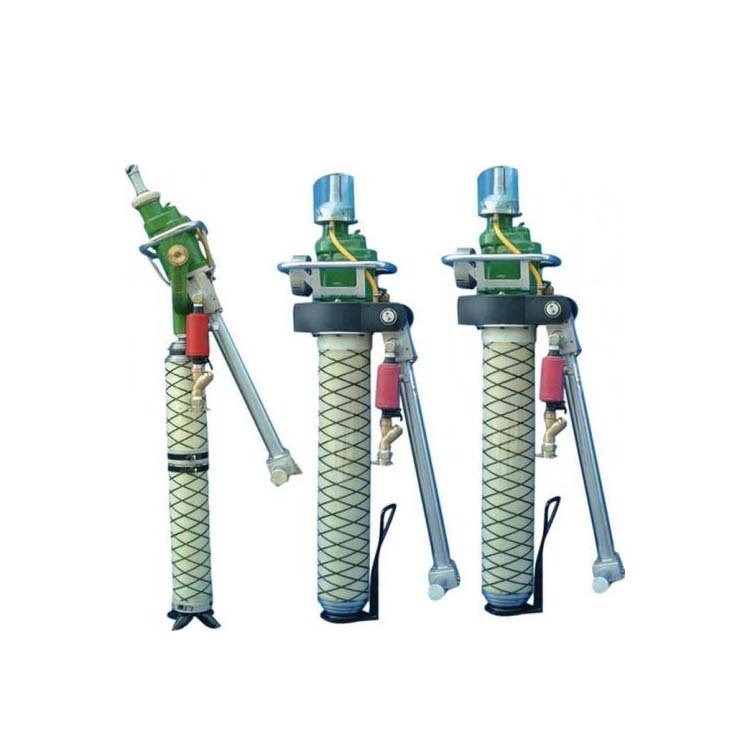

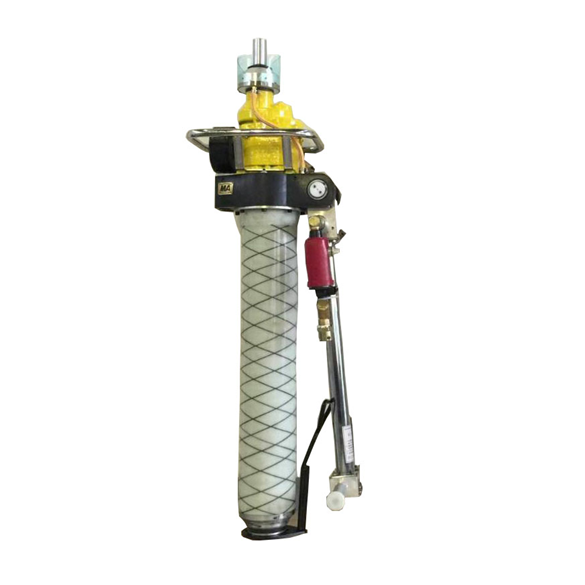

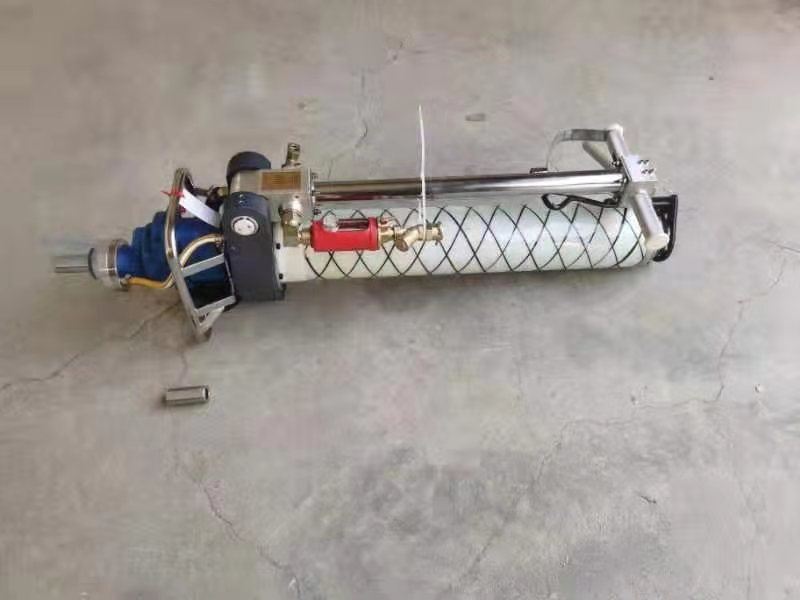

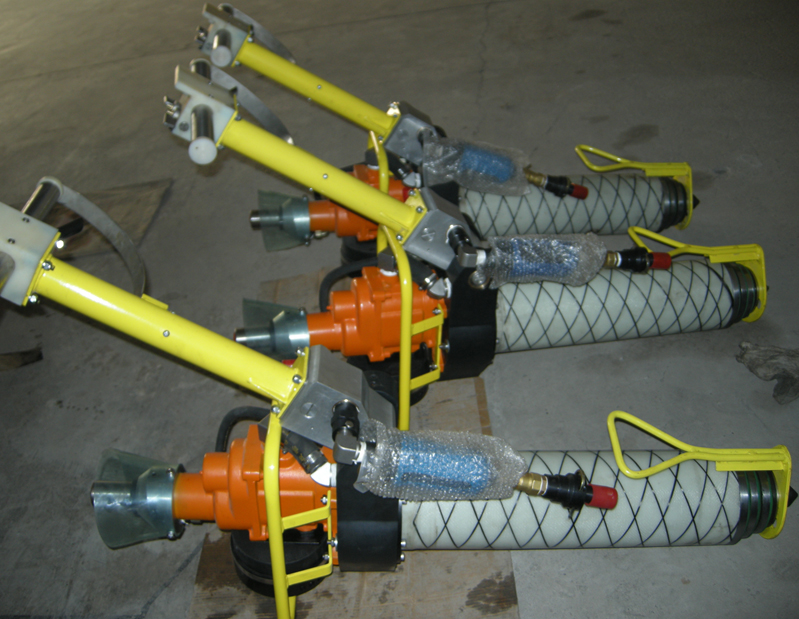

MQT-120/2.7 pneumatic anchor drilling machine Is widely applicable to roadway ( rock hardness ≤ f8), especially applicable to the bolt supporting operation for coal road, both drilling roof bolt hole and drilling anchor hole, but also mixing and installing resin bolt type anchor, anchor, without other equipment. It will achieve a bolt nut installation and tightening once , and achieve the initial anchorage preload requirements.
Characteristics:
small volume, light weight, easy operation, easy maintenance. Gear type of pneumatic motor, stable running, high reliability. New type FRP (Fiber-reinforced plastic) Air leg design, safety and explosion-proof, longer service life.
| Model | Unit | MQT-85/2.0-C | MQT-90/2.1-C | MQT-110/2.5-C | MQT-120/2.7-C | MQT-130/2.8-C | MQTB-80/2.0-C |
|---|---|---|---|---|---|---|---|
| Work Pressure | MPa | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 | 0.4-0.63 |
| Rated Pressure | MPa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Roted Rotated Speed | r/min | 220 | 220 | 220 | 220 | 206 | 240 |
| Rated Rotated Torque | N.m | 85 | 90 | 110 | 120 | 130 | 80 |
| Stall Torque | N.m | 190 | 190 | 210 | 210 | 220 | 185 |
| Non-load Speed | r/min | ≥600 | ≥600 | ≥560 | ≥560 | ≥560 | ≥600 |
| Air Consumption | m³/min | 4 | 4 | 4 | 4.4 | 4.5 | 4 |
| Max. Pulling Force | KN | 8 | 8 | 8 | 8 | 8 | 4 |
| Water Flushing Pressure | MPa | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 | 0.6-1.2 |
| Noise | dB(A) | ≤95 | ≤95 | ≤95 | ≤95 | ≤95 | ≤95 |
| Shank Hex. Size | mm | 19:22 | 19:22 | 19:22 | 19:22 | 19:22 | 19:22 |
| Weight | Kg | 52 | 52 | 55 | 55 | 57 | 46 |
