Product Description

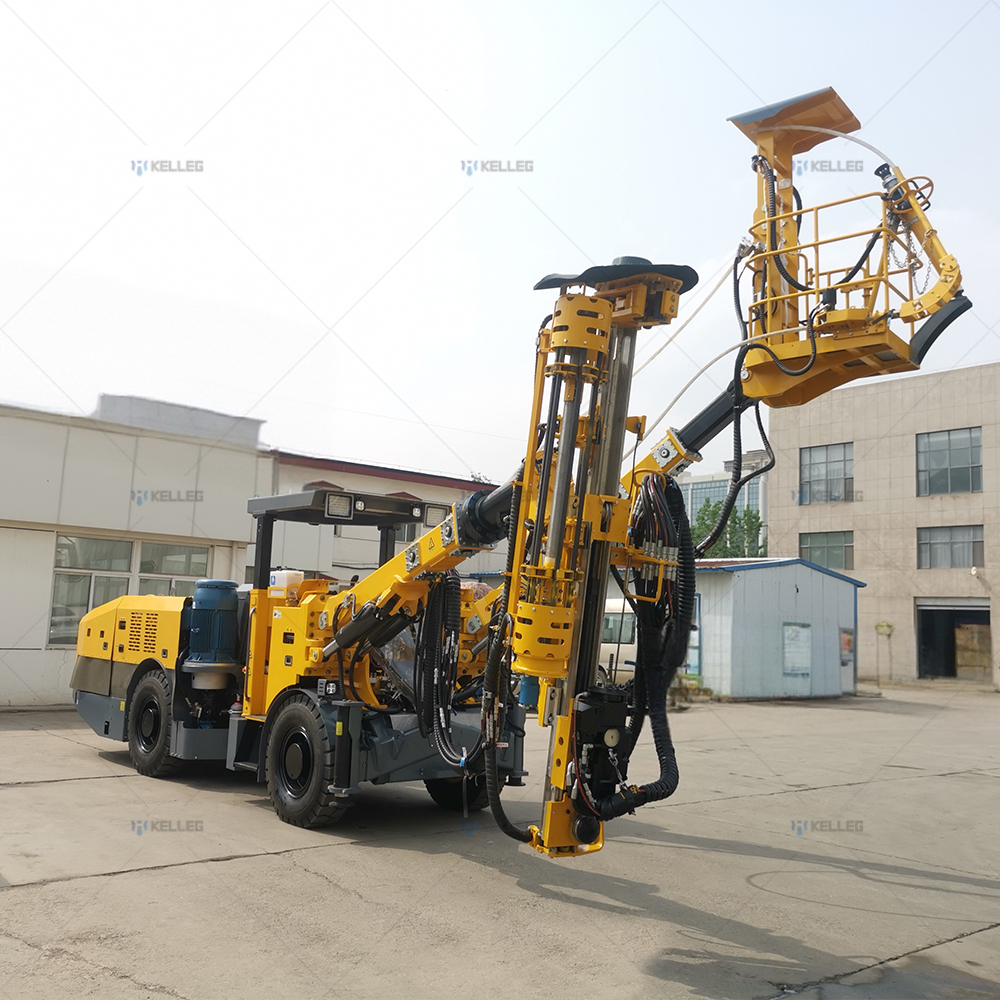

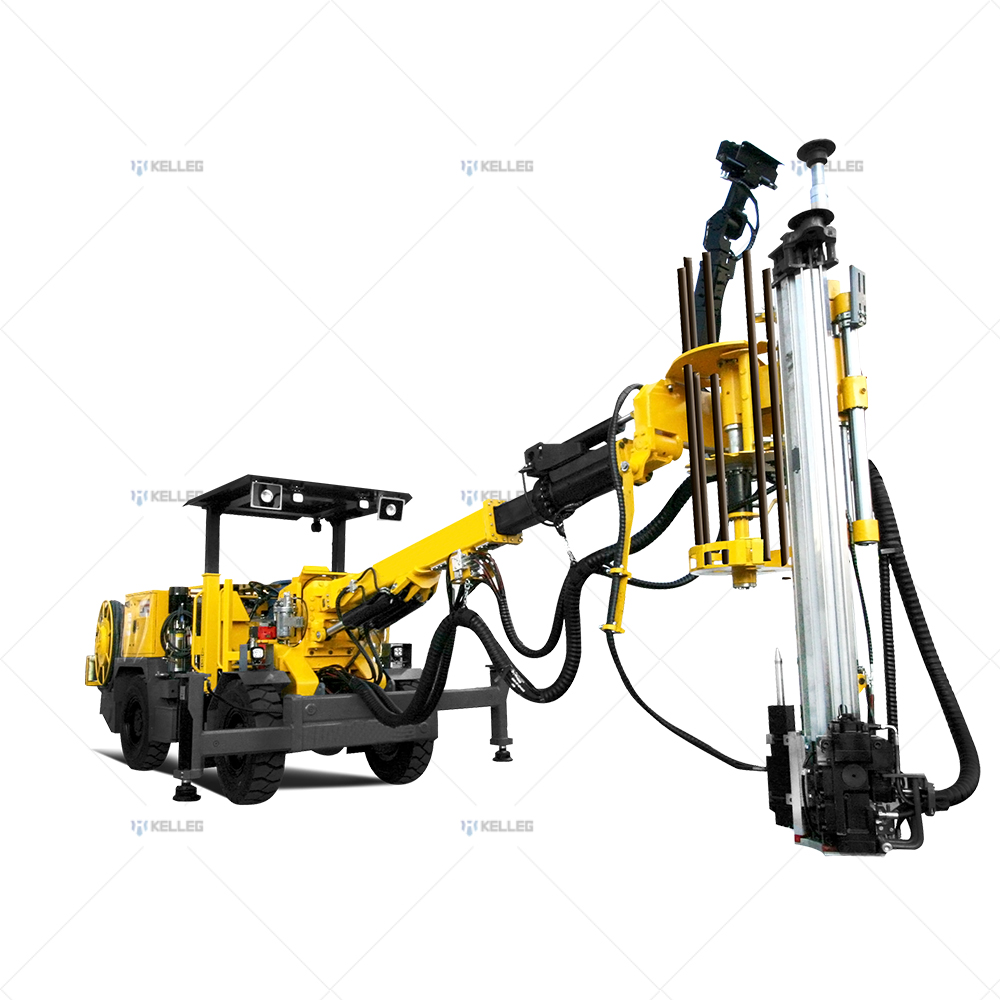

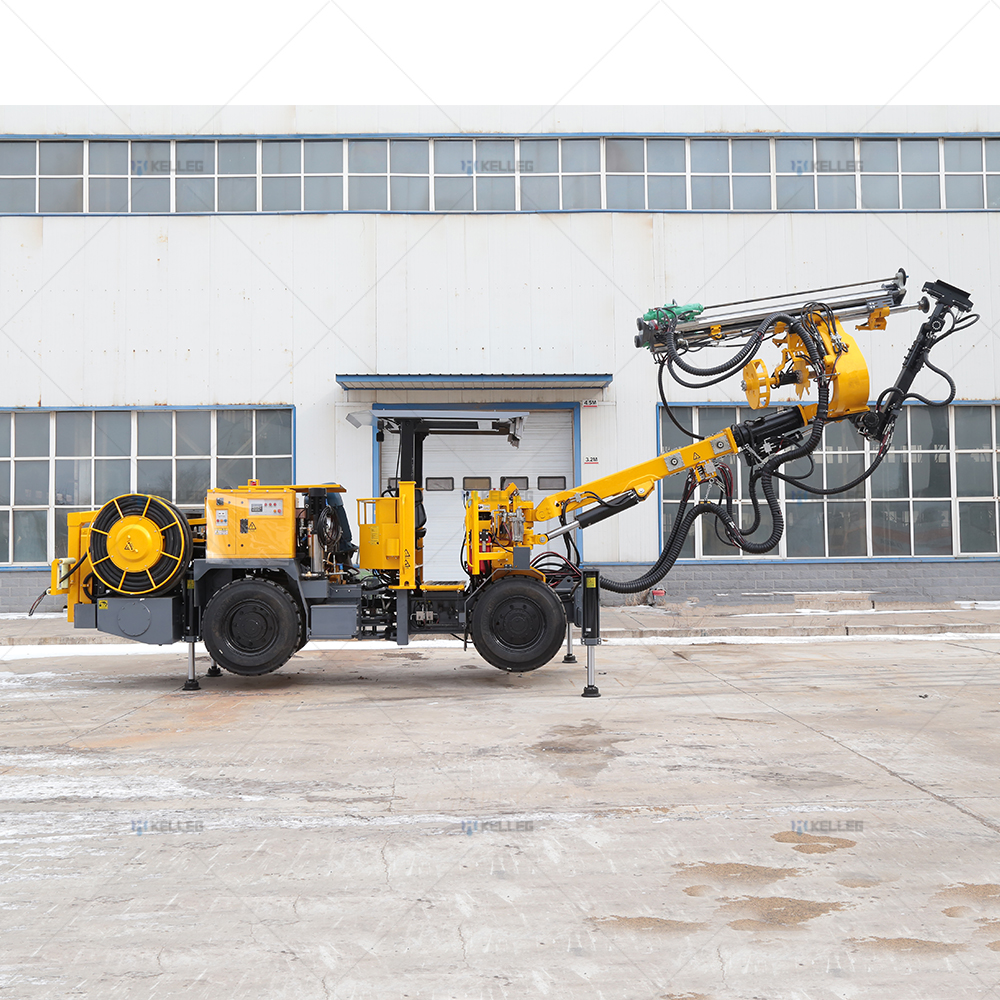

Hydraulic Bolting Jumbo

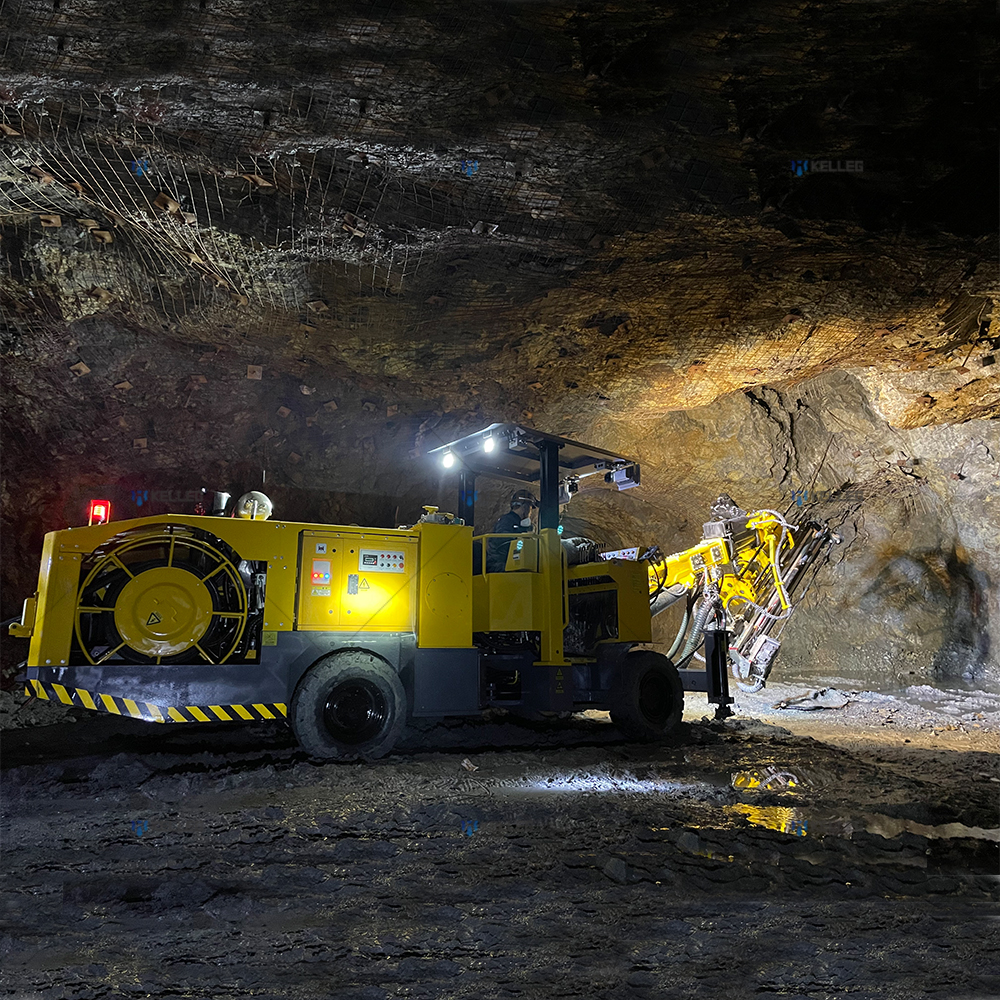

Hydraulic bolting jumbo is specially used for rock bolting in underground mines and tunnels with wall rock of complex structure and badly damaged rock formation. Our main focus is safety and bolt installation quality. Our high performance mining bolter ensures operator safety and comfort in underground works.

The rock bolting jumbo is suitable for the drifts and tunnels with min. section of 2.8x2.8m. It's featured by compact design, small size, low fuel consumption, low noise, high working efficiency. The power type of bolting rig can be easily switched to accommodate different underground works.

Key Mechanisms & Functions

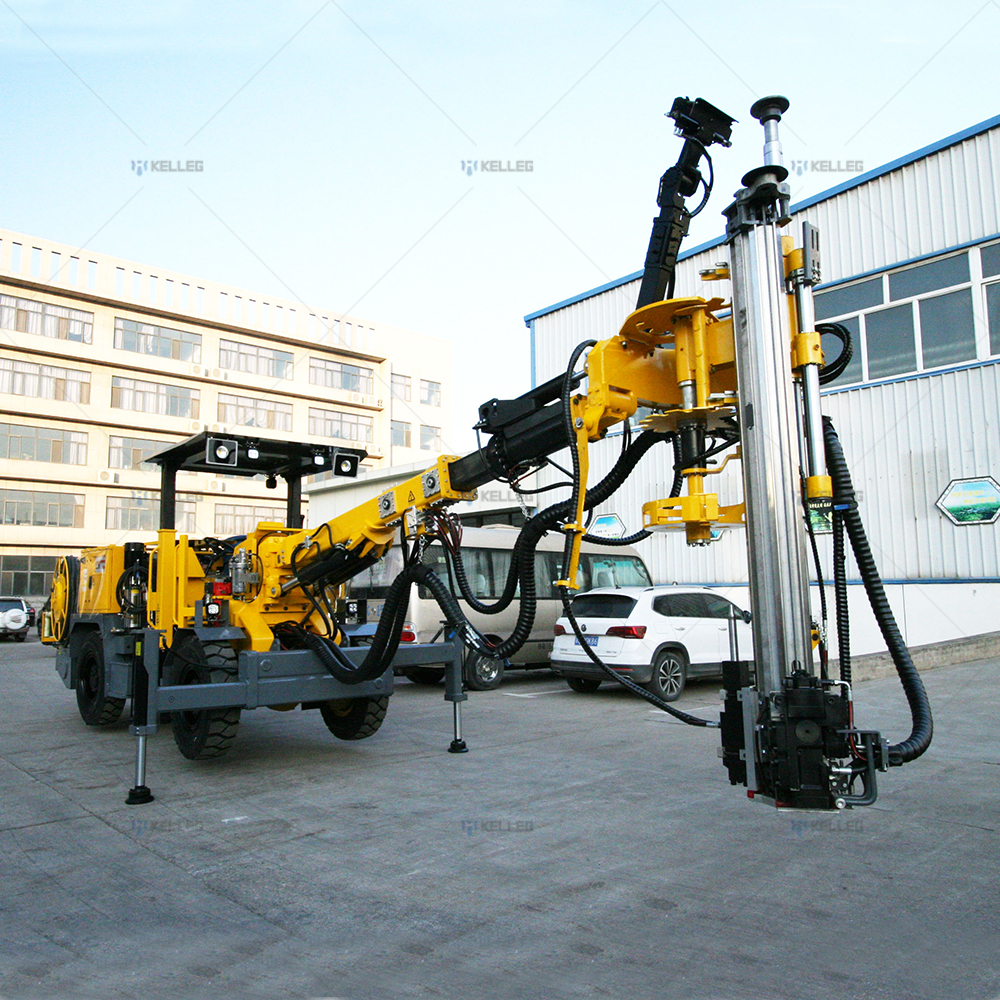

Programmed Automatic Anti-Jamming Function

When a trend of rod jamming happened during drilling, the drifter begins to back with a low percussion. After it is relieved, the jumbo will restart a new collaring with a half percussion to ensure that jamming is overcome.

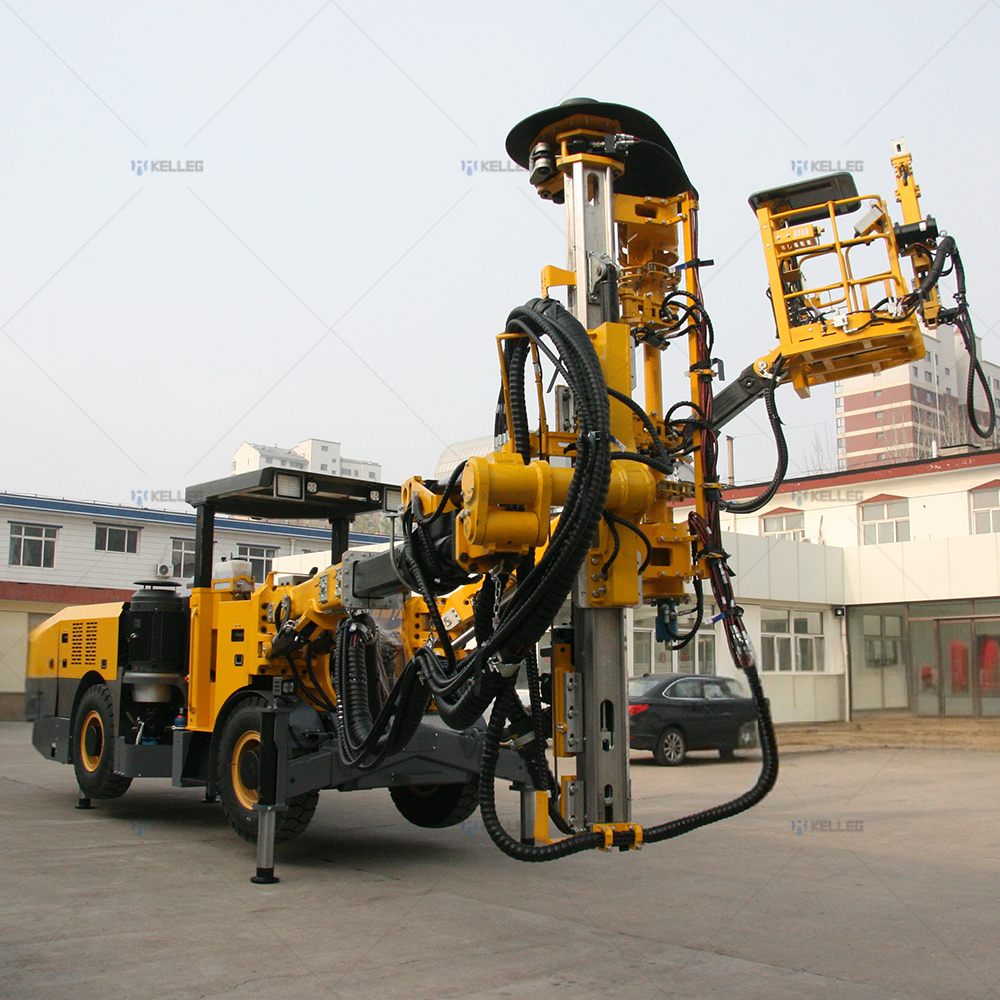

Auto Hanging Mesh Mechanism

The mechanism has five flexible moving pairs, which can realize taking, grasping, and hanging the mesh without any dead angle. The telescopic cylinder is designed for a wider range of work and can grab up to 100kg of mesh.

Bolt Changer Mechanism

The bolt changer can store pipe seam bolts or resin bolts, with quantity up to 10-12, and length covers 1.5-3m. Its rotary clamping and delivering bolt mode features simple structure, easy operation and maintenance, firm clamping, and accurate bolt delivery.

Technical Parameters

Hydraulic Bolting Jumbo	HT91/2 (Two booms)	HT91	HT92
Cross section suitable	3800 x 3800 — 6000 x 6000 mm	3500 x 3500 — 6000 x 6000 mm	3000 x 3000 — 5000 x 5000 mm

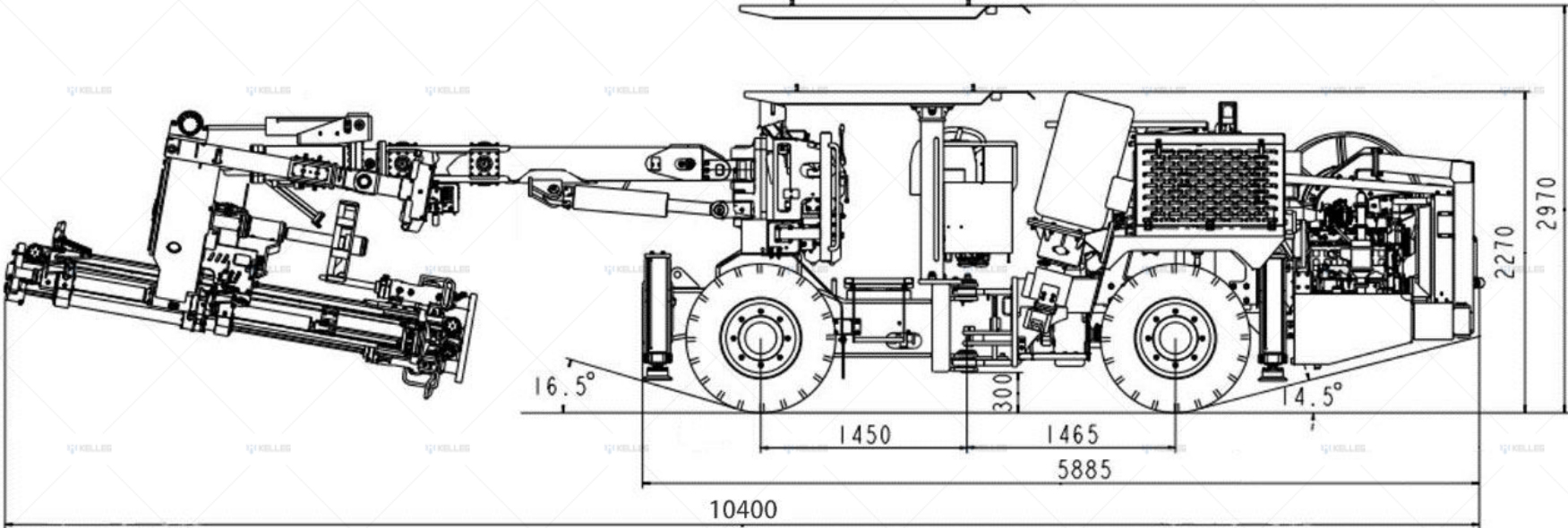

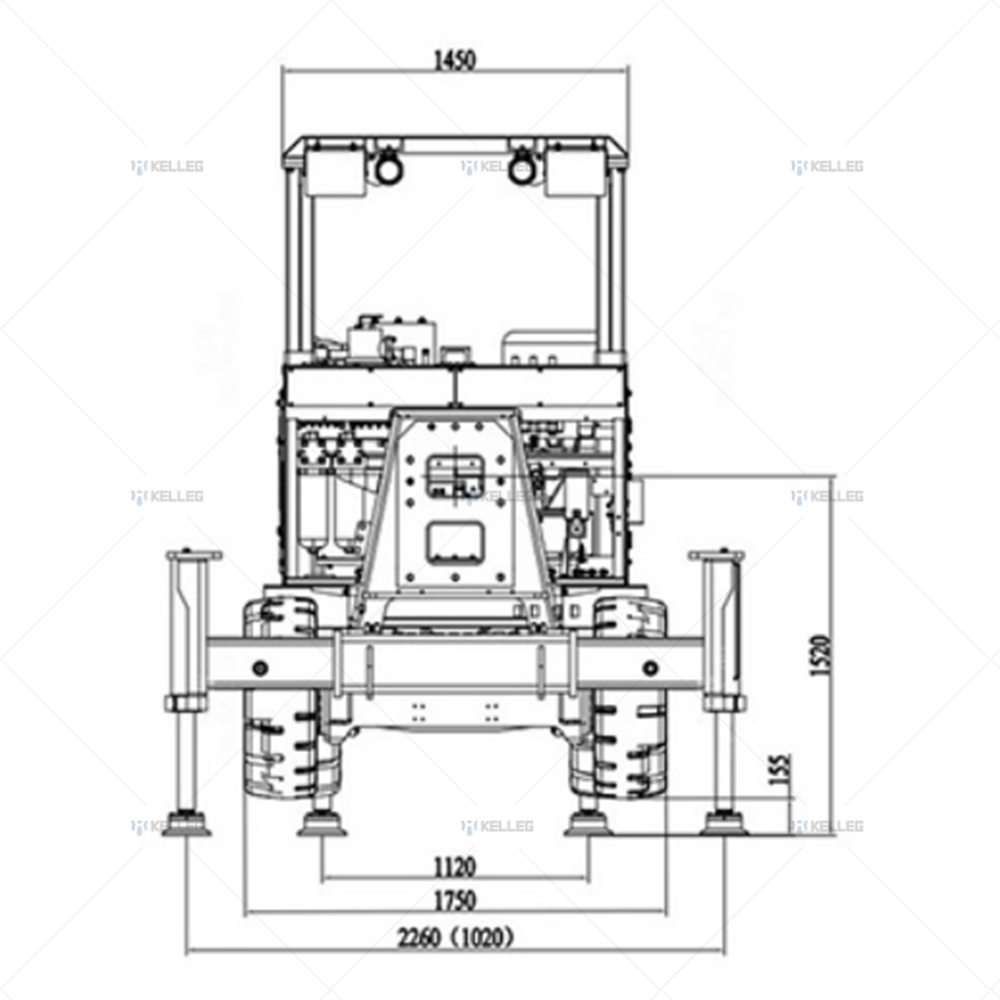

Dimensions	10000 x 1750 x 2270(3140) mm	10400 x 1850 x 2270(2970) mm	10000 x 1750 x 2070(2980) mm
Ground clearance	280 mm	300 mm	310 mm
Total weight	150000 + 500 Kg	165000 + 500 Kg	135000 + 500 Kg

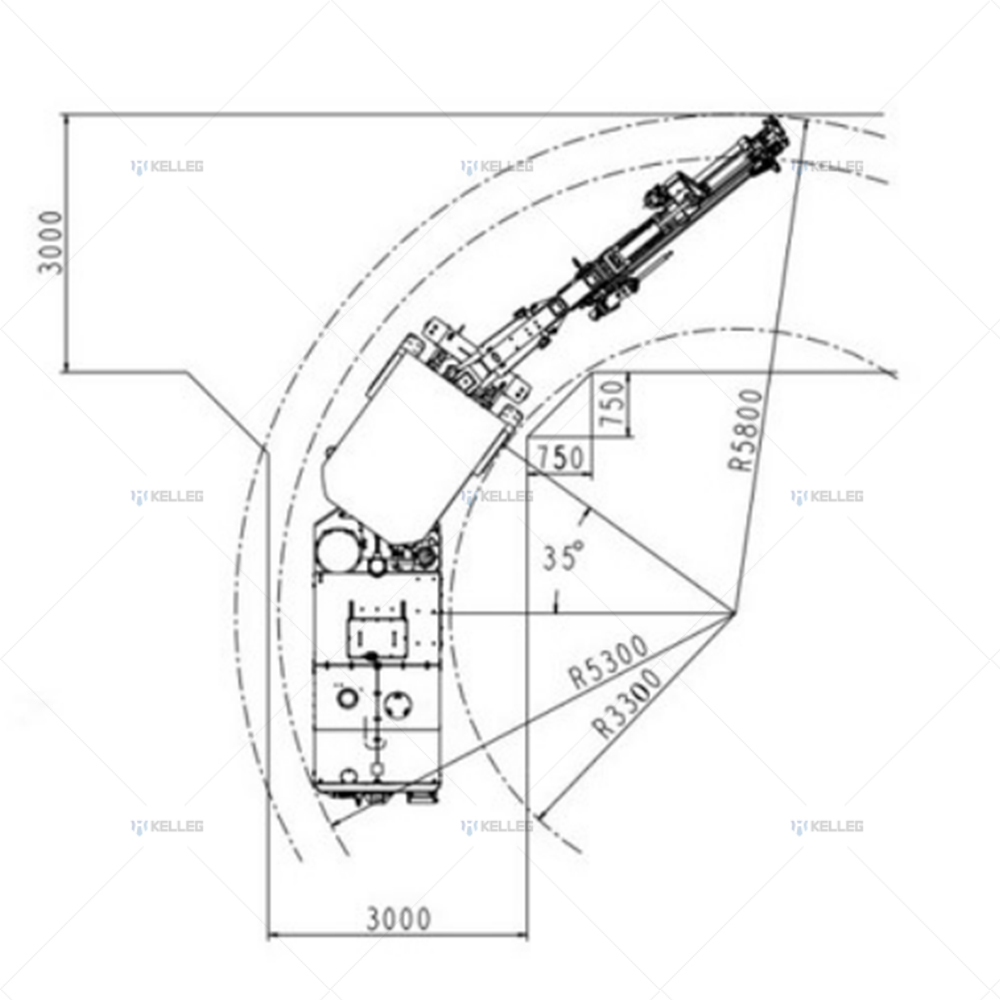

Turning radius	Inner 4000mm, Outer 6300mm	Inner 3500mm, Outer 6200mm	Inner 3300mm, Outer 5800mm
Total power	65.5 kW	65.5 kW	65.5 kW
Main electric motor	55 kW	55 kW	55 kW
Voltage (optional)	380 V	380 V	380 V
Hydraulic Drifter
Model	RC1200	HC25	HC28
Percussion power	14kW	8kW	10kW
Percussion frequency	100 HZ	65 HZ	53 HZ
Impact pressure	180 bar (max)	150 bar (max)	160 bar (max)
Rotation system	Independent rotation	Independent rotation	Independent rotation
Shank	R32mm	R32mm	R32mm
Hole size	φ32-φ43mm	φ32-φ43mm	φ32-φ43mm
Feed
Corresponding Drifter	RC1200	HC25	HC28
Length	3080mm	3210mm	3305mm
Drill steel length	2475mm	2475mm	2475mm
Pipe seam bolt	2000mm	2000mm	2000mm
Resin bolting	2200mm	2200mm	2200mm
Hole depth	2265mm	2265mm	2265mm
Bolt Storage
Bolt type	Pipe seam bolt/Resin bolt
Bolt storage capacity	10 (Square ≤ 150mm)
Bolt length	1500-2500mm

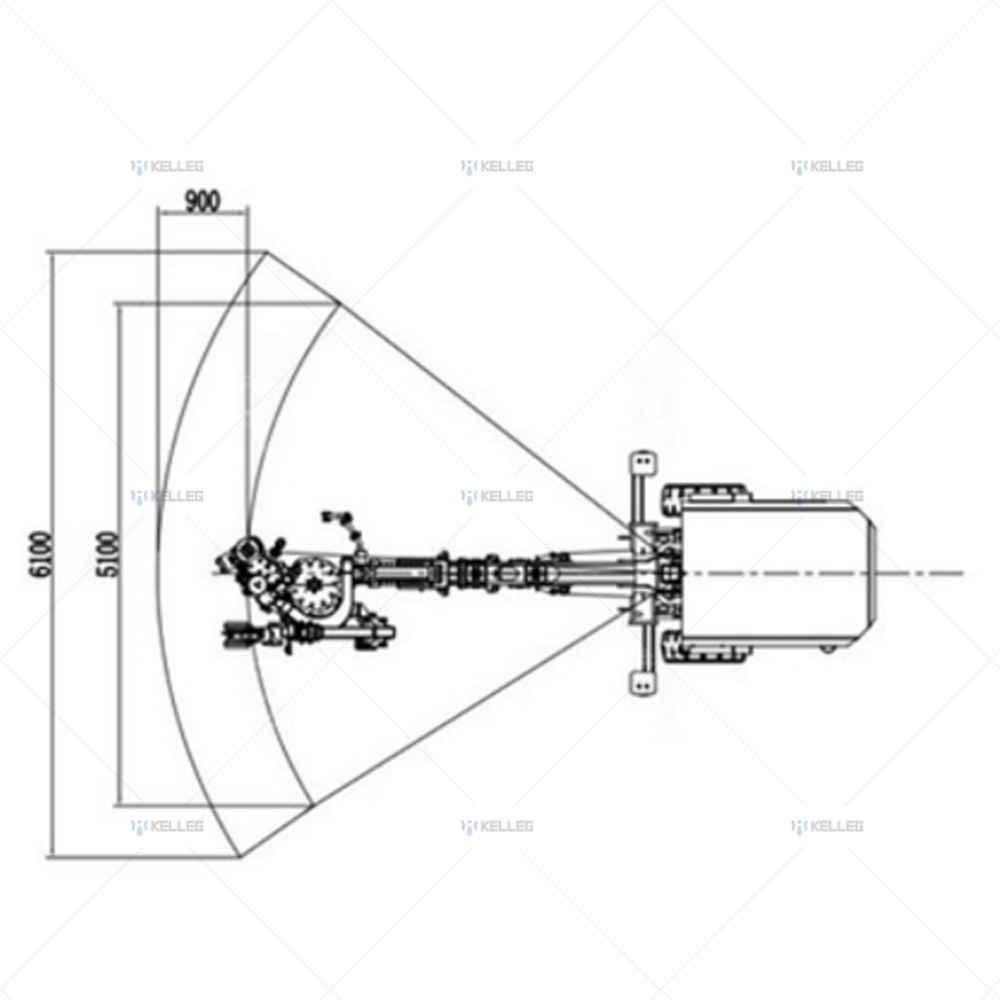

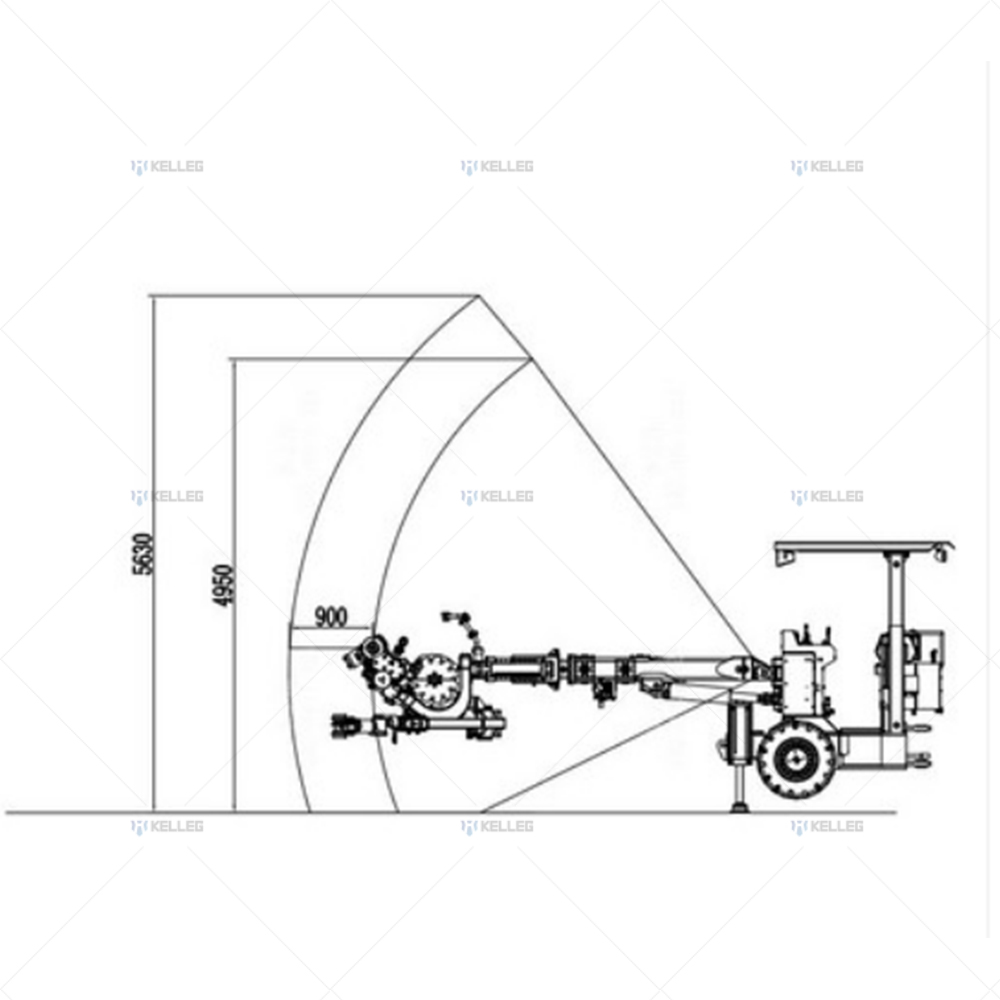

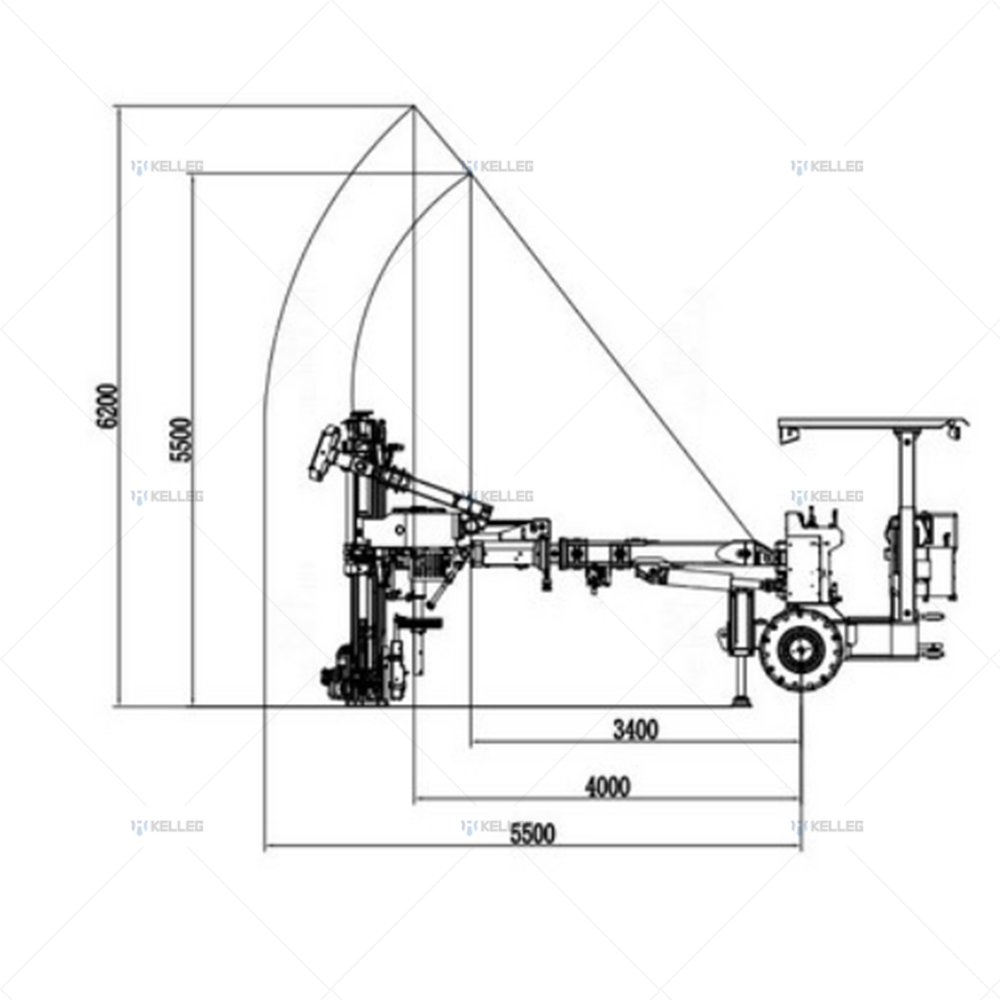

Boom
Compensation stroke	480mm	480mm	480mm
Length of extension	1250mm	1250mm	900mm
Tilting angle	+45°/-16°	+50°/-30°	+50°/-30°
Swing angle	Left 46° right 45°	±35°	±35°
Mesh Grasping Boom
1st boom Tilting angle	0-60°	Manipulator lifting	180°
2nd boom Tilting angle	+60°/-68°	Manipulator extension	800mm
2nd boom extension	1500mm	Manipulator rotating/swing	180°
Max. mesh weight	50 kg	Max. mesh weight	50 kg
Chassis
Engine	Cummins diesel engine	YTO diesel engine	Yanmar diesel engine
Power	81 kW (2400r/min)	73.6 kW (2200r/min)	53.7kW (2100r/min)
Torque	480 Nm (1600r/min)	330 Nm	308 Nm (1600r/min)
Fuel tank capacity	54L	120L	55L

Application Range

The rock bolting jumbo is suitable for the drifts and tunnels with a minimum section of 2.8x2.8m. It features a compact design, small overall size, low fuel consumption, low noise levels, and exceptionally high working efficiency.

Frequently Asked Questions

What is the primary application of the hydraulic bolting jumbo?

It is designed for rock bolting in underground mines and tunnels, particularly in formations with complex wall rock structures and badly damaged rock conditions. It is suitable for drifts and tunnels with a minimum section of 2.8x2.8m.

How does the programmed automatic anti-jamming function work?

If rod jamming is detected during drilling, the drifter automatically reverses using a low percussion setting. Once the jam is cleared, the system restarts collaring with half percussion to safely bypass the obstruction.

What are the specifications of the bolt changer mechanism?

The bolt changer can hold between 10 to 12 pipe seam or resin bolts with lengths ranging from 1.5 to 3.0 meters. It utilizes a rotary clamping system that provides accurate delivery and firm clamping.

What engine options are available for these models?

The bolting jumbos offer multiple diesel engine setups: Cummins engines for the HT91/2 model, YTO engines for the HT91 model, and Yanmar engines for the HT92 model.

What is the capacity of the mesh grasping boom?

The auto hanging mesh mechanism is designed to handle up to 50kg to 100kg depending on configuration. It features five flexible moving pairs to achieve grasping and hanging operations without dead angles.
