1 / 4
| SS Part Number (Product Name x L1) | SUS Part Number (Product Name x L1) | B (mm) | Weight (g) |
|---|---|---|---|
| PAW-16 | - | 24.5 | 155 |
| PAW-20 | - | 30.5 | 150 |

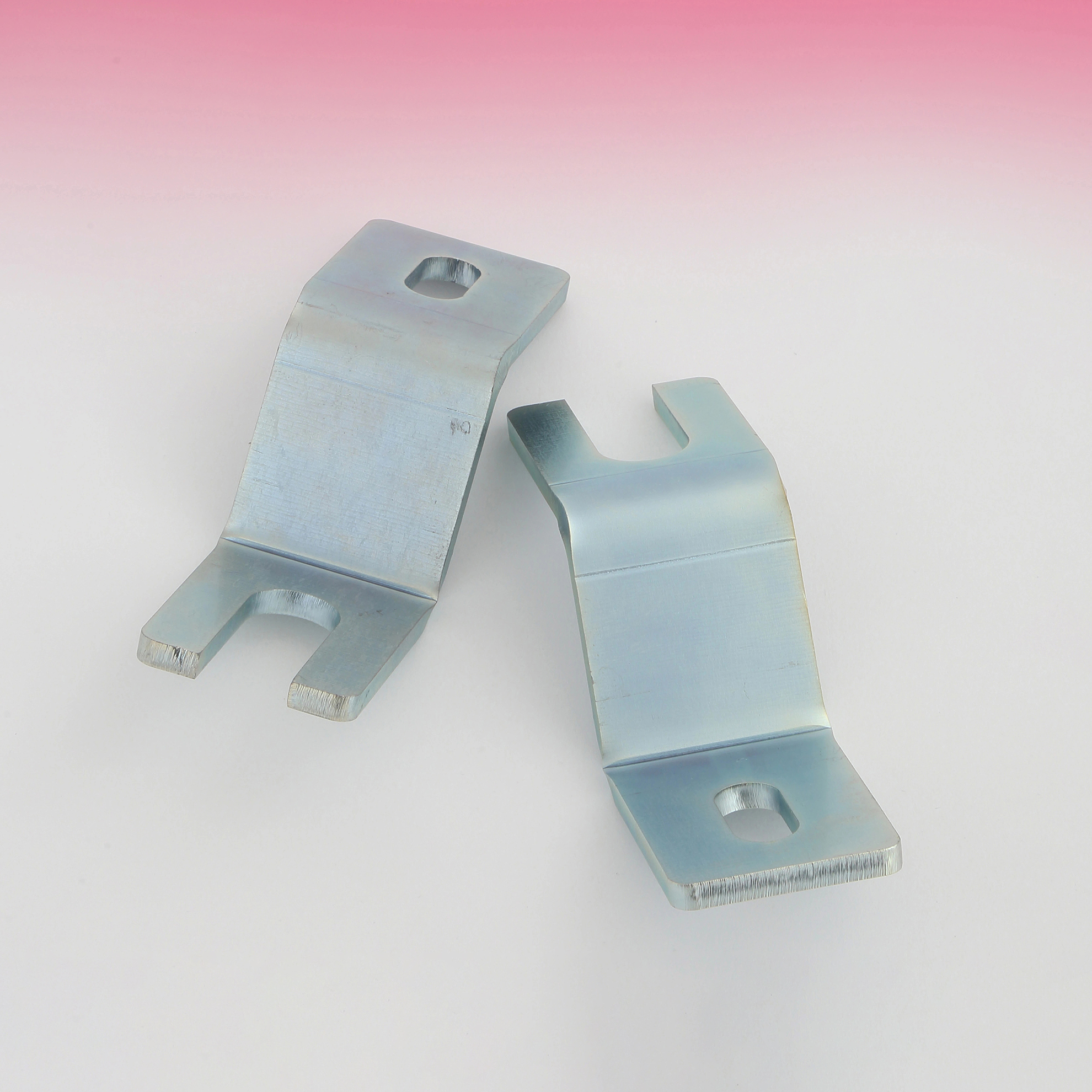

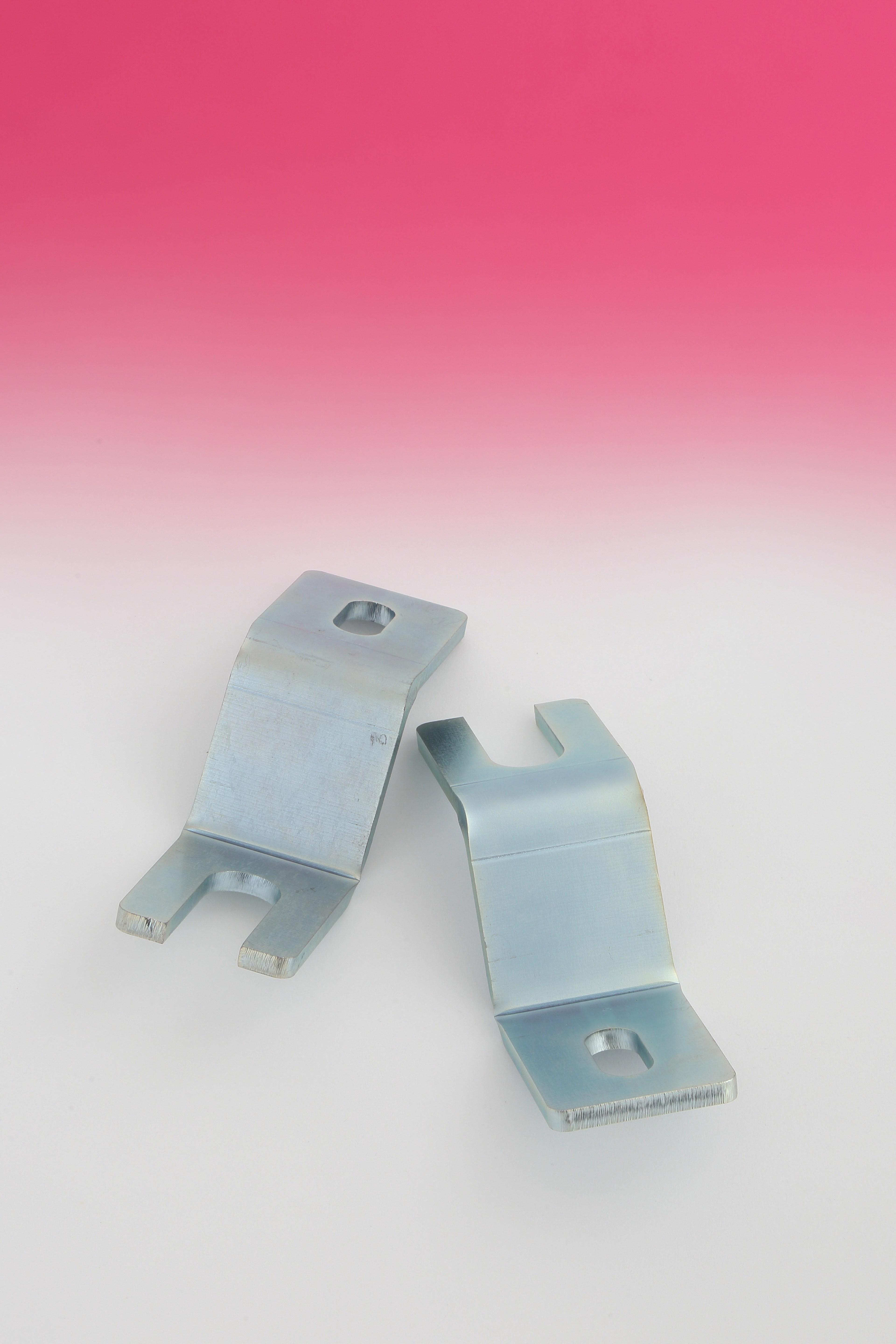

The PAW (Plate Anchor Wide) anchor plate is designed to be compatible with both the HW series and the HW2 series leveling bolts.
The notch of the foot fixing bracket is precisely sized to match the width across flats of various bolt hex heads for a secure fit.

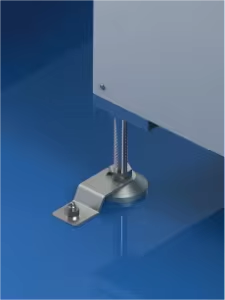

Push the bracket in until the notched section makes contact with the hex portion of the bolt, and then secure it in place with an anchor bolt.
It is highly suitable for preventing the adjustment bolt from shifting or moving due to vibrations or other structural movements.
A 14 mm hole is provided for an M12 anchor bolt. We highly recommend using an M12 × 70 anchor bolt for optimal stabilization.

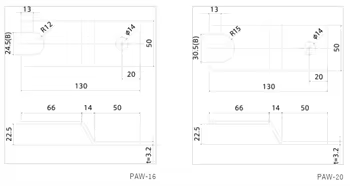

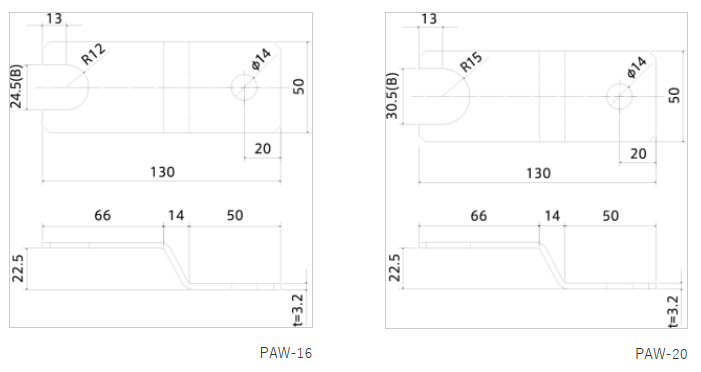

The PAW-16 has a B dimension of 24.5 mm and weighs 155 g, while the PAW-20 has a B dimension of 30.5 mm and weighs 150 g.
