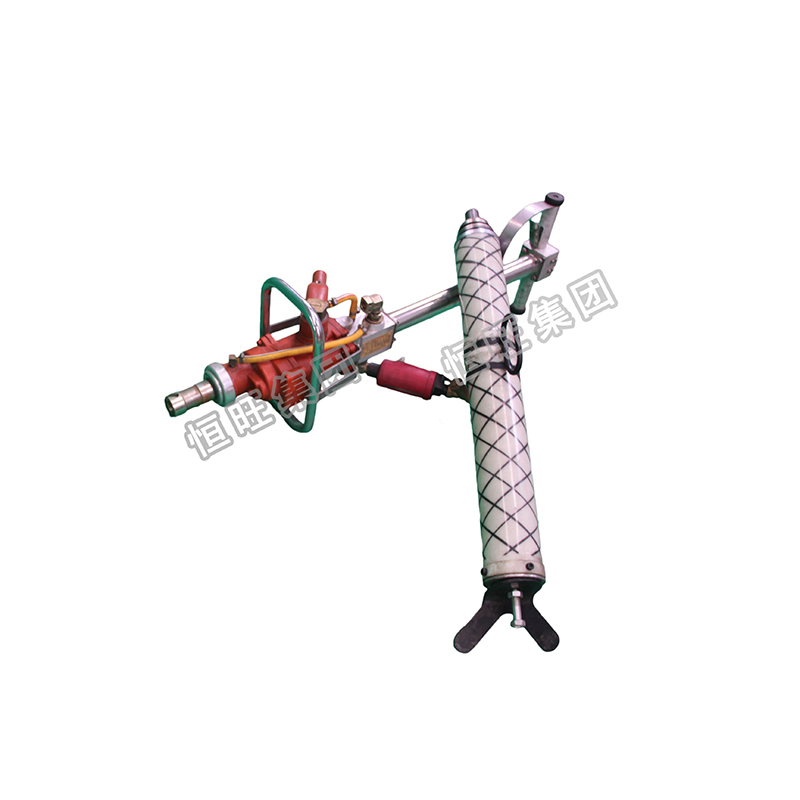

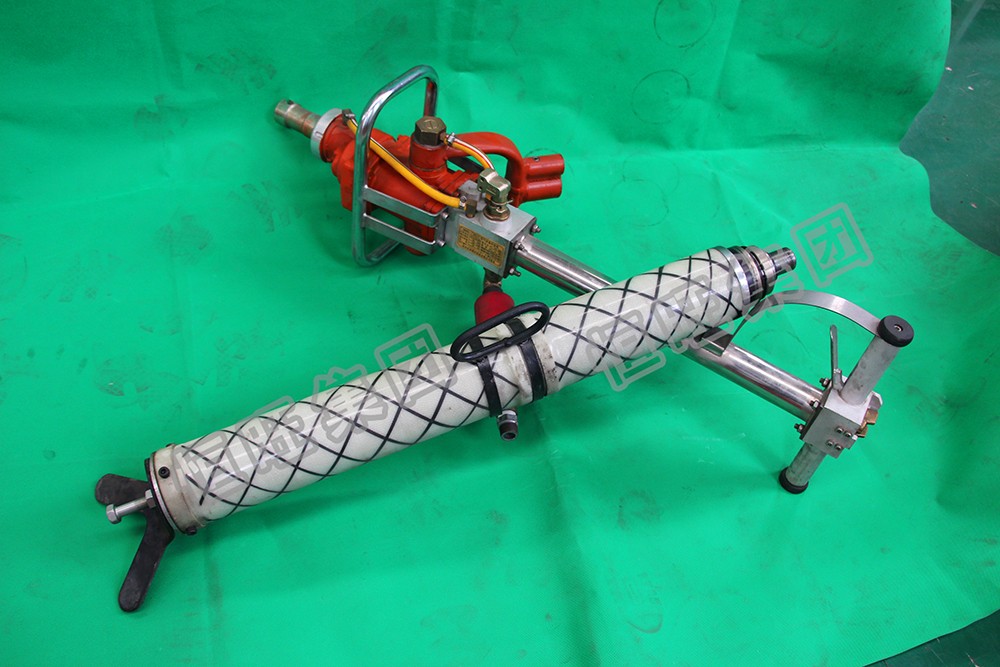

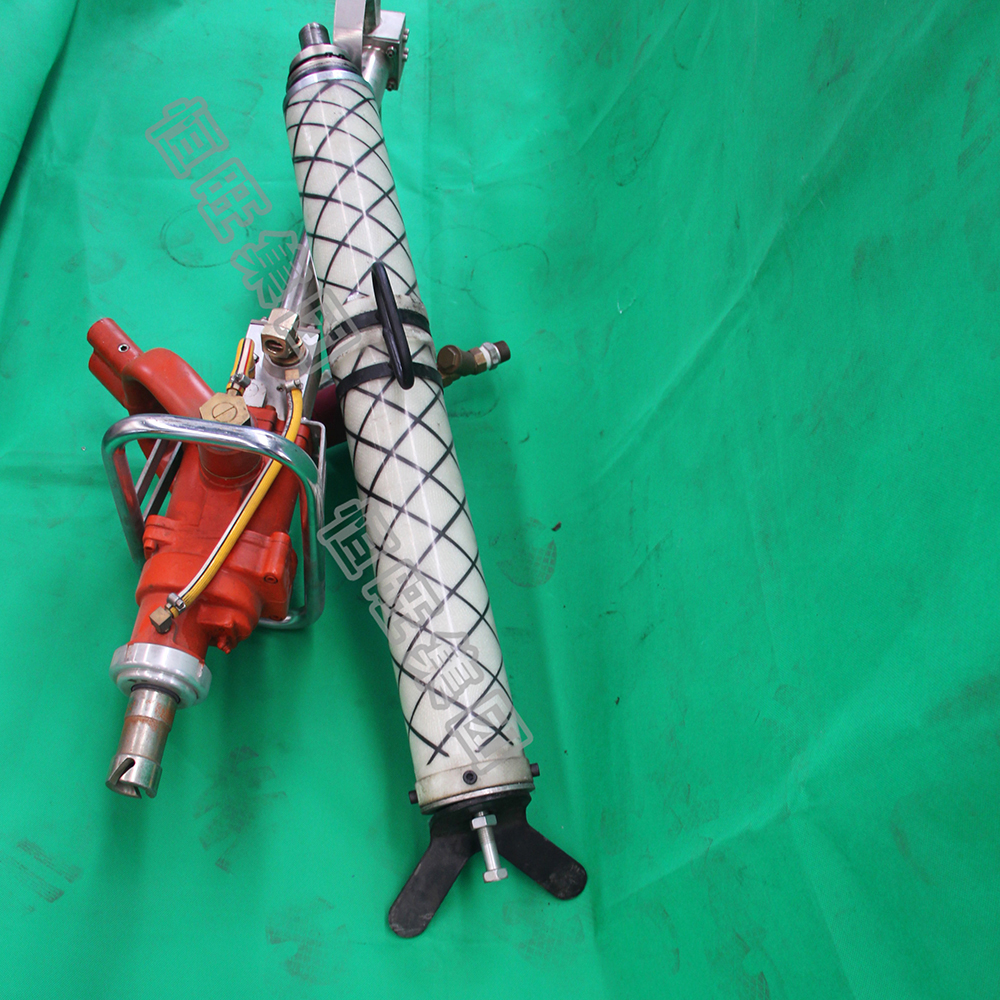

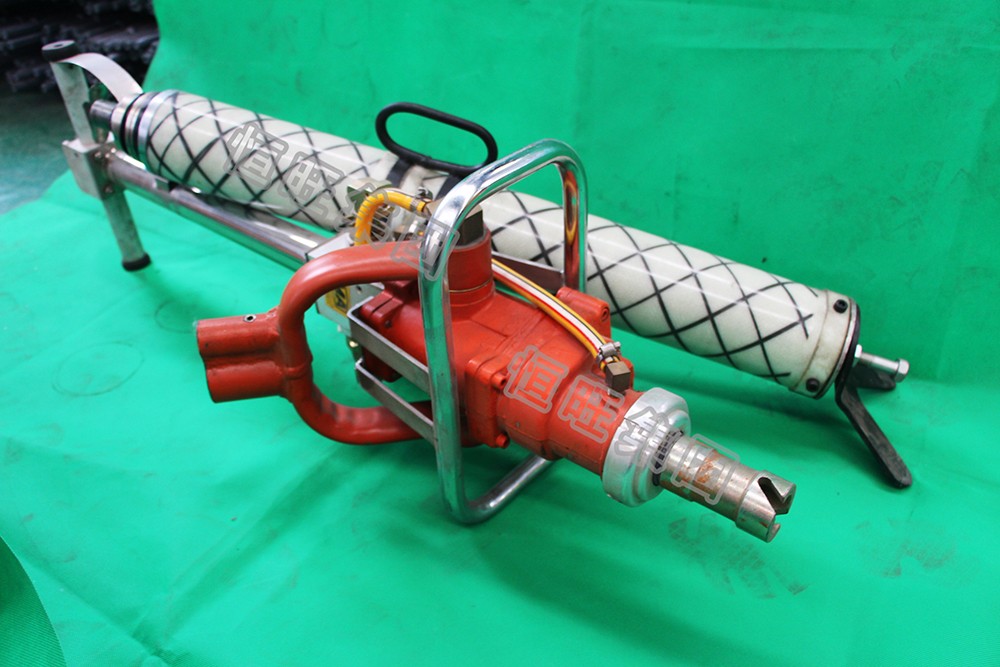

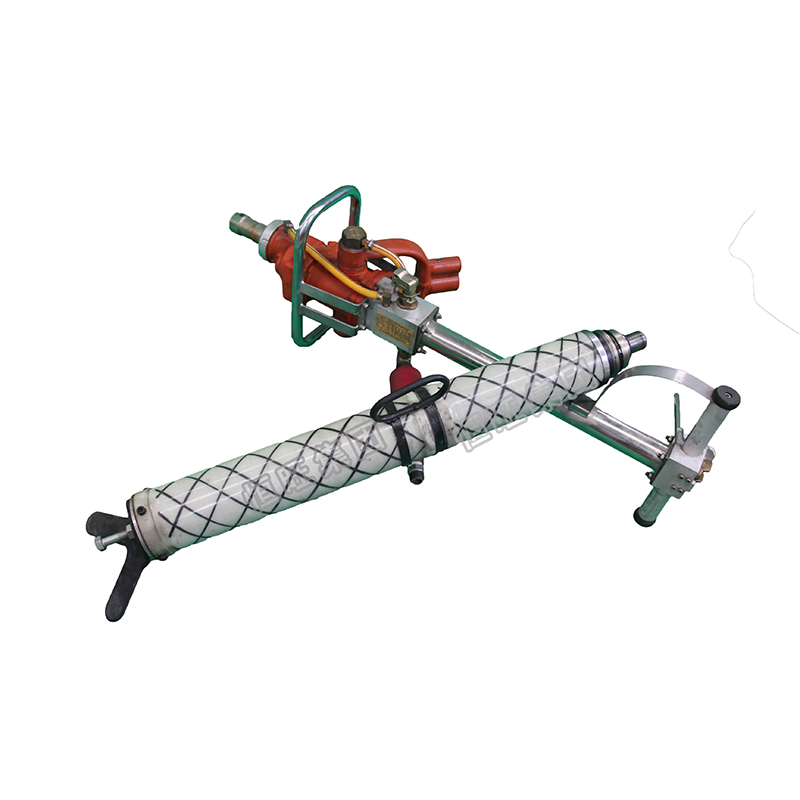

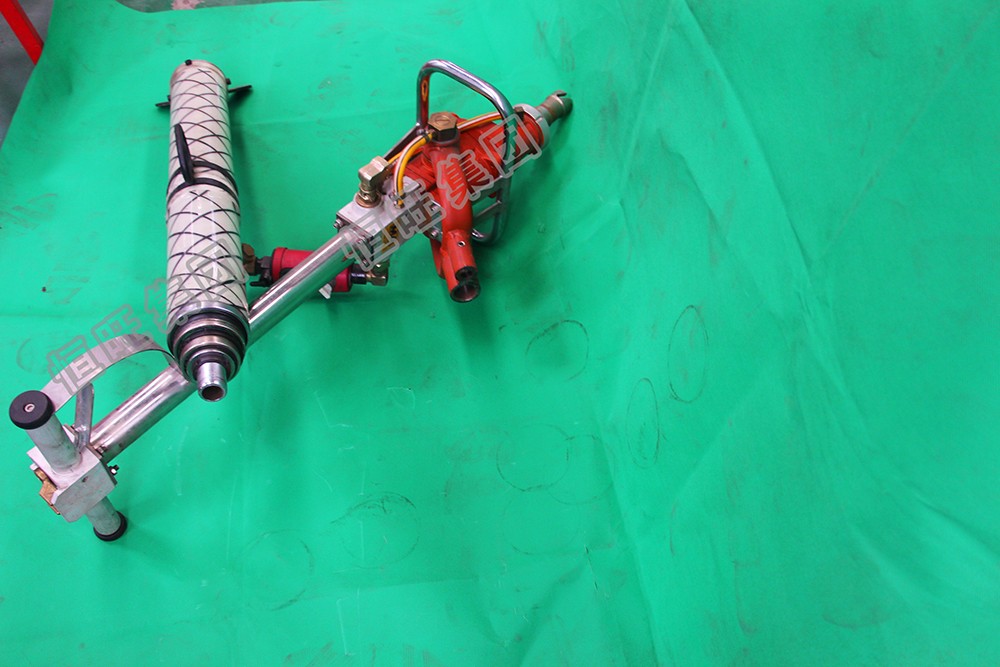

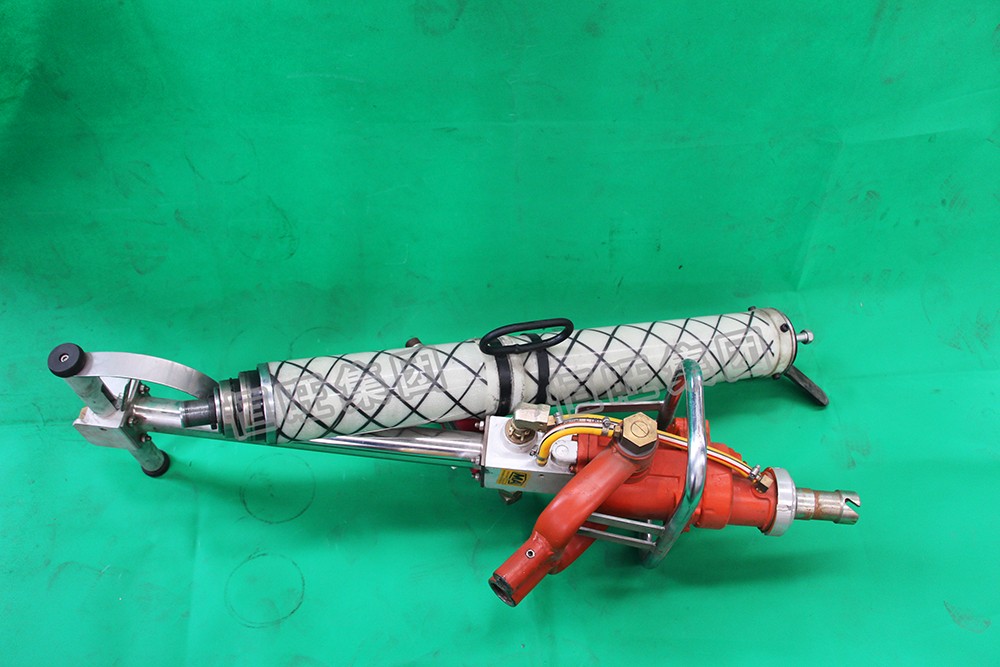

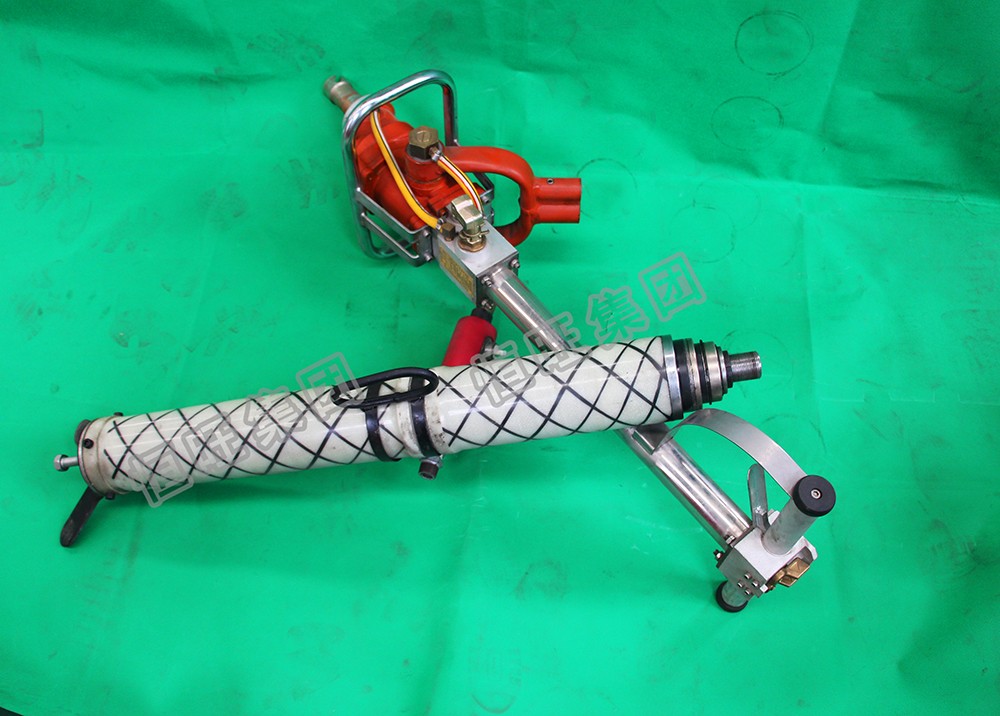

| Technical data of Pneumatic anchor drilling machine | ||||
|---|---|---|---|---|

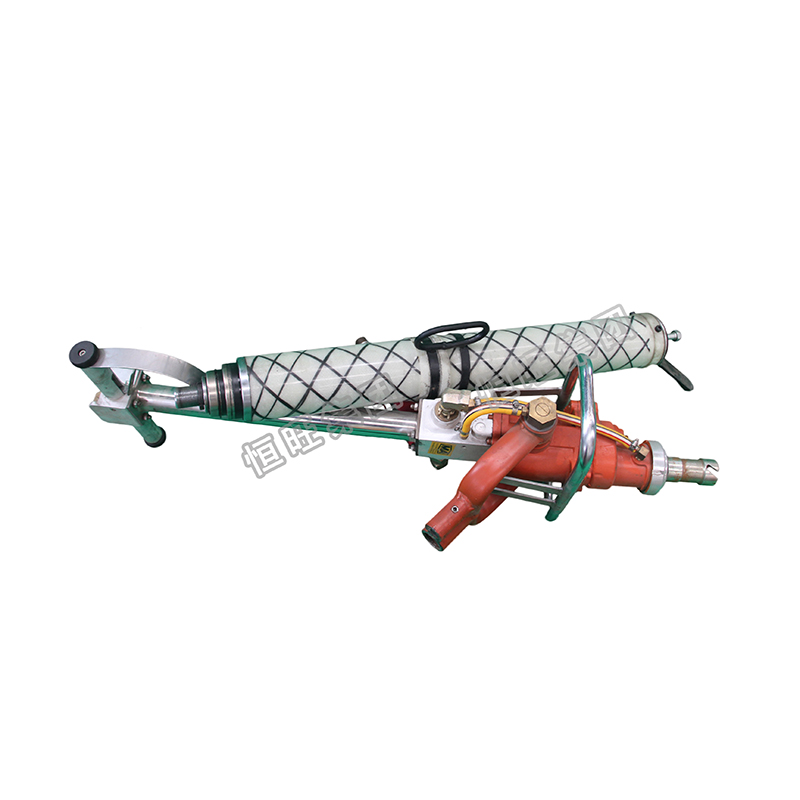

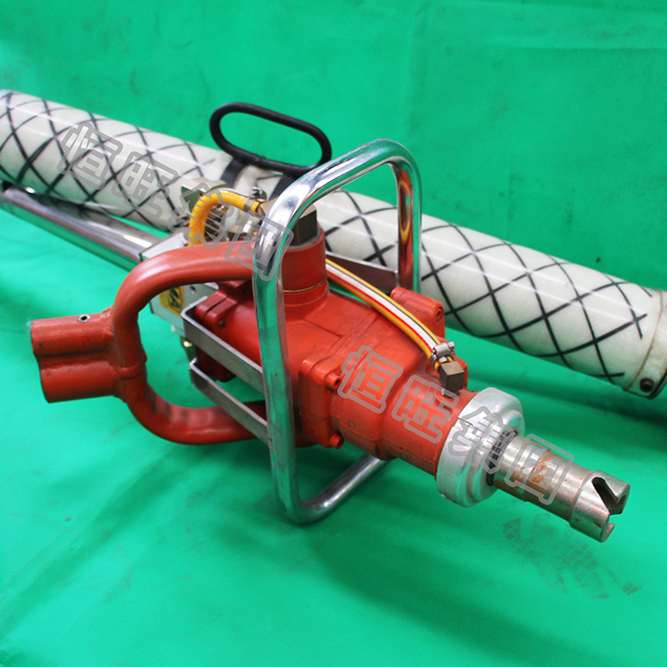

| Item | MQT-100/3.1 | MQT-110/2.8 | MQT-120/3.0 | MQT-130/3.2 |
| SUITABLE PRESSURE RANGE (MPa) | 0.4 -- 0.63 | 0.4 -- 0.63 | 0.4 -- 0.63 | 0.4 -- 0.63 |
| RATED PRESSURE (MPa) | 0.5 | 0.5 | 0.5 | 0.5 |
| Rated torque (N.m) | ≥100 | ≥110 | ≥120 | ≥130 |
| RATED ROTATE SPEED (r/min) | 280 | 240 | 240 | 240 |
| MAX. OUTPUT POWER (kw) | 3.1 | 2.8 | 3.0 | 3.2 |
| (kw) | 3.1 | 2.8 | 3 | 3.2 |
| IDLE ROTATE SPEED (r/min) | 900 | 700 | 700 | 700 |
| STALL TORQUE (N.m) | ≥180 | ≥230 | ≥240 | ≥240 |
| MAX.LOADING TORQUE (N.m) | 170 | 220 | 230 | 230 |
| Air consumption (m3/min) | 3.8 | 3.6 | 3.8 | 4 |
| NOISE LEVEL (dB(A)) | <90 | <90 | <90 | <90 |
| Max. Height of the machine (mm) | 3614 | 3600 | 3600 | 3600 |
| Min. Height of the machine(mm) | 1451 | 1437 | 1437 | 1437 |
| Machine weight(kg) | 49 | 50 | 52 | 56 |
