5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in
5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in
5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in
5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in
5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in
1 / 5
5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in
5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in
5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in
5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in
5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in

5/8" SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in

Send Inquiry

Product Description

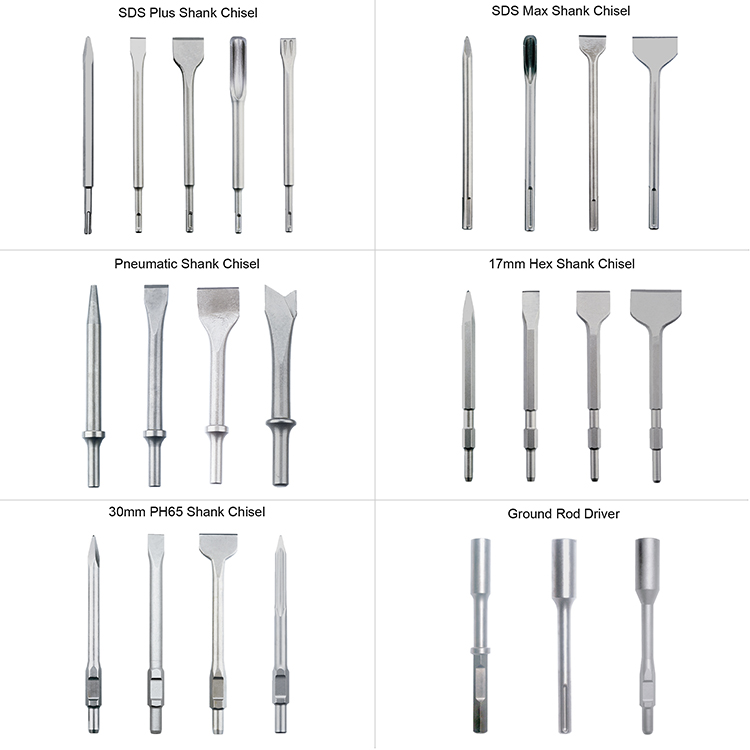

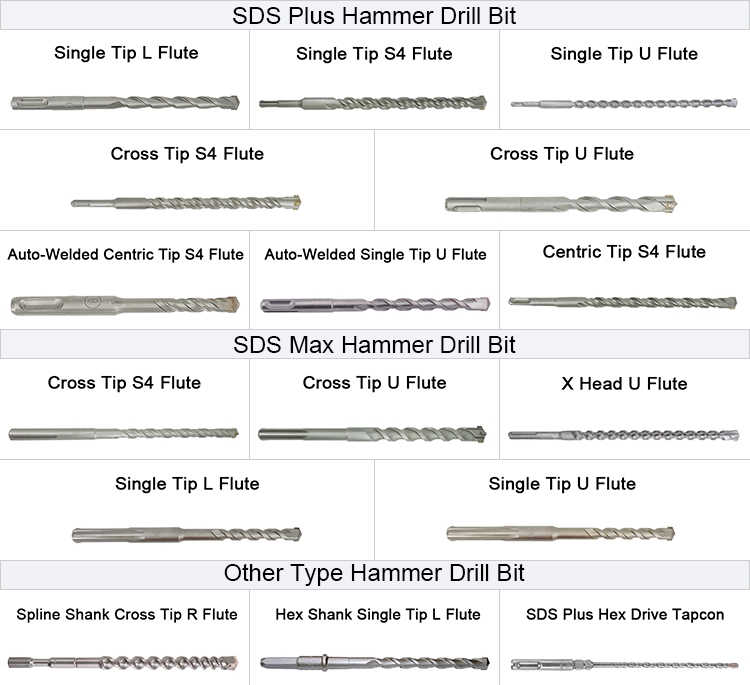

Masonry Tools Guide
Masonry Tools Guide
Product Description

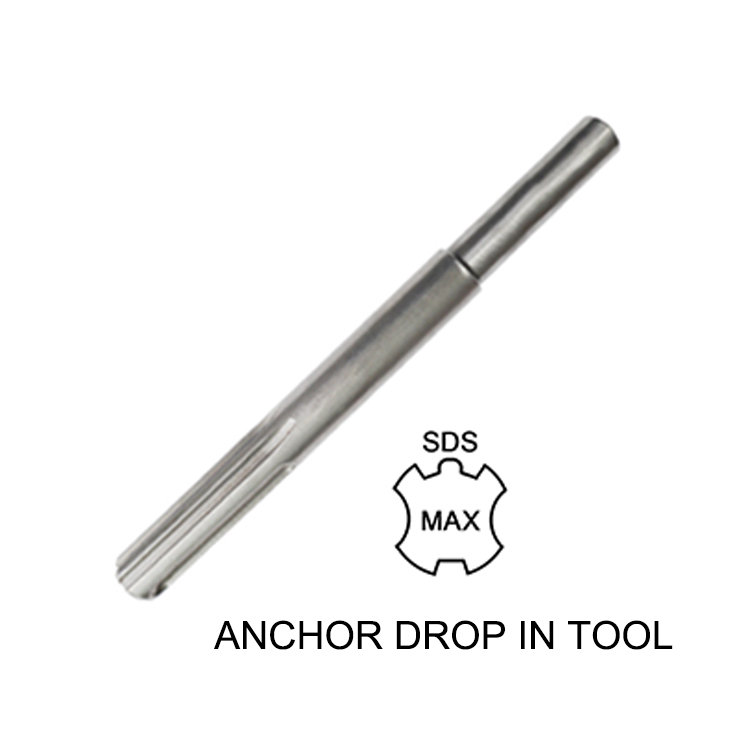

Product Photos

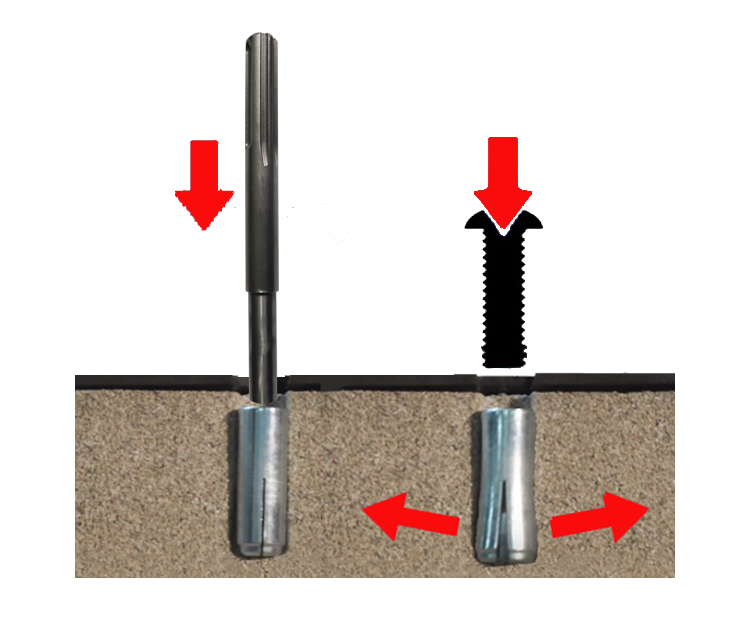

5/8 Inch SDS Max Shank Auto Drop in Anchor Setting Tool for Bolt Drop in 5/8 Inch SDS Max Shank Auto Drop in Anchor Setting Tool Details
Product Options
More Choice For You: Home > Drill Bit > Masonry Drill Bit & Chisel > Ground Rod Driver

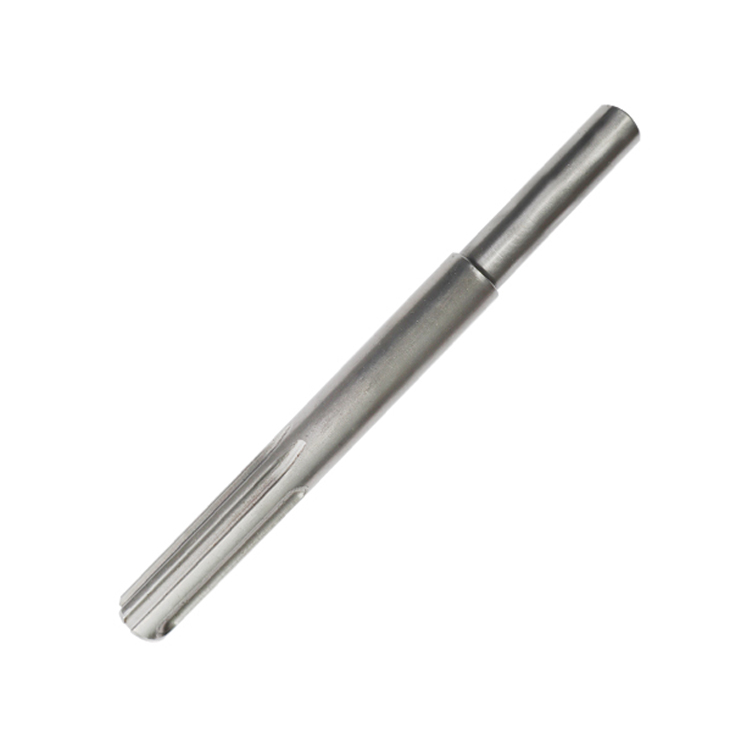

Product Name 5/8 Inch SDS Max Shank Auto Drop In Anchor Setting Tool for Bolt Drop in
Material Alloy Steel With Heat Treatment
Head Size 5/8" (1/4", 3/8", 1/2", 3/4" are also available)
Overall Length 200mm
Shank SDS Max shank (SDS Plus is Available)
Surface Finish Sand Blasted
Application For Bolt Auto Drop In Anchor
Package 10/5 Pcs Packed in One PVC Bag
Features
  • Used for the setting of drop-in expansion anchors in concrete holes, often used with nuts to fasten stop sign to concrete, or for rod hanging applications in post-tension slabs, hollow core panels and precast planks.
  • Drop-In Anchor Setting Tool is designed for properly and consistently installing internally threaded anchors.

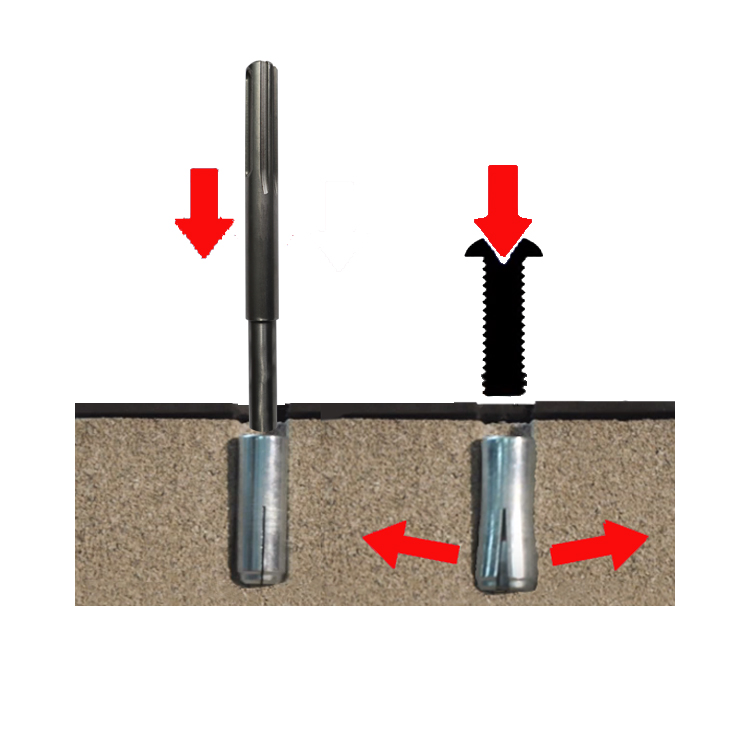

  • Using the setting tool, drop-ins are installed by driving the expander plug toward the bottom of the anchor until the shoulder of the setting tool makes contact with the top of the anchor.
  • By using a fixed-depth tool, over drilling is prevented, which helps save time and prolong drill bit life.

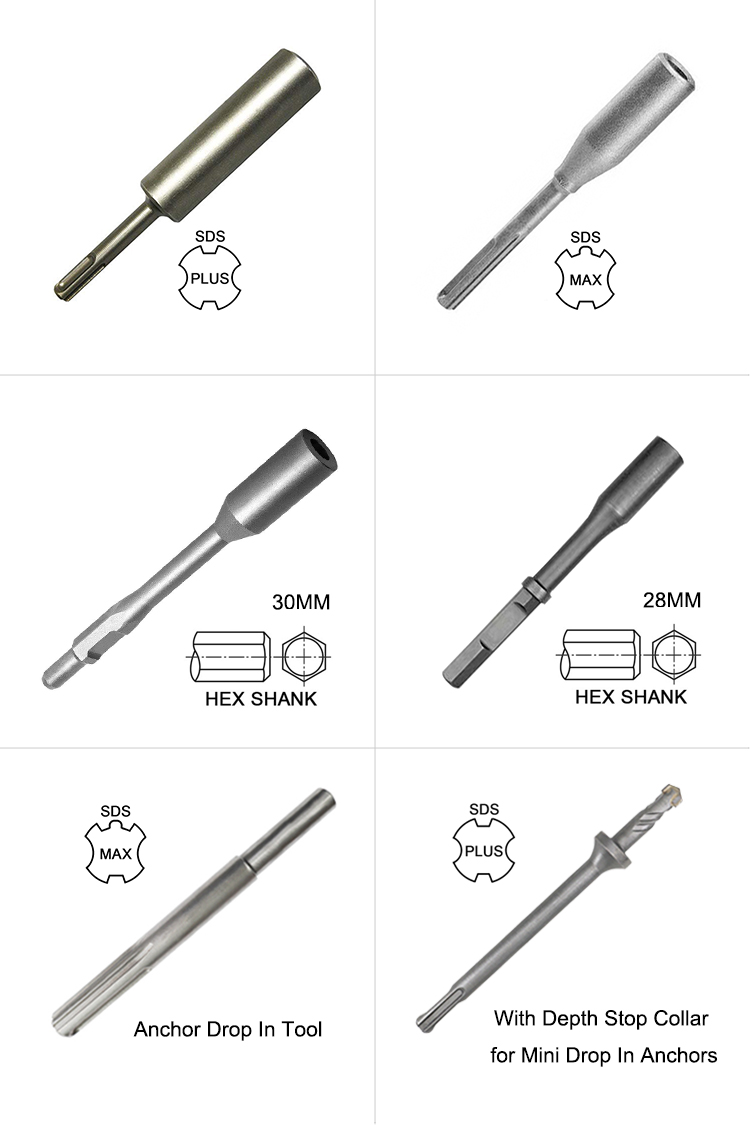

Related Products
Related Products
Main Product Catalogue
Main Product Catalogue Product Range Banner
Supplier Introduction

A Professional Tools Supplier with 18 Years Experience, specializing in all kinds of Drill Bit, Hole Saw, and Saw Blade.

Frequently Asked Questions
What is the primary function of the Drop-In Anchor Setting Tool?
It is designed for the fast, proper, and consistent installation of internally threaded drop-in expansion anchors in concrete structures. It is ideal for post-tension slabs, hollow core panels, and rod hanging.
What material is the tool made from, and how durable is it?
The setting tool is manufactured from premium alloy steel that undergoes heat treatment and sandblasted surface finishing to ensure high durability and resistance to wear during heavy-duty operations.
Are there other head sizes and shank types available?
Yes. While the standard option features a 5/8" head size with an SDS Max shank, we also offer sizes like 1/4", 3/8", 1/2", and 3/4", as well as compatibility with SDS Plus shanks.
How does this tool prevent over-drilling or incorrect installation?
The tool uses a fixed-depth shoulder design. When driving the expander plug to the bottom of the anchor, the shoulder makes contact with the top of the anchor, preventing over-driving and prolonging the life of your equipment.
How is the product packaged for shipment?
Typically, the tools are packaged with 5 or 10 pieces inside a single PVC bag, providing convenient storage and protection during transport.
