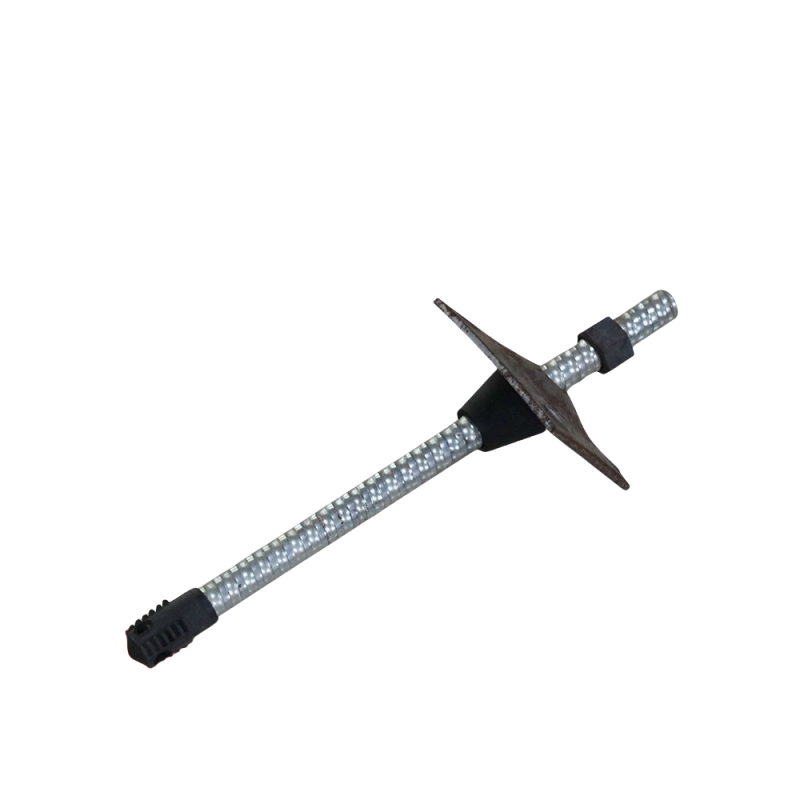

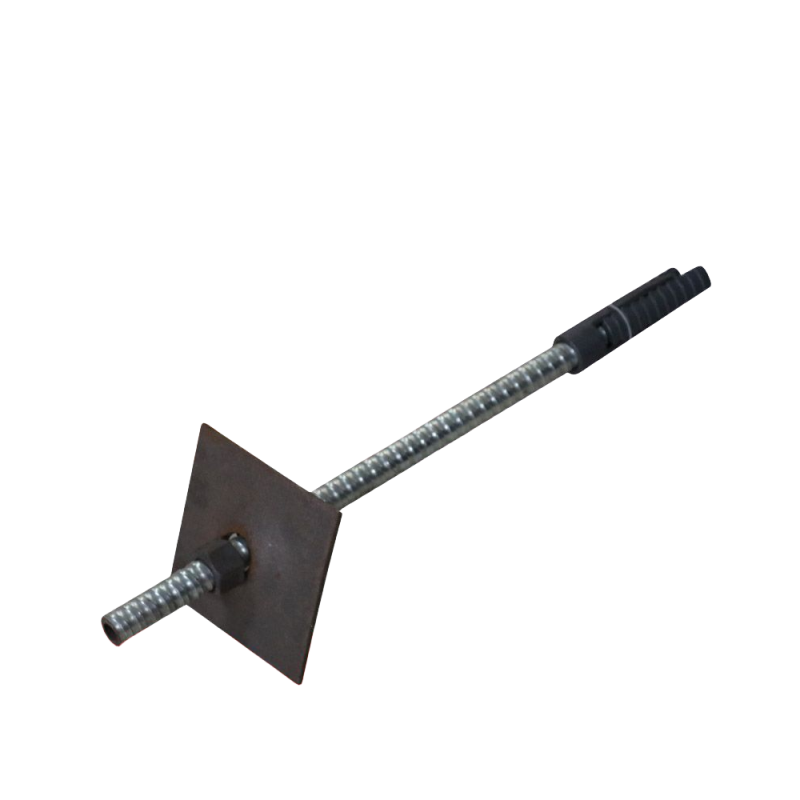

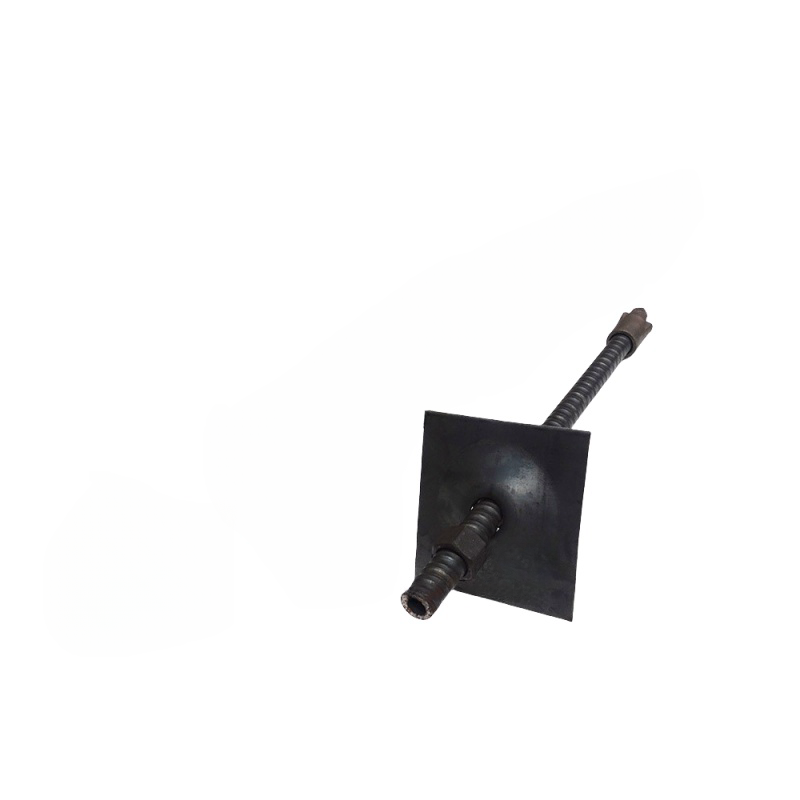

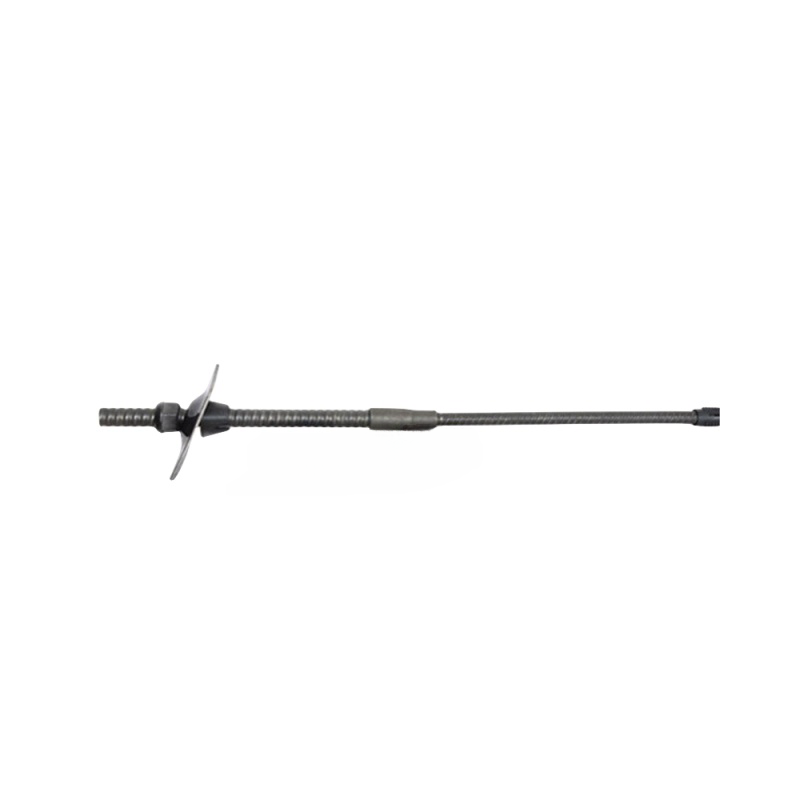

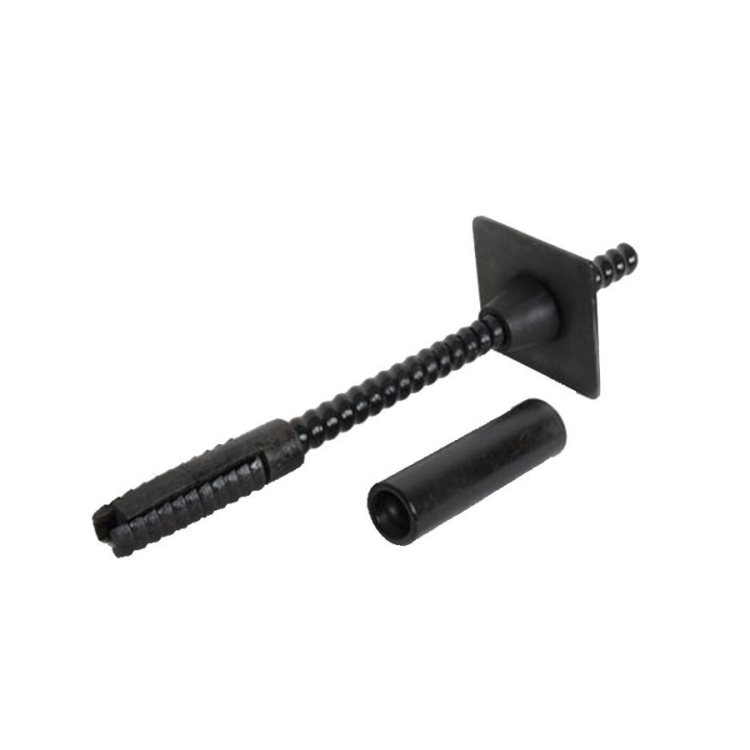

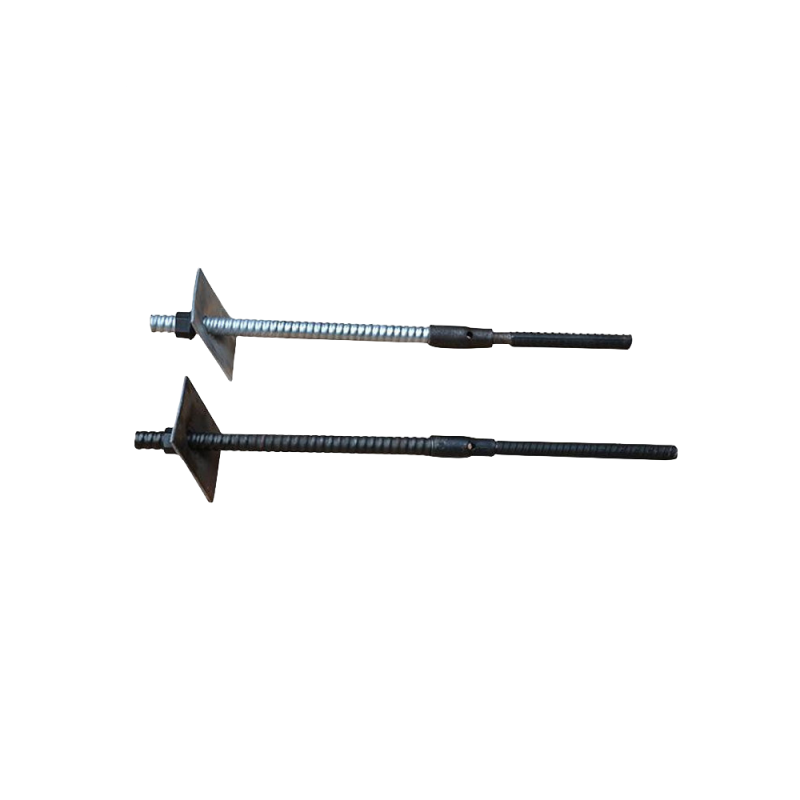

The main feature of the Self-Drilling Anchor (SDA) system is the application of a single-use drill bit in combination with the rock bolt being used as a drill steel. Thus, the rock bolt is connected to the hydraulic rock drill by an adapter device and installed in the way a conventional borehole is drilled. The SDA program consists of the following:
1. Single-use drill bits: Available either hardened or with carbide inserts.

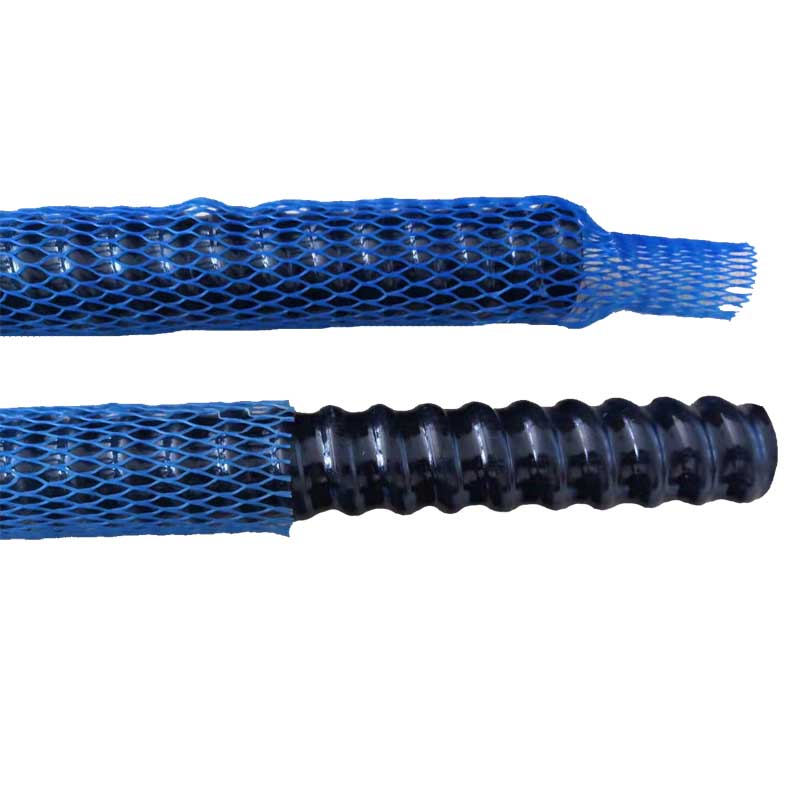

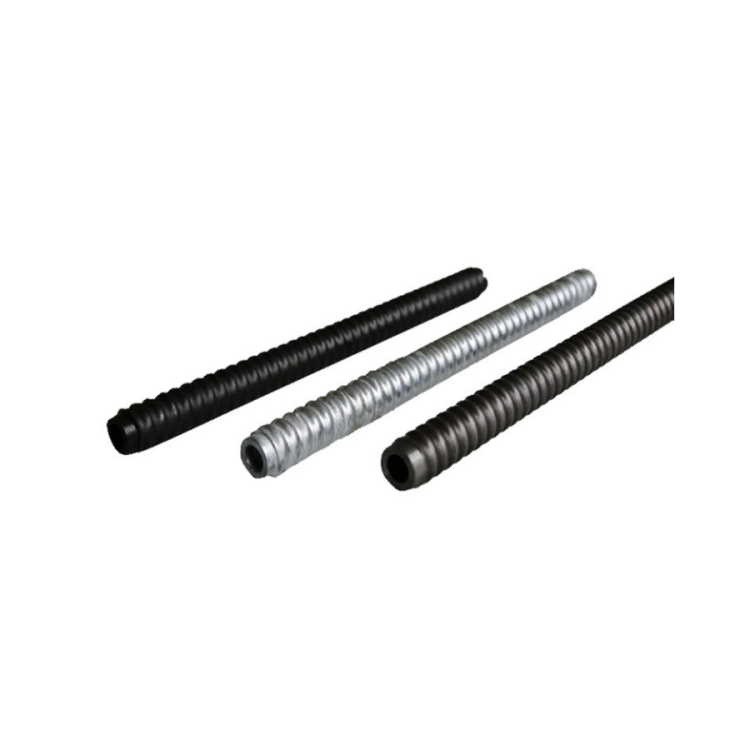

2. Hollow steel bars: Features a continuous outside thread.
3. Steel couplings: Configured with a continuous inside thread.
4. Steel nuts: Specifically designed matching nuts.
5. Steel face plates: Durable load-bearing plates.
The bolts are classified according to thread type and material:
R-type: Features a rope thread, available in sizes from R25 to R51.
T-type: Conforms to international standards, available in sizes from T30 to T103.
FRP bolts: Made out of fiberglass, available from S15 to SXX in both solid and hollow versions.
Applications:
The SDA system is suitable for simultaneous drilling and grouting in various applications:
Tunnelling and Mining: Radial bolting, Spiling, Face stabilisation, Portal preparation.
Ground Engineering: Ground consolidation and injection, Soil nailing, Slope stabilisation, Microinjection pile, Temporary support anchoring.
Product Specifications
Describe
R32L
R32N/21
R32N/18.5
R32S/17
R32SS/14
Outside diameter (mm)
32
Internal diameter (mm)
22
21
18.5
17
14
Cross section Area (mm²)
356
363
443
440
522
Ultimate load (Kn)
260
280
280
360
405
Yield Load (Kn)
200
230
230
280
300
Weight (kg/m)
2.8
2.85
3.4
3.45
4.1
Rod material
40Cr
Length (m)
3m 4m 6m 9m 10m
