1 / 5
| Pressure of roller max | 630KN | Spindle speed | 8.14.21.33(r/min) | Center distance of shaft | 210-380mm |
| Working dia | 120mm | Main power | 15kw | Working store | 15mm-21mm |
| OD of roller | Φ260mm | Hydraulic power | 7.5kw | Dip angle of main shaft | ±10° |
| BD of roller | Φ100mm | Cooling power | 0.25kw | Key Width | 28mm |
| Roller width max | 200mm | Weight | 7000kg | Size | 2100×2270×2330mm |

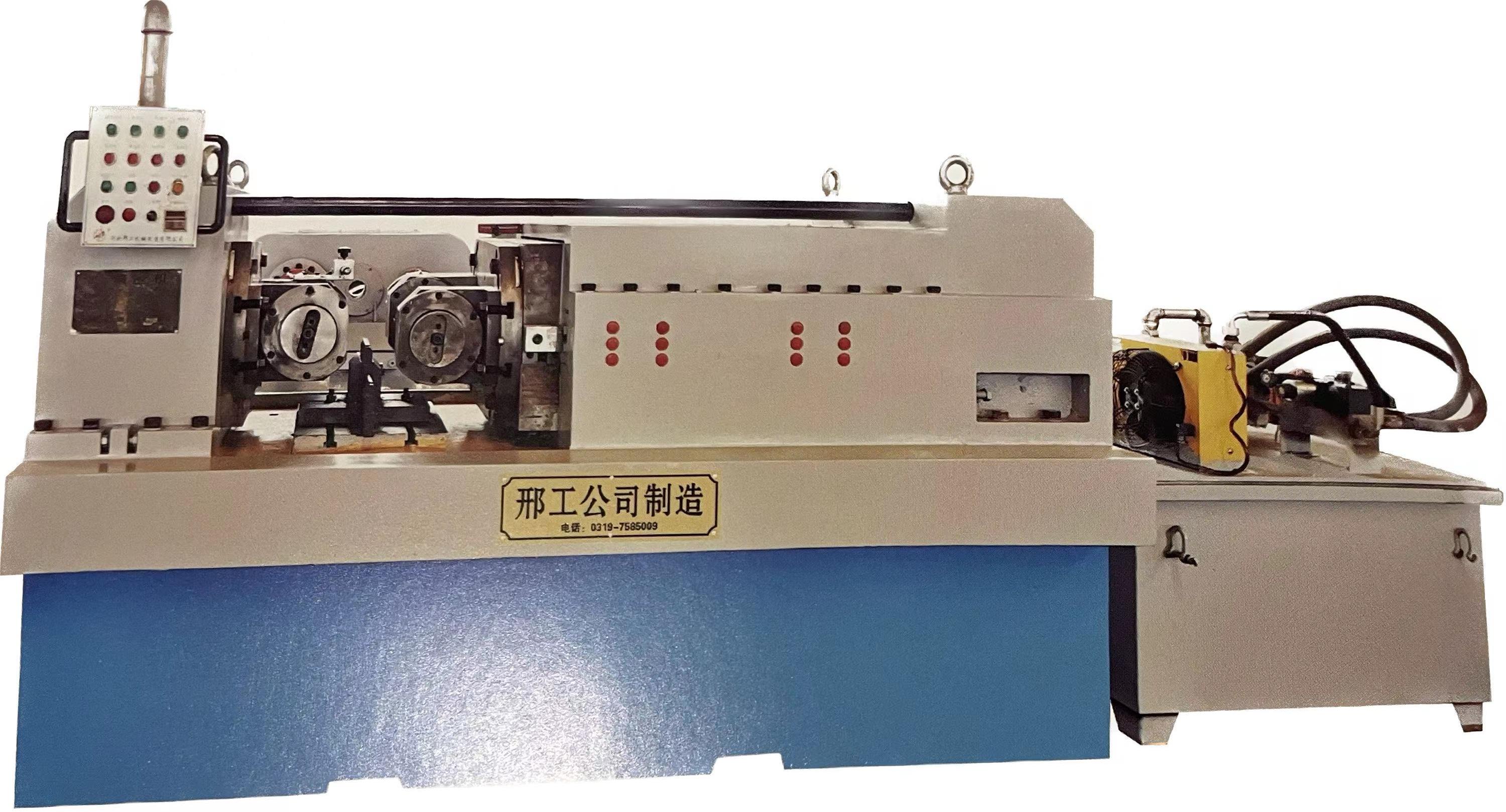

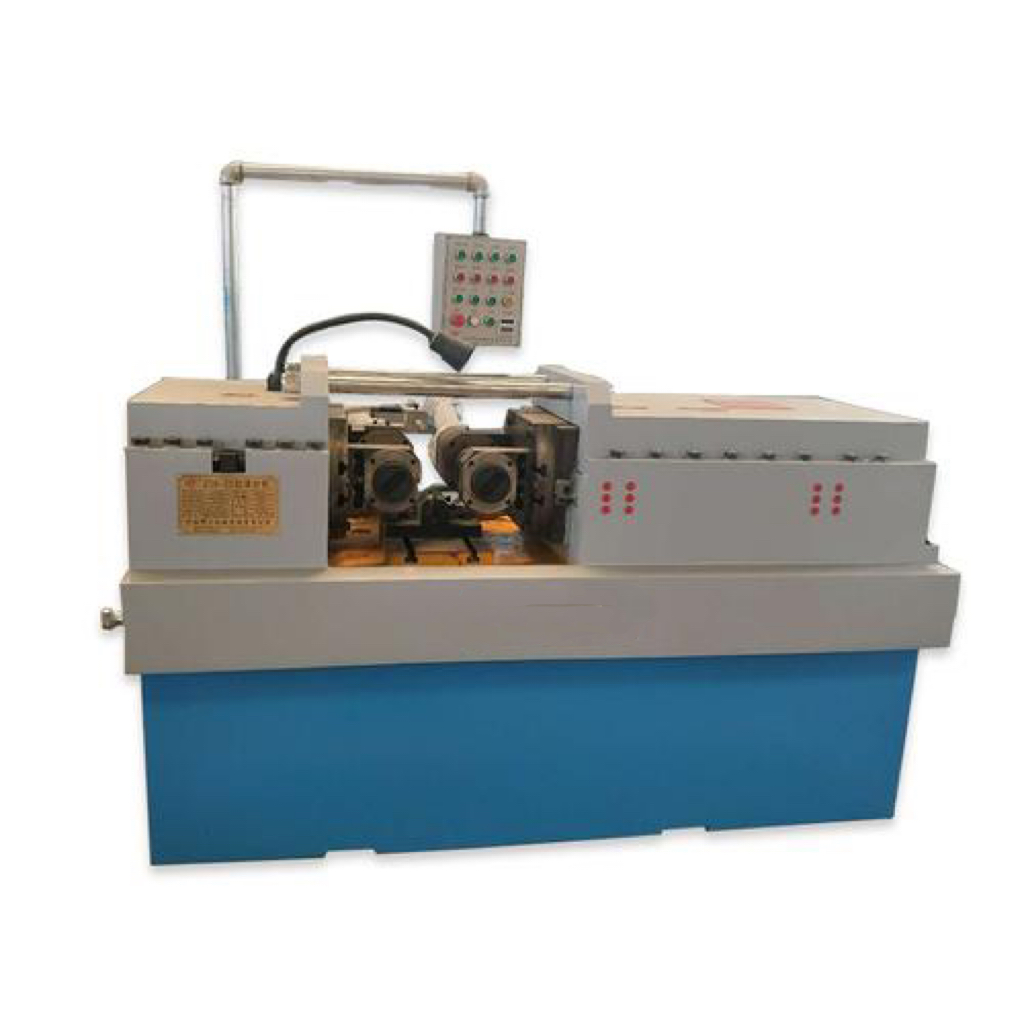

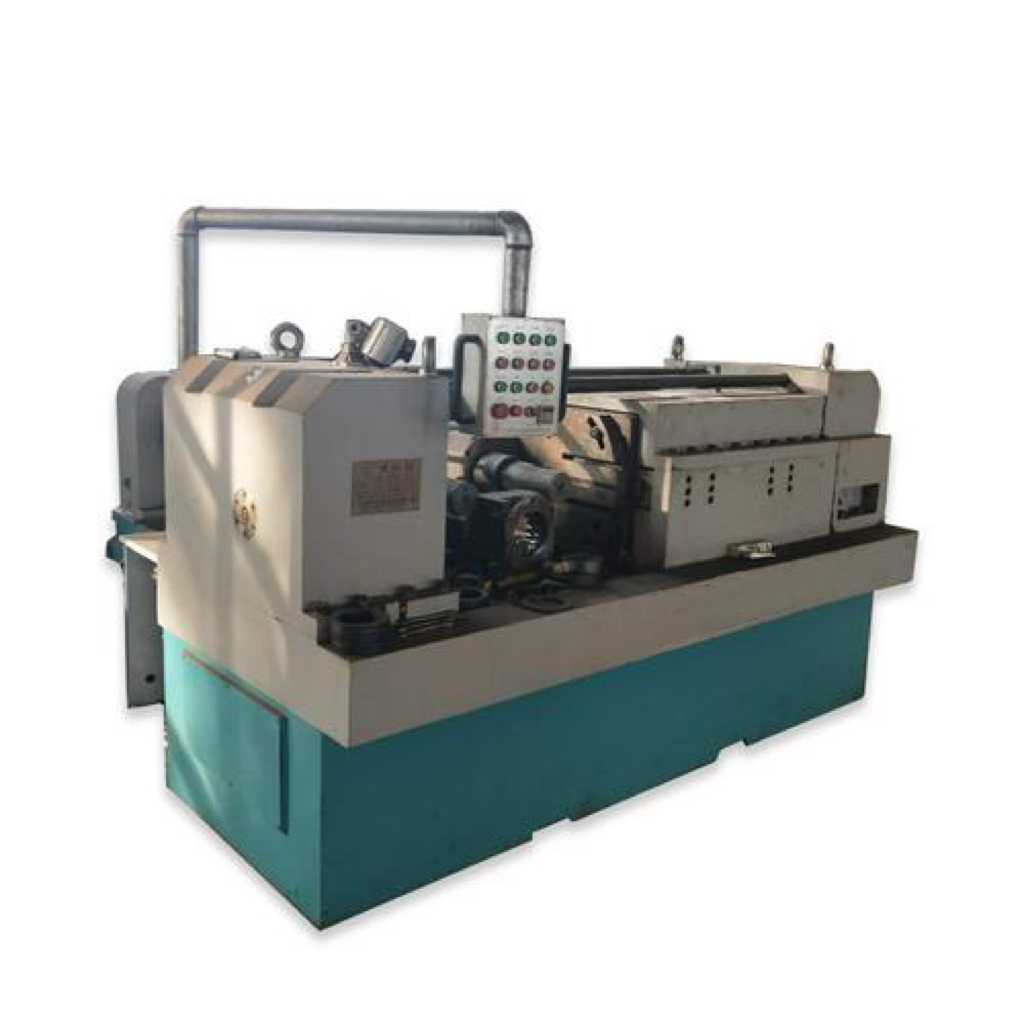

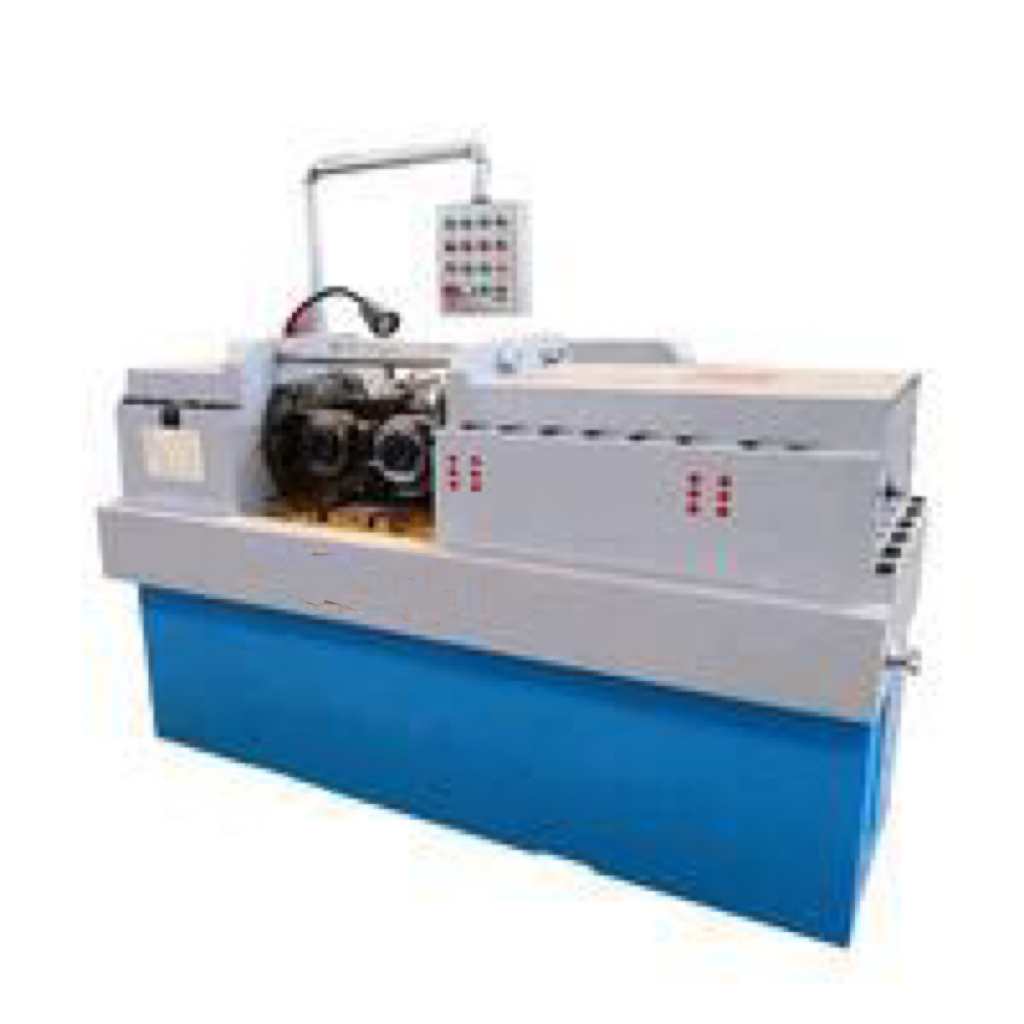

The Thread Rolling Machine is a versatile piece of equipment designed to efficiently perform various types of precision outer thread rolling, including common, trapezoidal, and modulus threads. It can also be used for workpiece circularization, straightening, and wrinkle removal.
This machine can accommodate materials with an elongation at break of less than 10% and a tensile strength of less than 1000N/mm² made of various carbon steels, alloy steels, and non-ferrous metals.
The machine can be equipped with an automatic feeding device based on user demand, enhancing its productivity and reducing labor costs.
The machine features a range of durable core components, including a PLC, engine, bearing, gearbox, motor, pressure vessel, gear, and pump, all of which are backed by a 1-year warranty.
The Thread Rolling Machine can be applied in various industries, such as building material shops, manufacturing plants, machinery repair shops, retail, construction works, energy & mining and others.
1. What is the scope of your main machine products?
Our core products include various types of Thread Rolling Machines, Aneroid Thread Rolling Machines, Necking machines, and Cold Draw Flower machines.
2. How is the quality of the machinery guaranteed?
Quality is our priority. We ensure that a pre-production sample is always evaluated before mass production, followed by a strict final inspection process before shipment.
3. Why should we purchase from your team rather than other suppliers?
We maintain a strict quality inspection system to guarantee the quality of every shipment. Additionally, we provide top-tier after-sales service, custom print and design support based on customer specifications, and guarantee on-time delivery.
4. What delivery and payment options are available?
We accept standard delivery terms including FOB, CFR, CIF, FCA, CPT, DDP, and DDU. Accepted payment methods consist of T/T, L/C, and Western Union, with accepted currencies of USD and EUR.
5. Can these machines handle complex materials?
Yes, our thread rolling machines accommodate materials with an elongation at break of less than 10% and a tensile strength of less than 1000N/mm², making them suitable for alloy steels, carbon steels, and non-ferrous metals.
6. What industries can benefit from using these thread rolling machines?
These machines are highly versatile and widely deployed in building material shops, manufacturing plants, machinery repair shops, retail environments, construction works, energy, and mining sectors.
