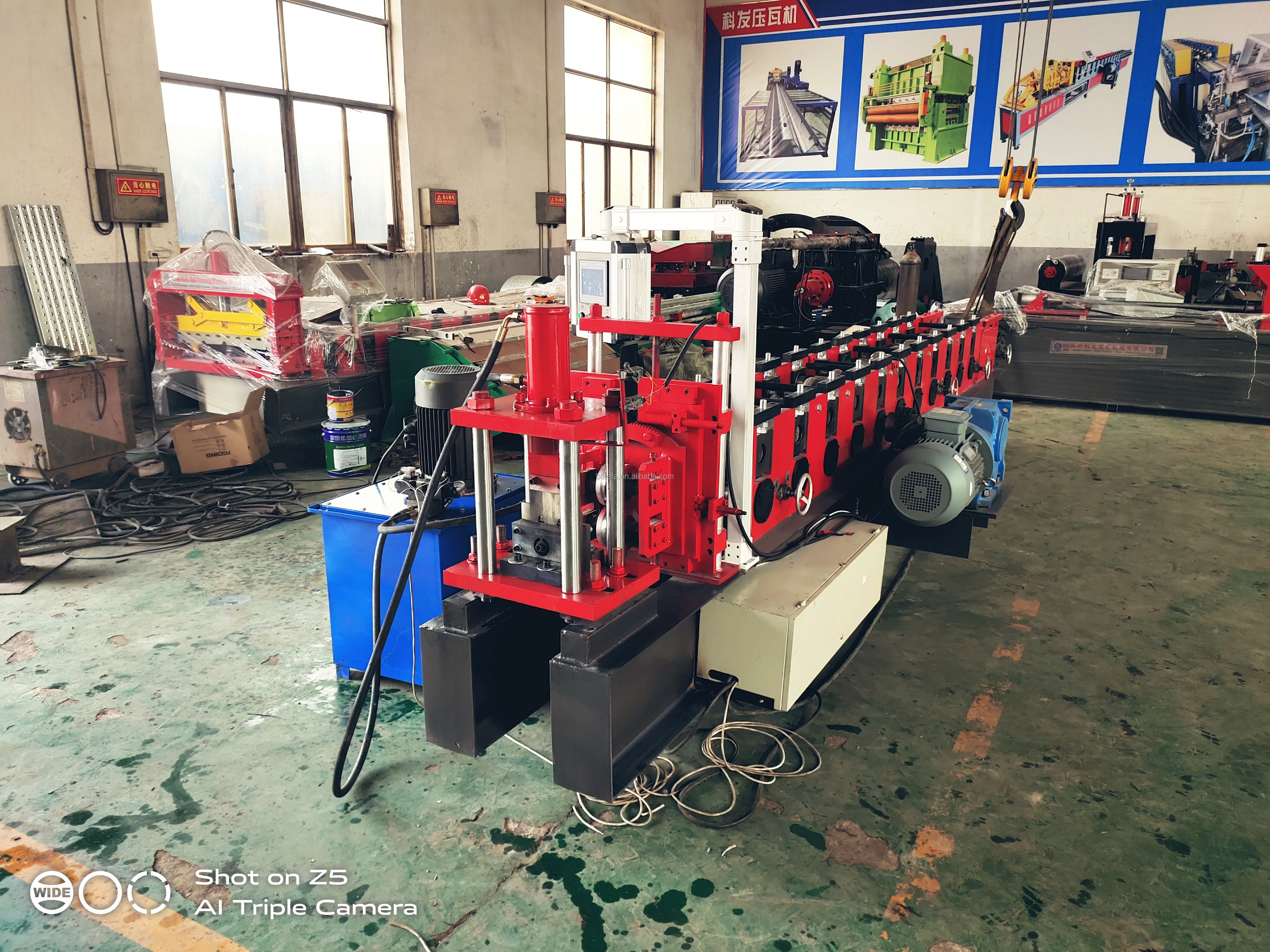

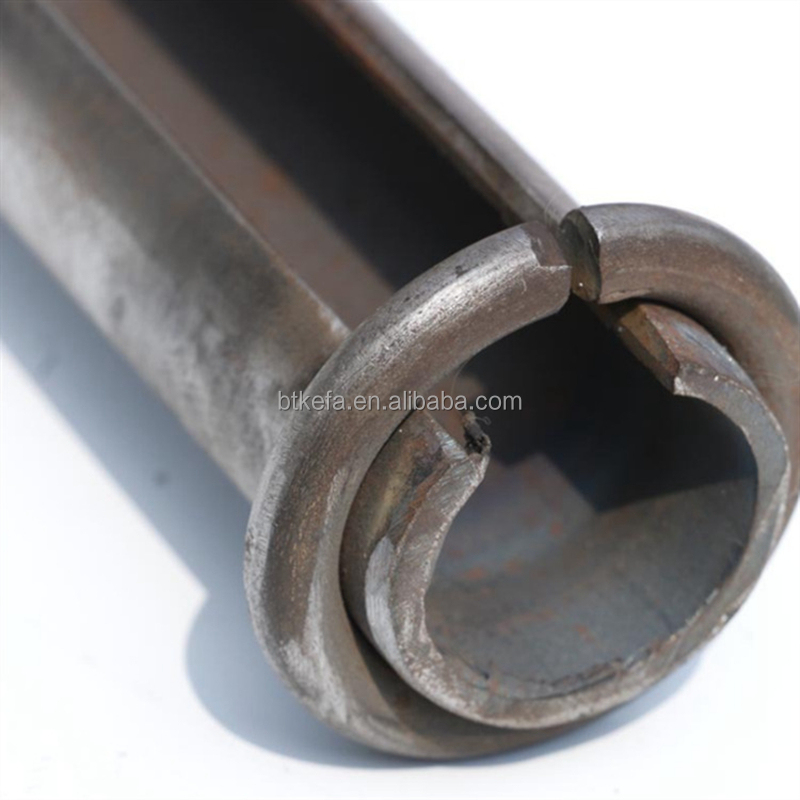

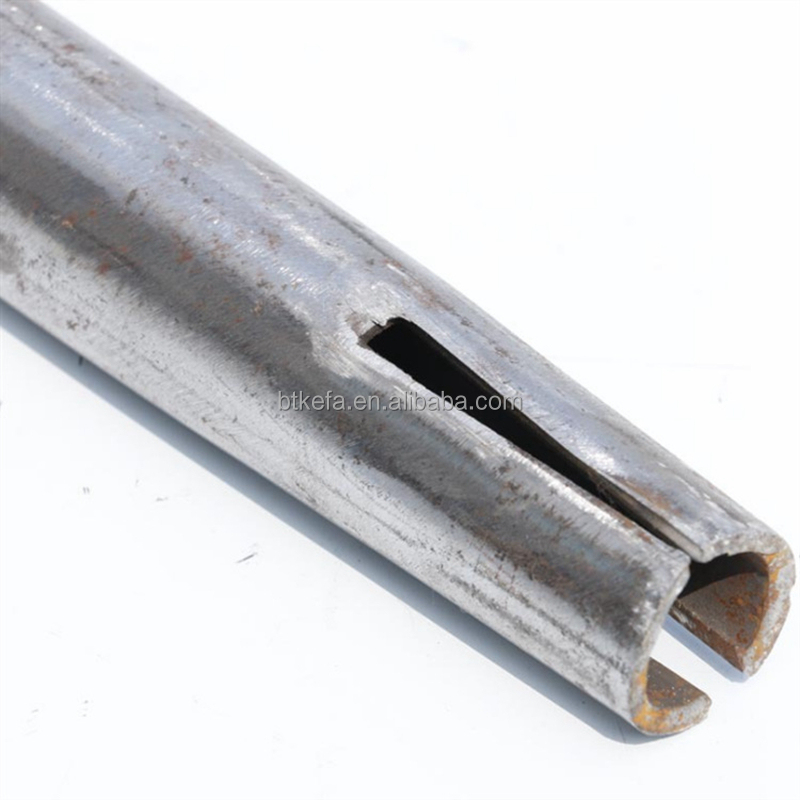

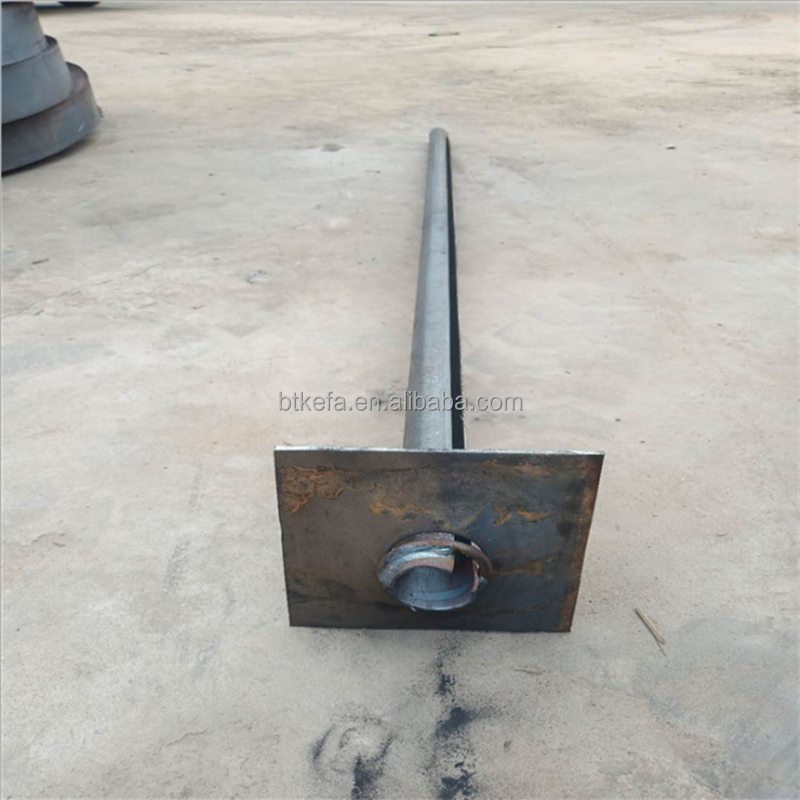

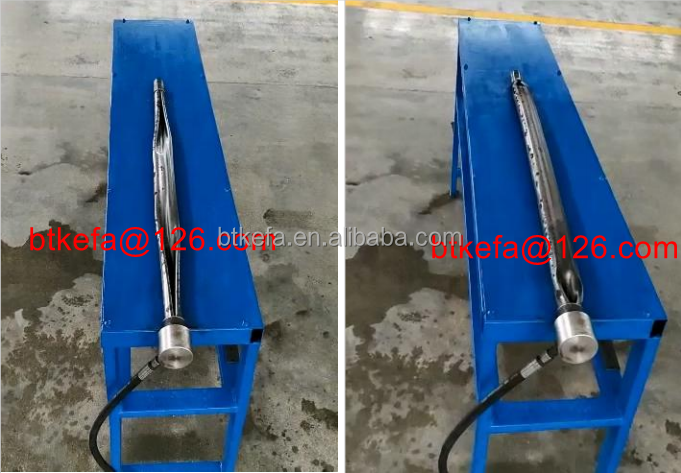

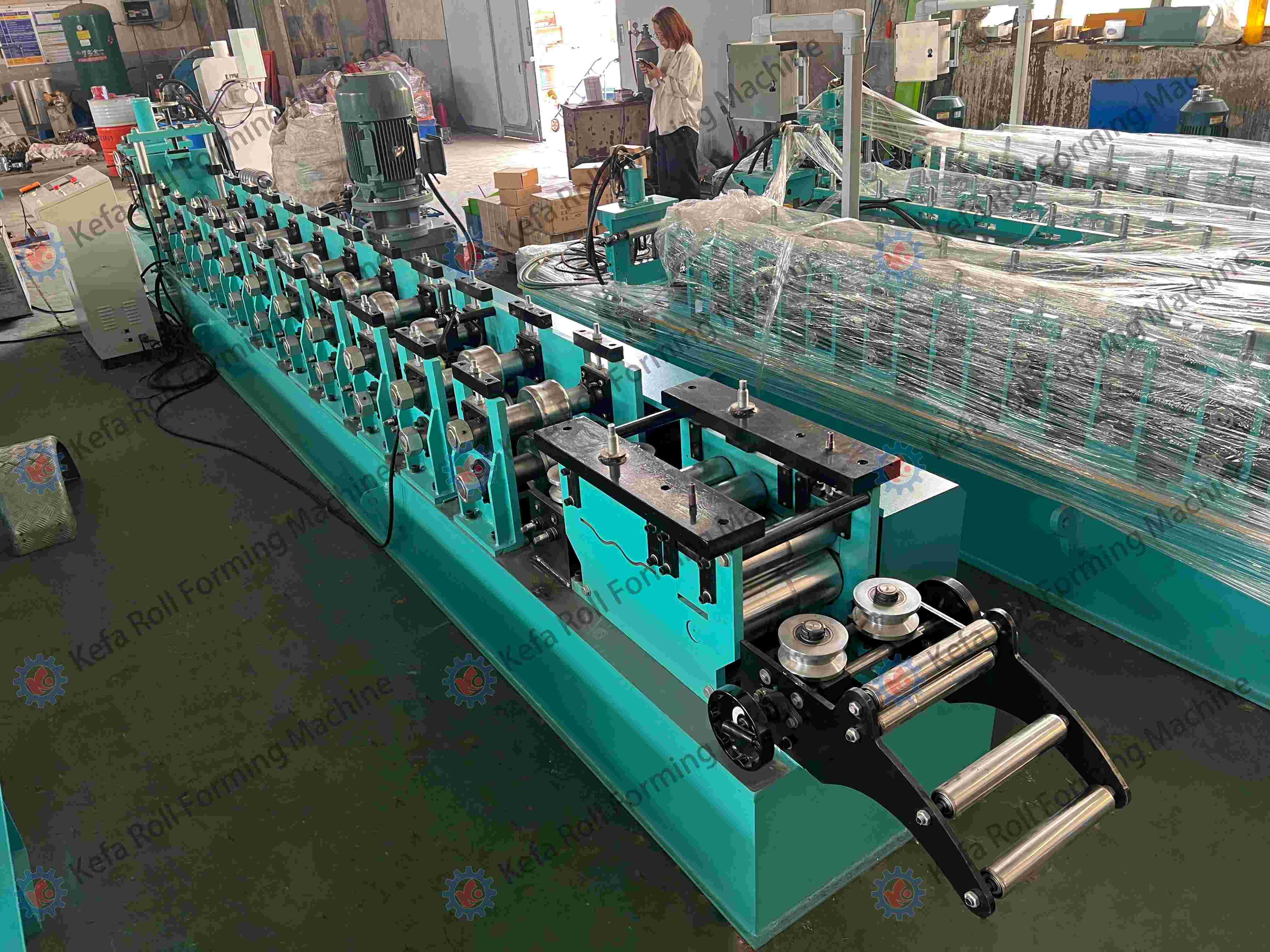

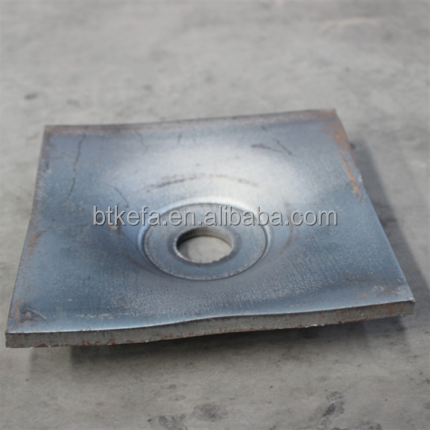

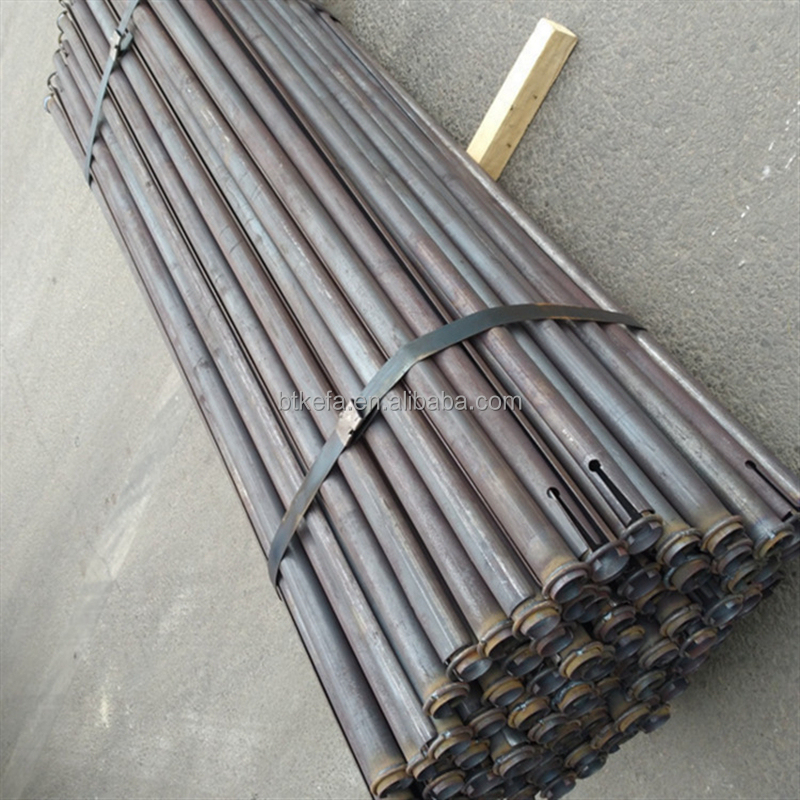

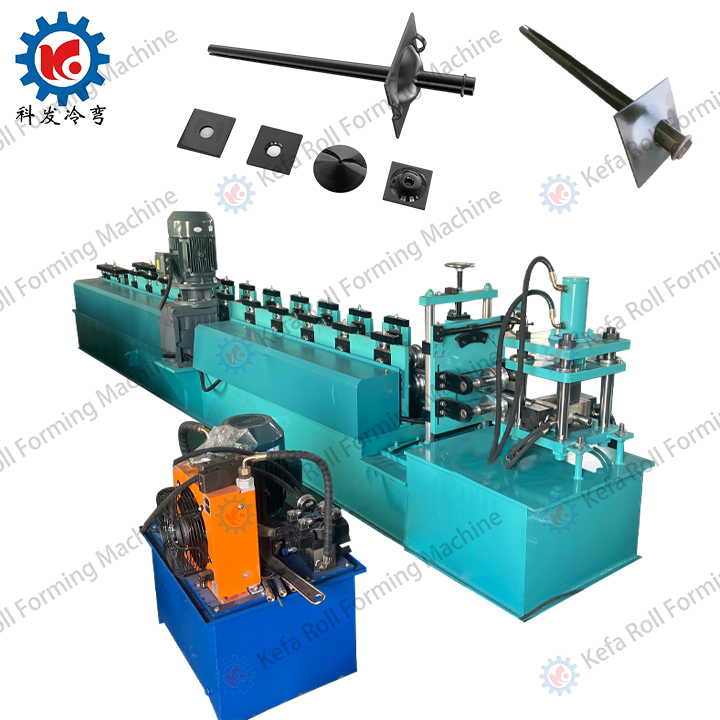

The splitsets machine is a crucial equipment designed and built for splitsets stabilizers production. The Split sets consist of a slotted tube and a bearing plate. One end has a tapered shape for easy installation and the other end has a welded ring to firmly hold the plate.
| Decoiler: | Manual decoiler | * Hydraulic decoiler (Optional) |
| Forming station: | According to your profile drawings | * With straighten revise rollers |
| Main machine motor brand: | Shanghai Lichao (Famous Brand) | * Siemens (Optional) |
| Driving system: | Chain drive or Gear drive | * Gearbox drive (Optional) |
| Machine structure: | Cantilever type | * Forged Iron station (Optional) |
| Forming speed: | 10-20 (M/MIN) | * Or according to your profile drawings |
| Rolling Shaft: | 40Cr Steel Material | * (Modulation, fine turning, fine grinding) |
| Rollers' material: | CR12 Steel (Quenching, fine turning and grinding of inner holes and surfaces, Hard chrome) | * SKD-11 (Optional) |
| Cutting system: | Post-cutting | * Pre-cutting (Optional) |
| Frequency changer brand: | Yaskawa | * Siemens (Optional) |
| PLC brand: | Delta, Touch Screen | * Siemens (Optional) |
| Power supply: | 380V 50Hz 3ph | * Or according to your requirement |
| Machine color: | Industrial blue | * Or according to your requirement |
| Runout Table: | Roller type, non-power | * Motorized, Drop off, auto stack (Optional) |

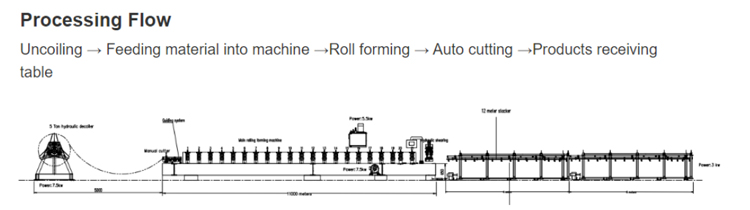

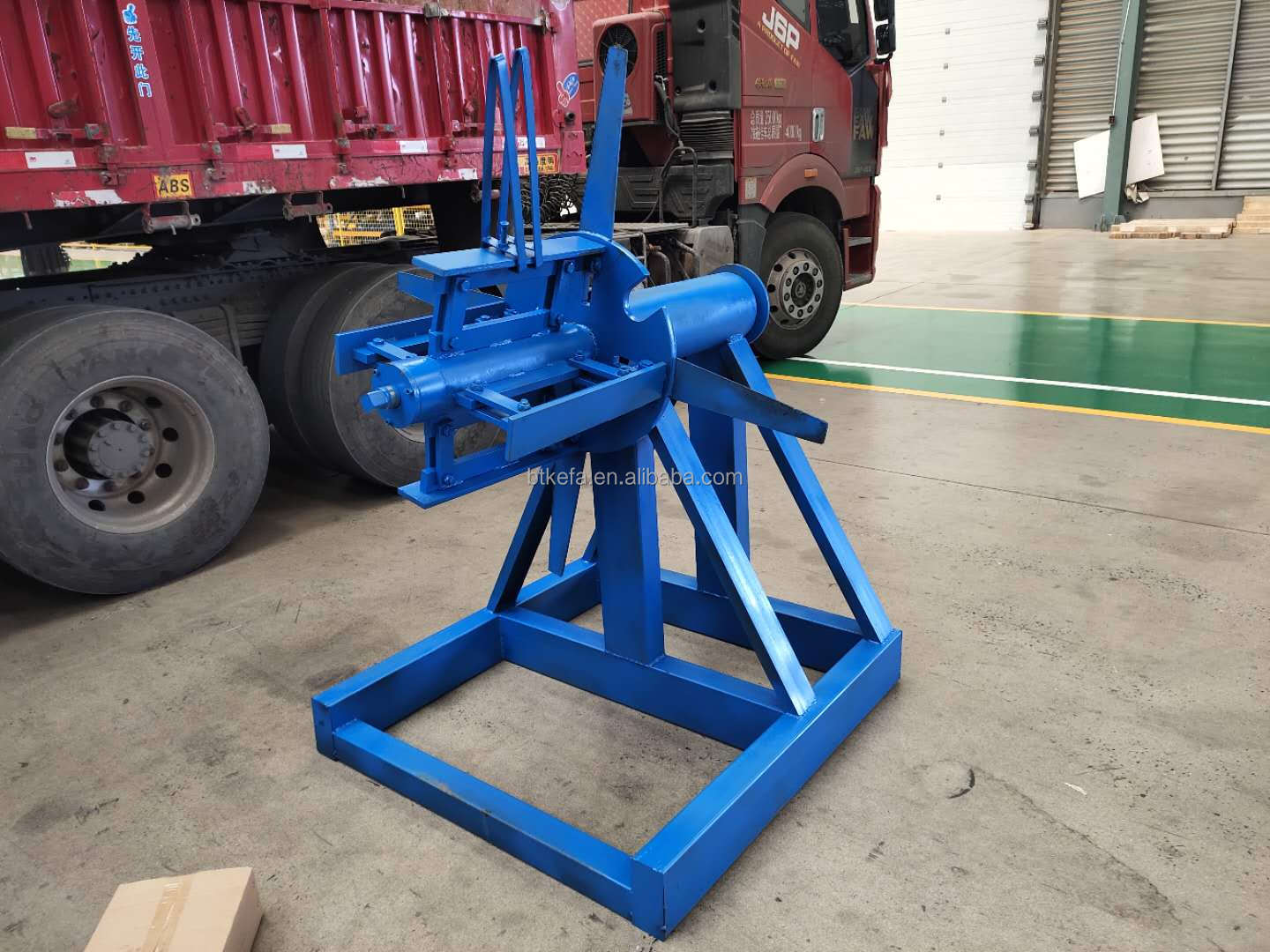

De-Coiler is provided to load raw material coil on its bridge, hold the coil and store the raw material in the loop area before processing. It ensures smooth decoiling for the line.

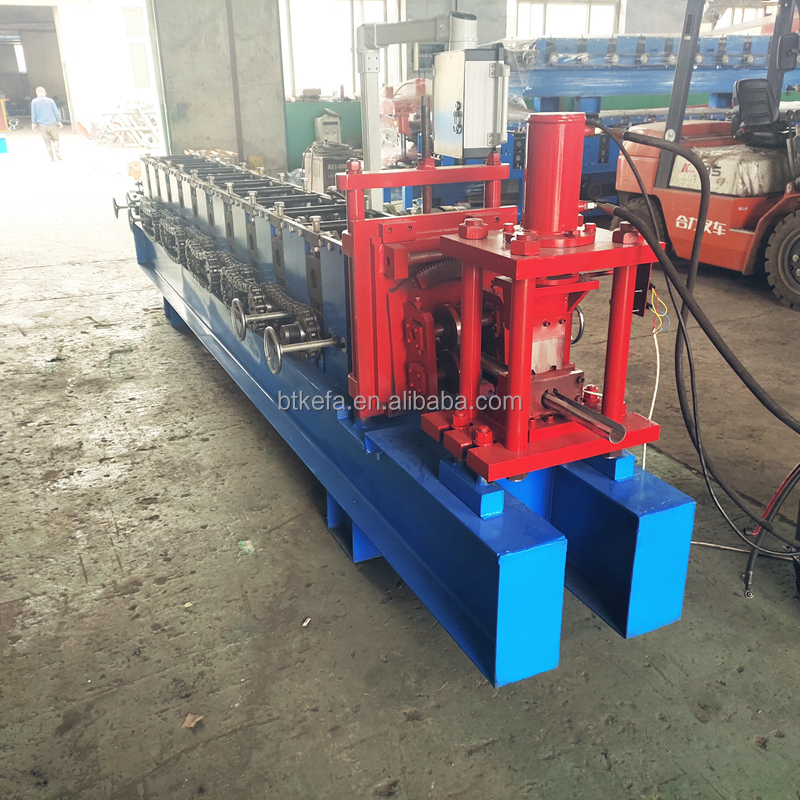

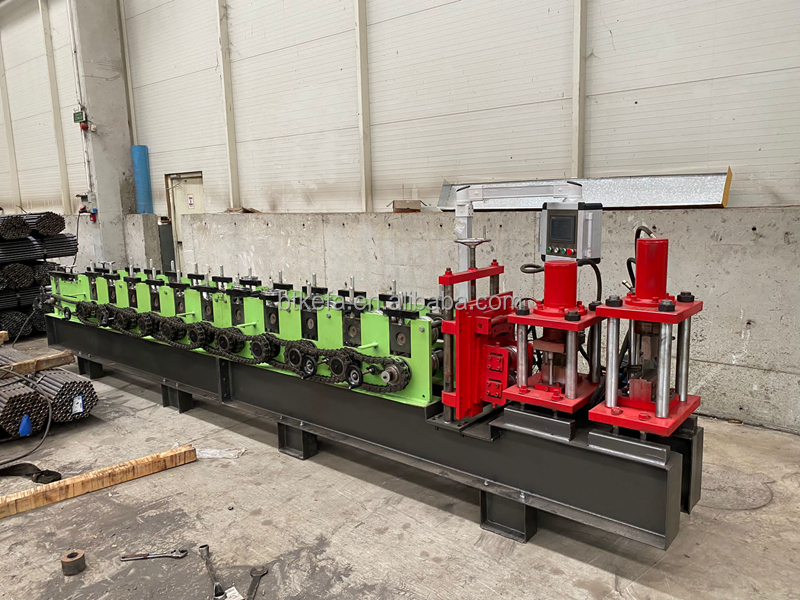

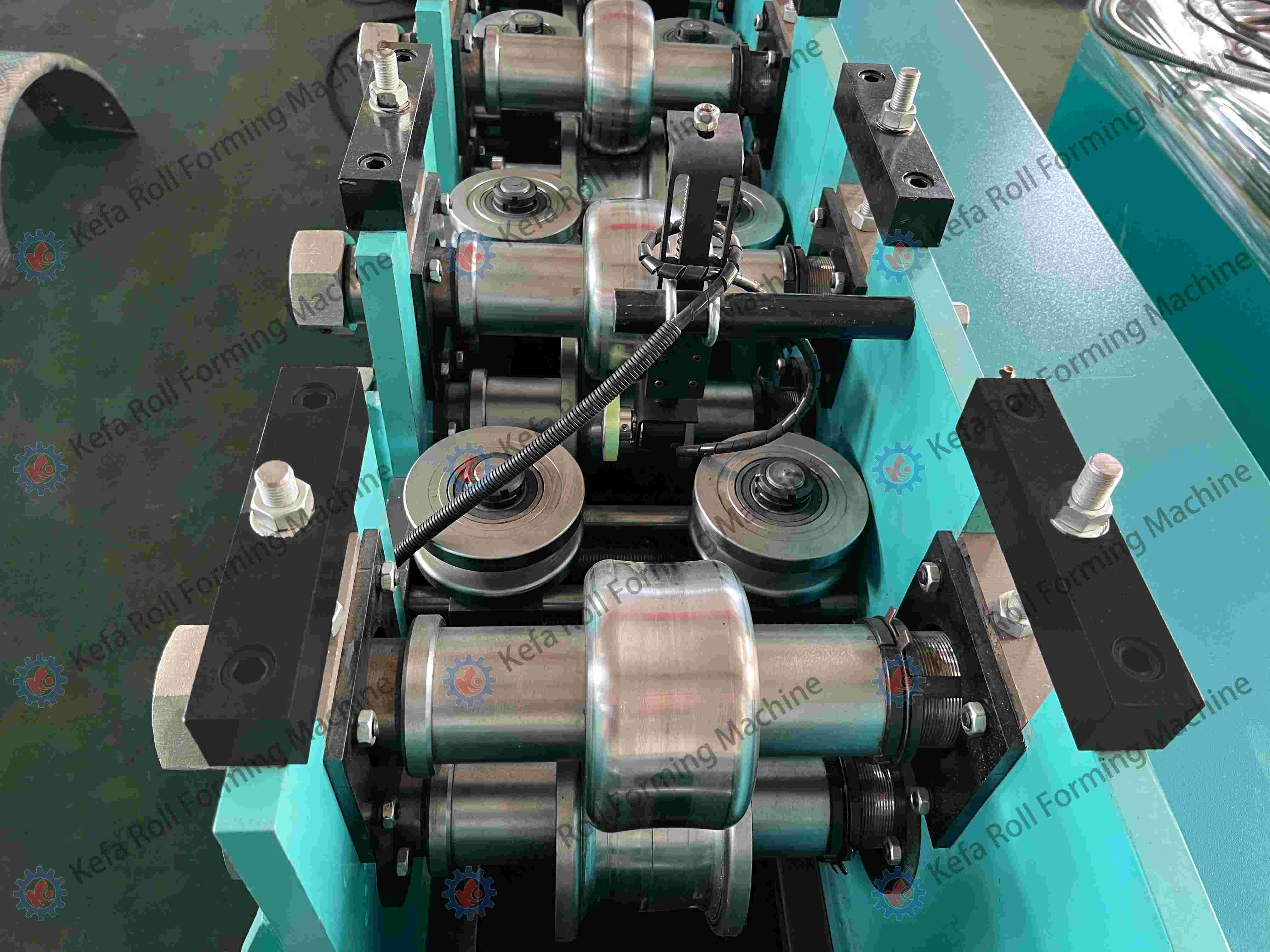

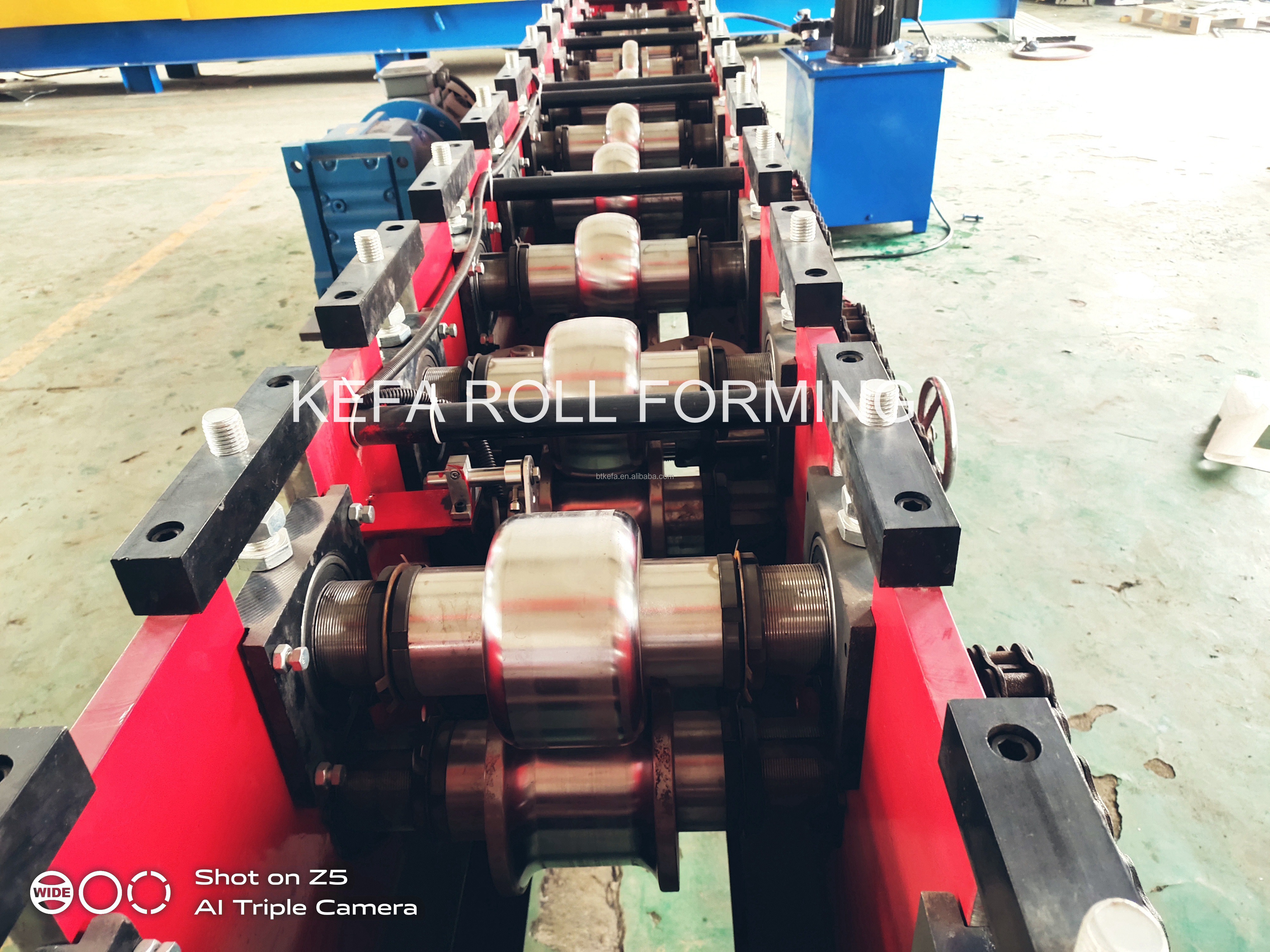

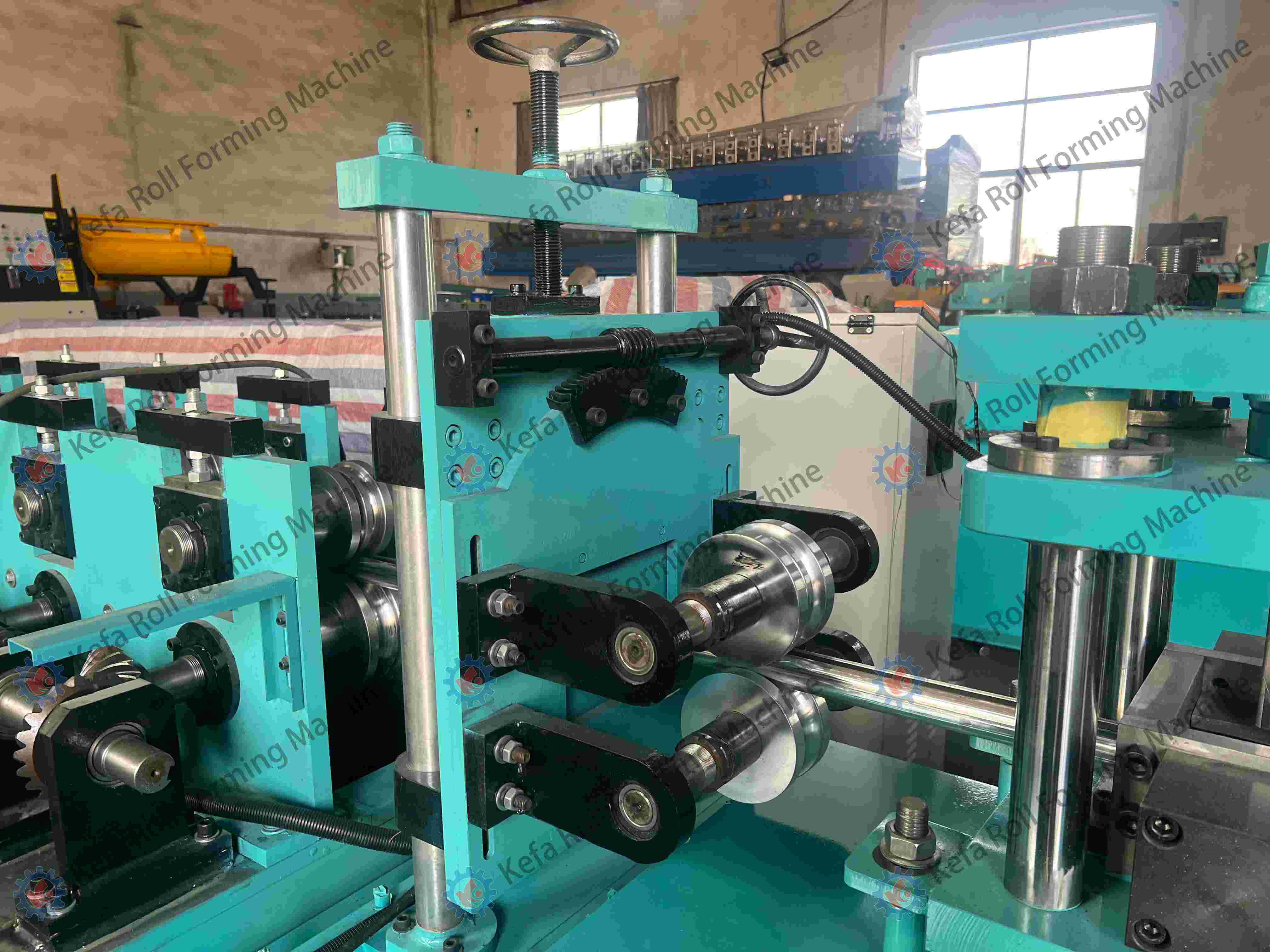

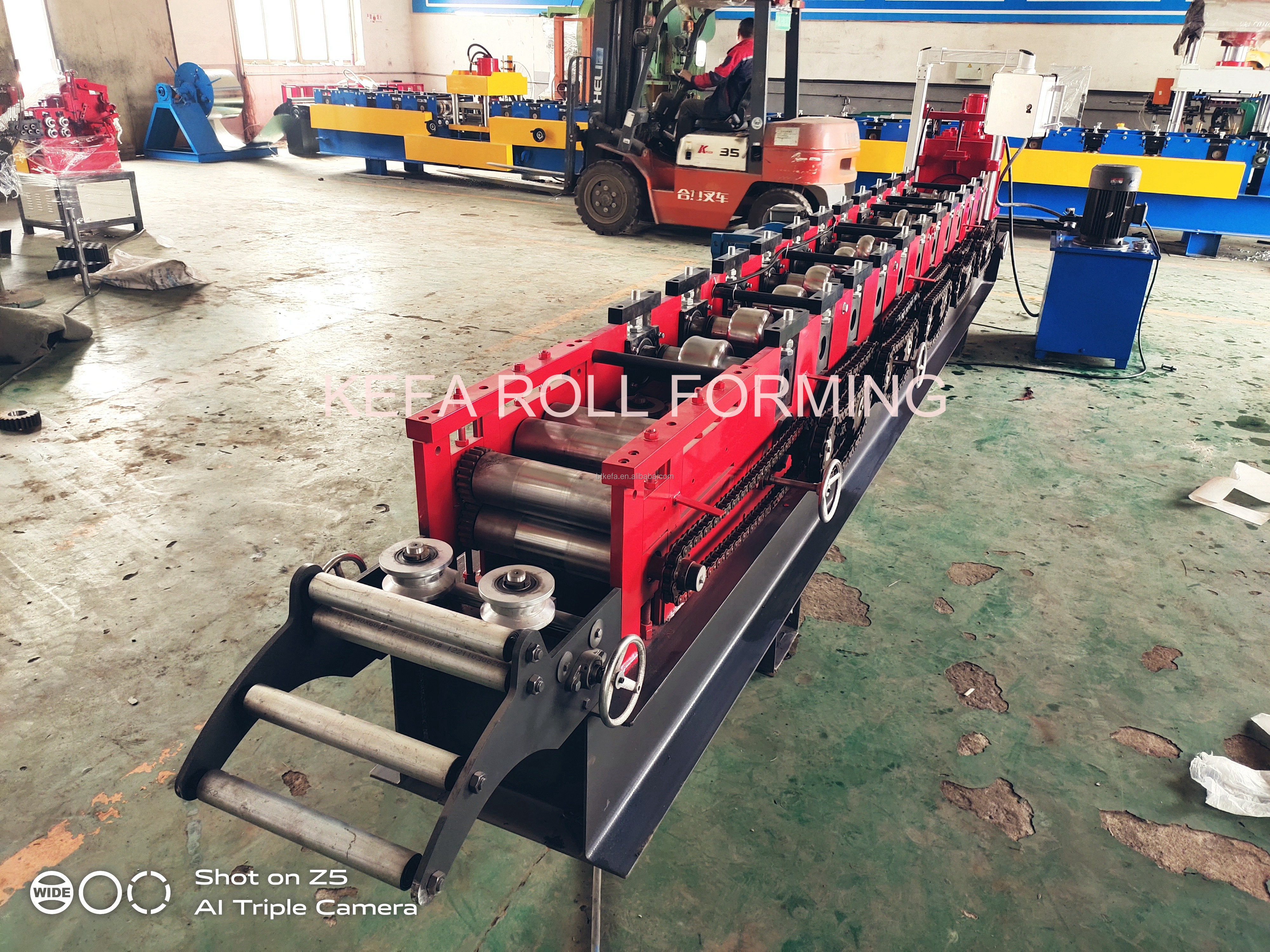

Consisting of pairs of contoured roll tools. While the coil stock passes through successive contoured rolls, the material bends to its desired shape.
1. Rolling shaft: 40Cr STEEL, tempering treatment to prevent deformation and improve hardness. Shaft diameter: 75mm.
2. Roller: Cr12 steel, chromed treatment to improve hardness, prevent abrasion, and offer anti-corrosion for a longer service life.

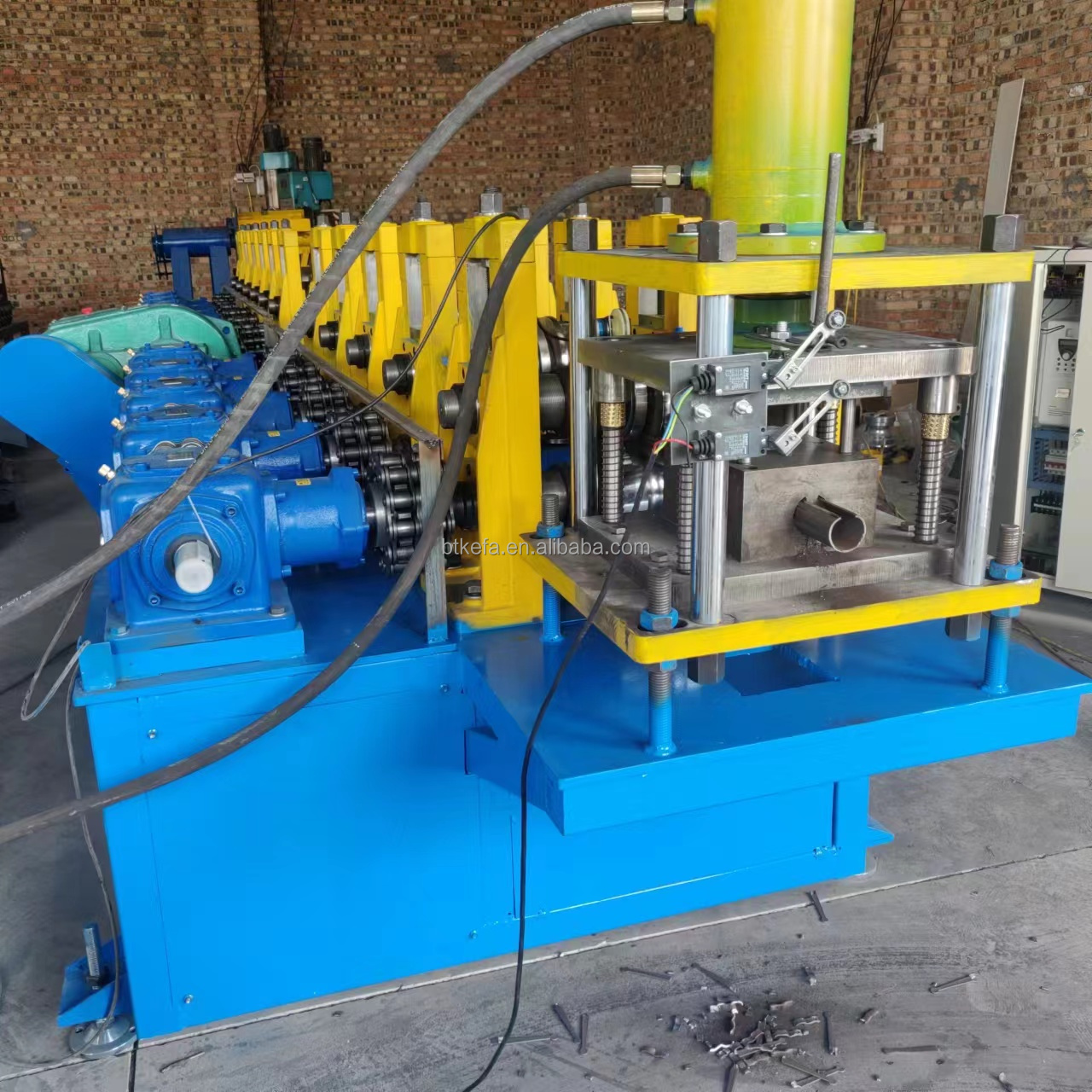

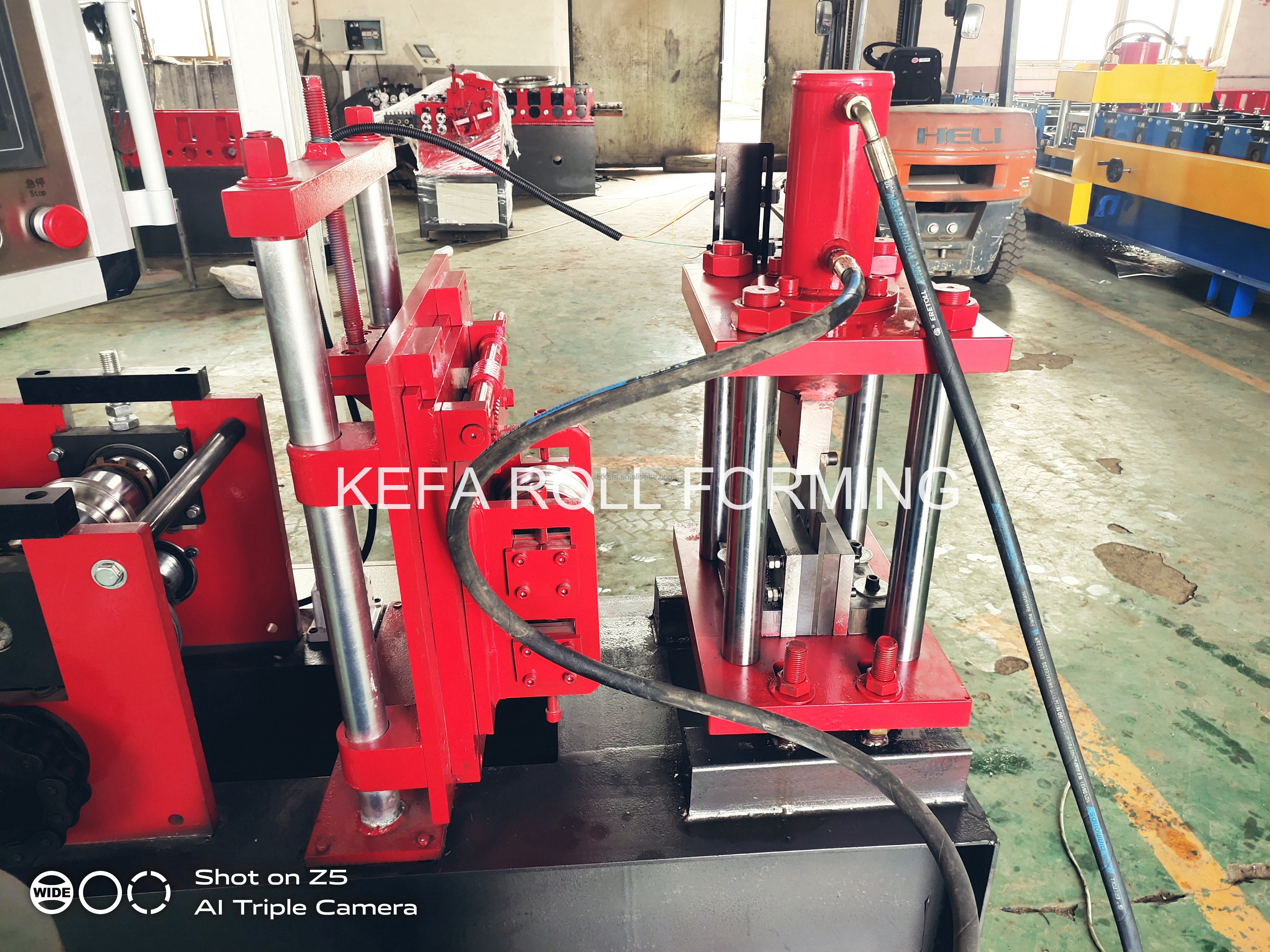

The flying cutting saw ensures a perfect, clean shape without deformation after shearing during continuous production.

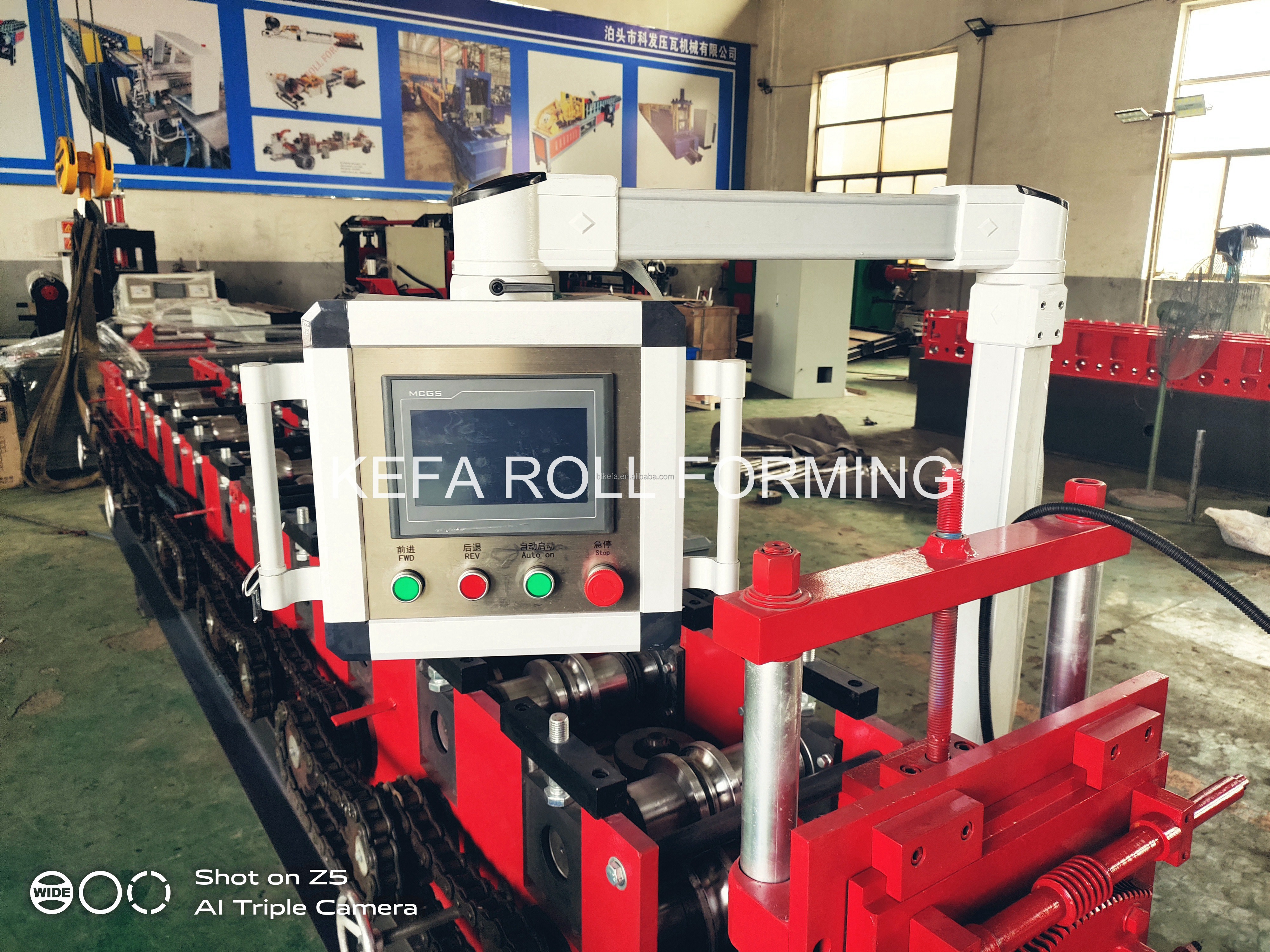

Frequency brand: Delta | PLC brand: Delta | Screen type: Touch screen interface alongside manual physical buttons. Supported languages: English, Chinese, and Spanish.
Low pressure electrical parts: Schneider brand | Encoder: Omron brand.
Remark: Supports multi-orders input, ensuring the machine can work continuously according to different requests without stopping. High-quality branded electrical parts make maintenance easy.
Enclosed dust-proof cabinet configuration containing high-quality PLC drivers, frequency changers, and circuitry terminals for stable machine control.
