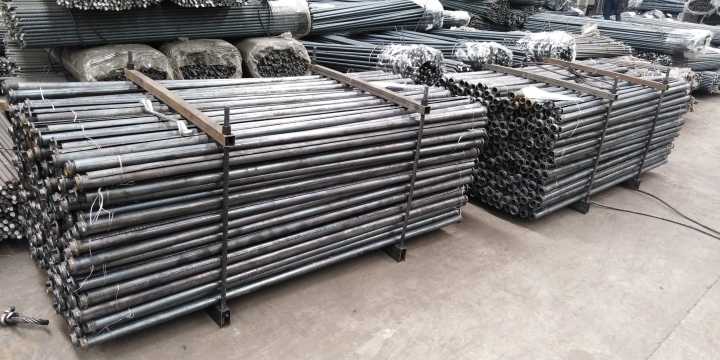

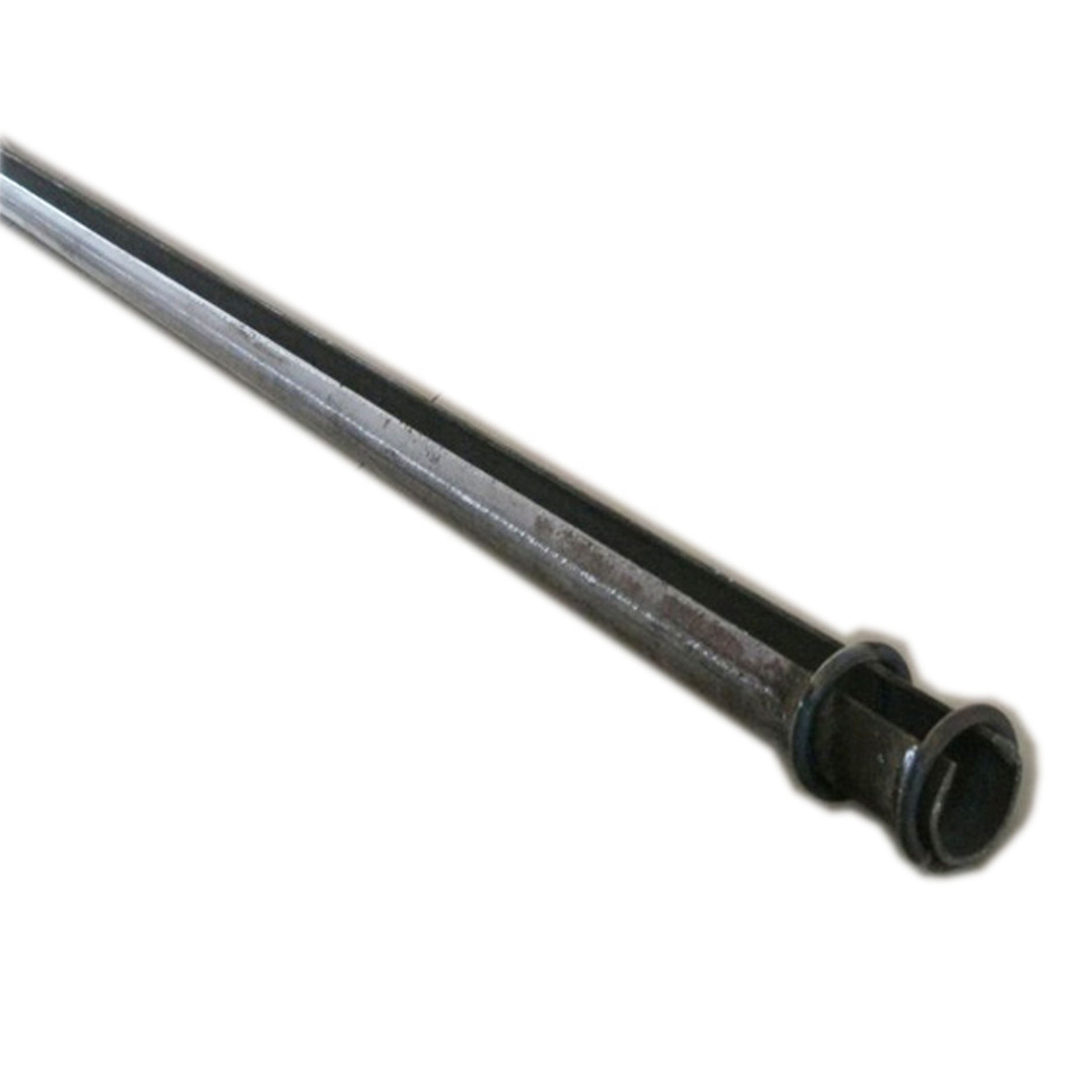

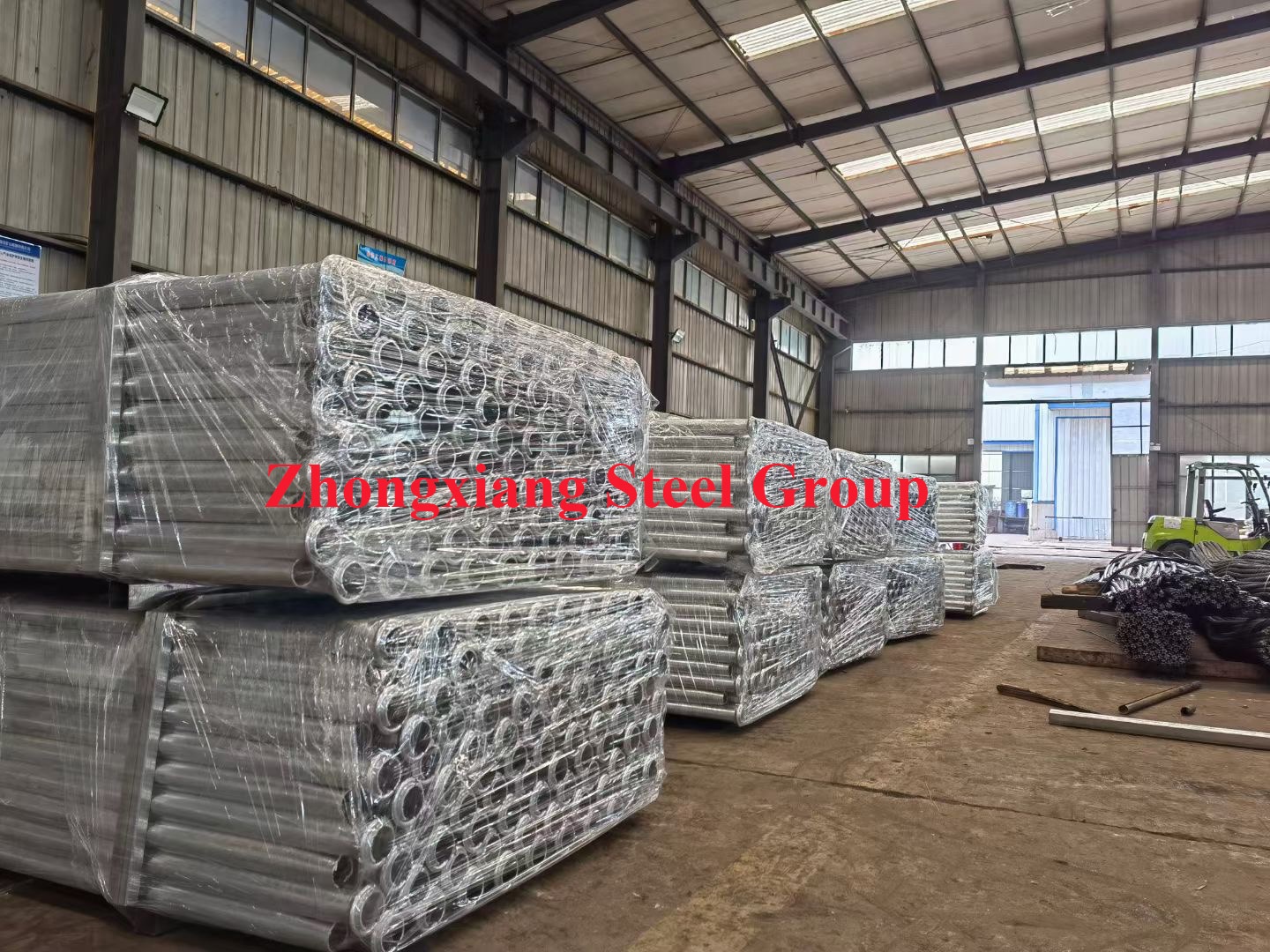

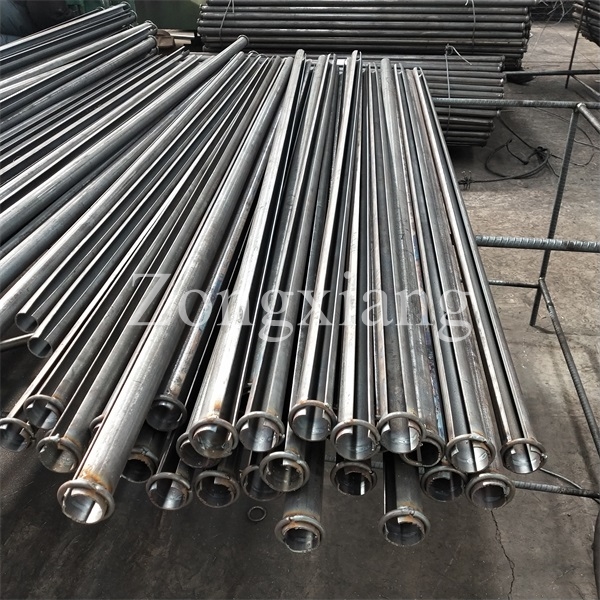

The split set (friction stabilizers) which is currently being used at mine is a high tensile steel tubular bolt rollformed into a "C" shape.

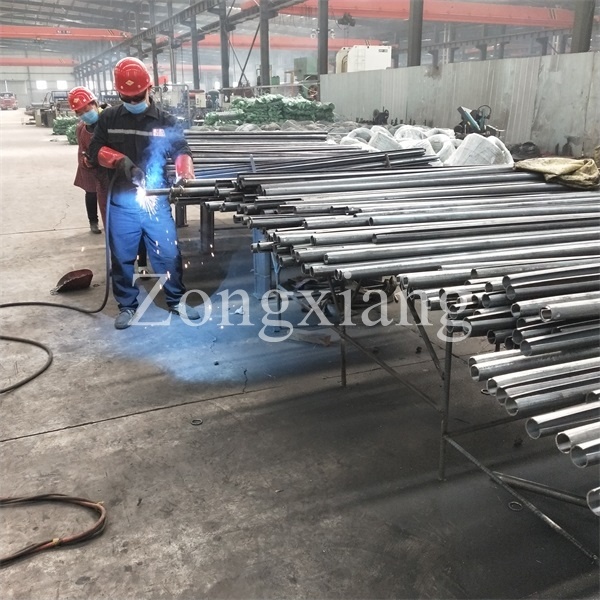

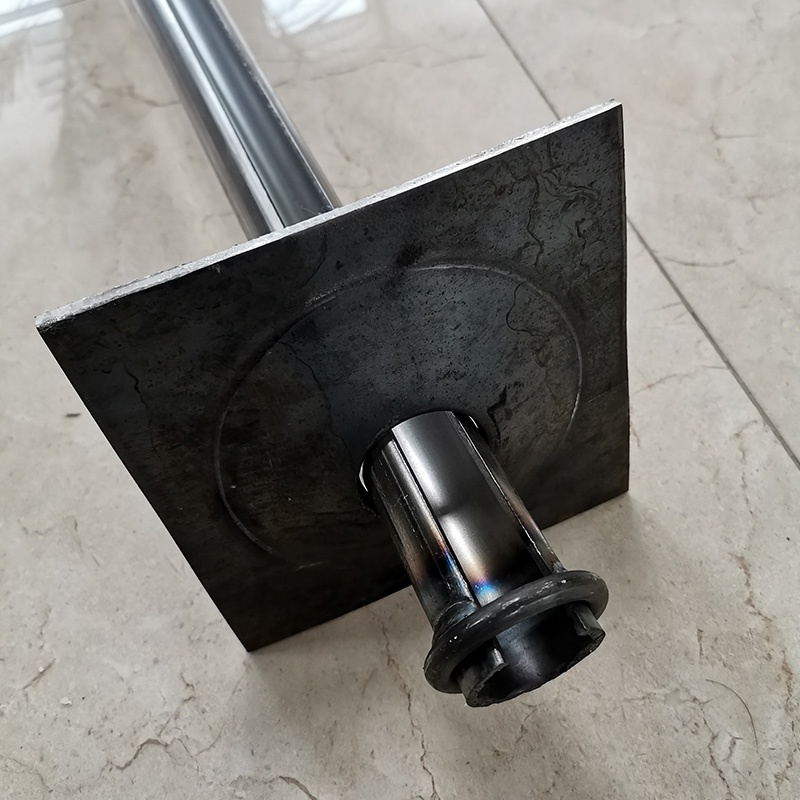

For the collar end of the tube a steel ring is fixed which will retain a plate on the installed tube to establish a compressive force against the rock surface. It conforms to ground shifts, grip even tighter.
The diameter sizes differ depending on the mining requirement.
Surface treatment: black or hot dip galvanized
| Characteristics | Standard Value | |||||
|---|---|---|---|---|---|---|
| Diameter (mm) | 30 | 33 | 39 | 40 | 43 | 47 |
| Length (mm) | 1400; 1600; 1800; 2000; 2400 | |||||
| Seam width (mm) | 9~14 | |||||
| Wall thickness (mm) | 2.2~3.0 | |||||
| Elongation (%) | >16 | |||||
| Anchoring (tons) | 3~16 | |||||

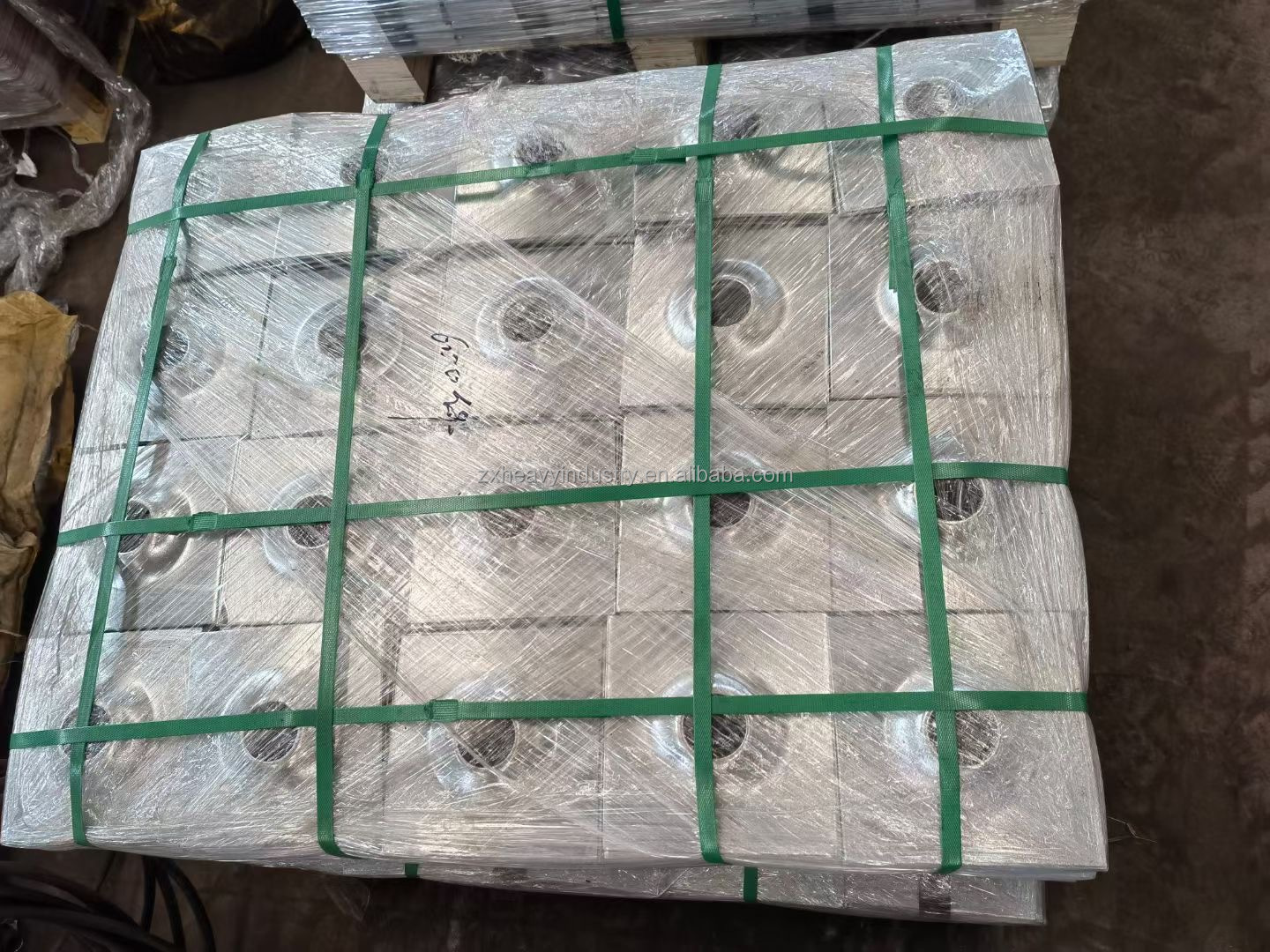

| Domed plate (mm) | 150*150*5; 150*150*4 | |||||
| Height (mm) | 15~25 | |||||
| Thickness (mm) | 4~6 | |||||

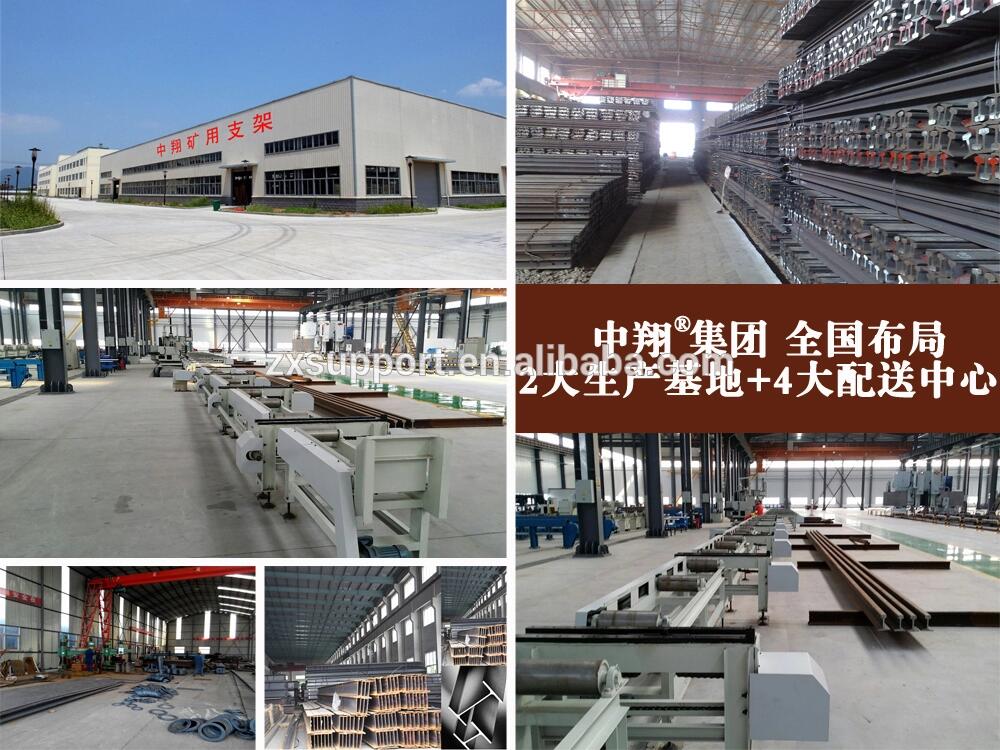

Our group has been engaged in steel trade plate processing nearly 20 years. We establish branch companies and processing plants in multiple regional hubs.
We strive to provide customers with more convenient, thoughtful, high quality service. And our products have been exported to countries and regions over the world, like Russia, India, Pakistan, Thailand, Korea, Brazil, South Asia and so on.
We have inventory, resources, and experience to meet your needs. Main products in our whole Group include as below:
GB light rail, heavy rail, crane rail and other steel rails
turnout switch, fish plates, rail clip, rail clamp, track spike, railbolt/nut/washer, rail pad and etc.
steel arch support, mining anchor bolts, mining plastic composite net, plate washer and etc
channel steel, angle steel, I-beam steel, mining I-beam, U-beam steel, H-beam steel, steel plate, etc
We have operated and sold steel products for more than 20 years. Our existing business scope includes rail products: Including many countries' standard rails and supporting railway fittings, including railway clamping plates, pressing plates, connecting plates, etc. Our products are exported to South Korea, Vietnam, Colombia, India, the Netherlands, the United States and some African countries.
