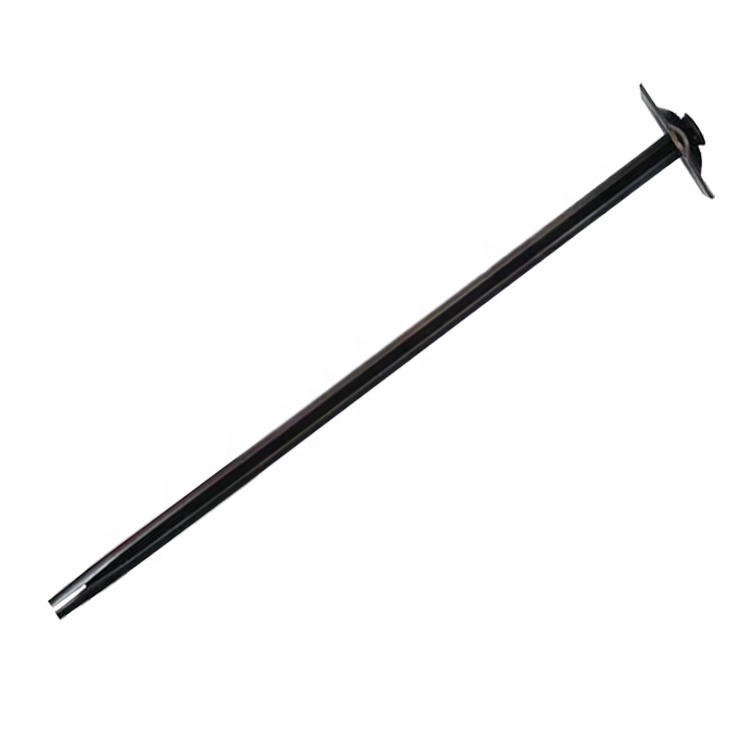

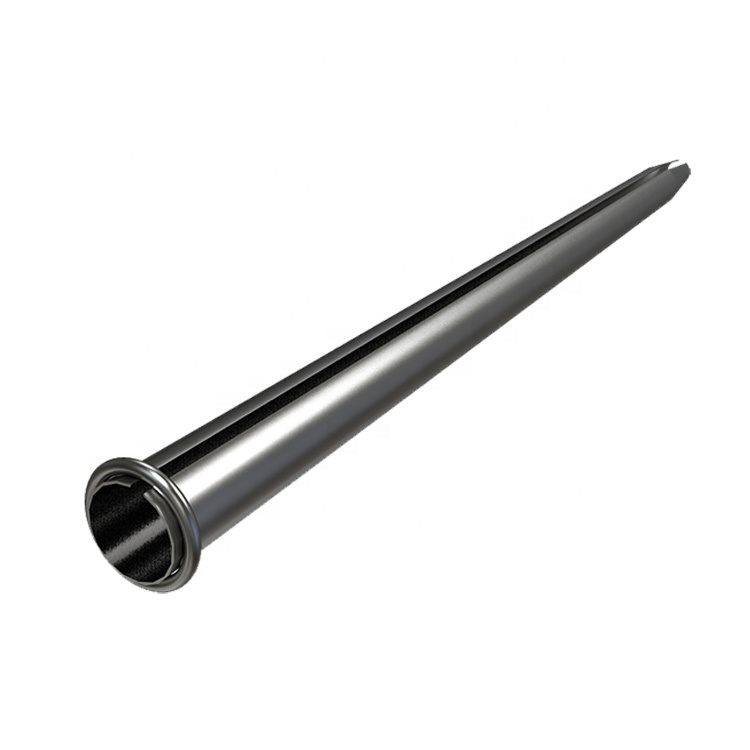

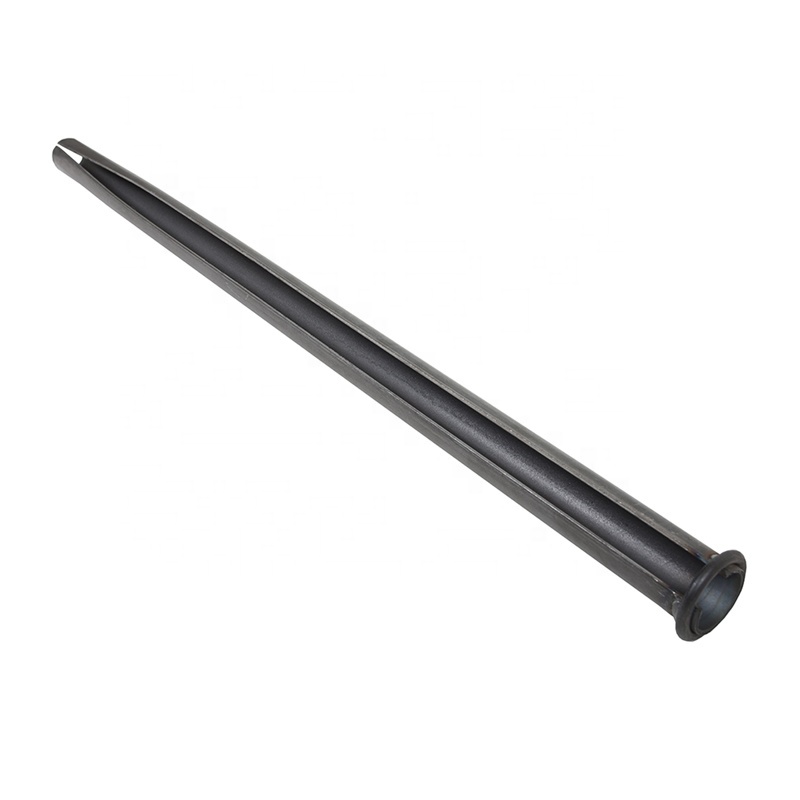

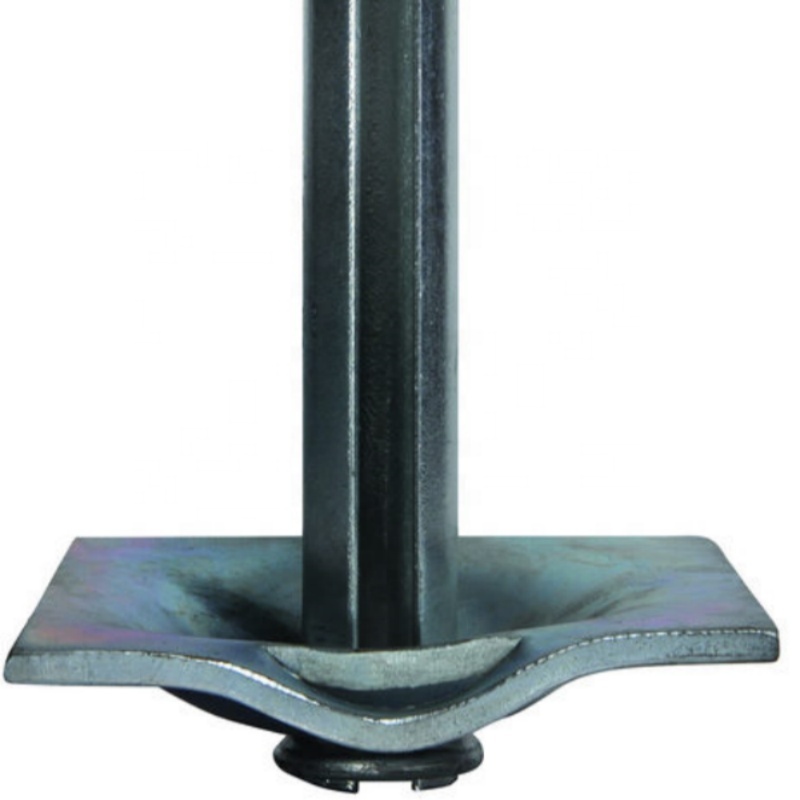

Mf-39 Full Length Stabilizer Split Set Friction Rock Bolt for Mine Tunnel Roof Slope Support

Product Description

Product Description
Mf-39 Full Length Stabilizer Split Set Friction Rock Bolt for Mine Tunnel Roof Slope Support
1. High strength
Split set rock bolt is made of high-strength steel pipe, which has high tensile strength and bending strength and can withstand large loads.
2. Good stability
The split set bolt is fixed in the formation by anchoring technology, which can effectively enhance the stability of the formation and prevent the formation from sliding and collapsing.
3. Convenient construction
Split set rock bolt construction is simple, does not require large mechanical equipment, only need drilling, grouting and anchoring and other simple processes can be completed.
4. Wide range of use
Split set rock bolt is used in various geological conditions, including weak strata, karst strata, fault zones, etc., which can meet the needs of different projects. Under the expansion of the center, the application range of pipe joint bolt is also expanding. With the acceleration of the urban process, the utilization of underground space is more and more extensive, and the application in underground engineering is also more and more extensive. For example, in the subway, tunnel, underground shopping malls and other projects, pipe joint anchor can be used for formation reinforcement, tunnel support, underground space separation and other aspects, in addition, in mining, water conservancy, highway and other fields, pipe joint anchor also has a wide range of applications.

As an efficient, stable and convenient geological support material, split set rock bolt has a wide application prospect. With the continuous development of technology and the continuous expansion of application scope, it is believed that the position of pipe joint bolt in the field of geological support will be more and more important.

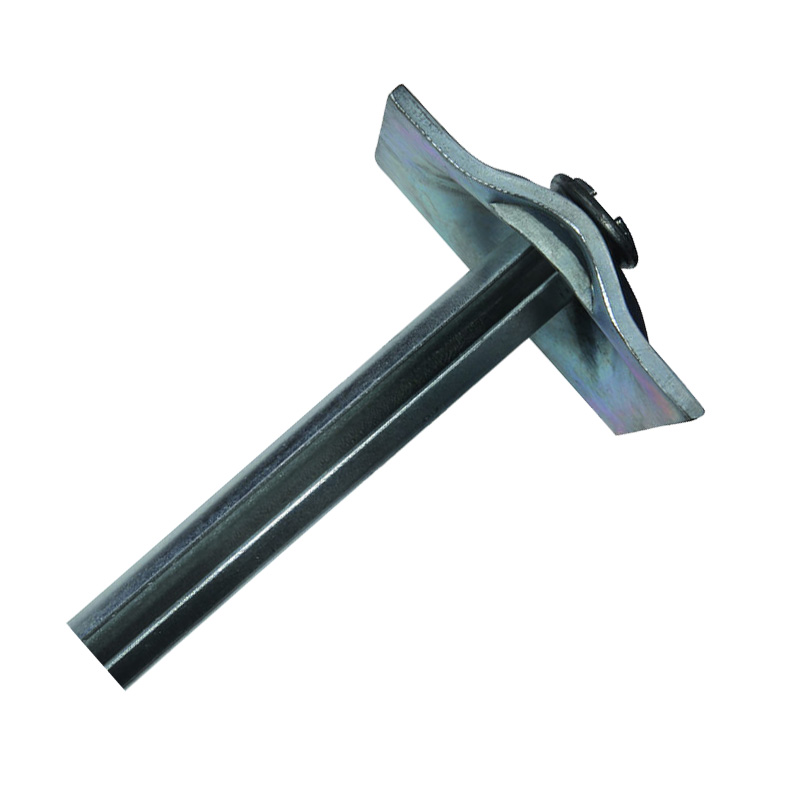

Split Set Friction Rock Bolt Overview
Product Pictures

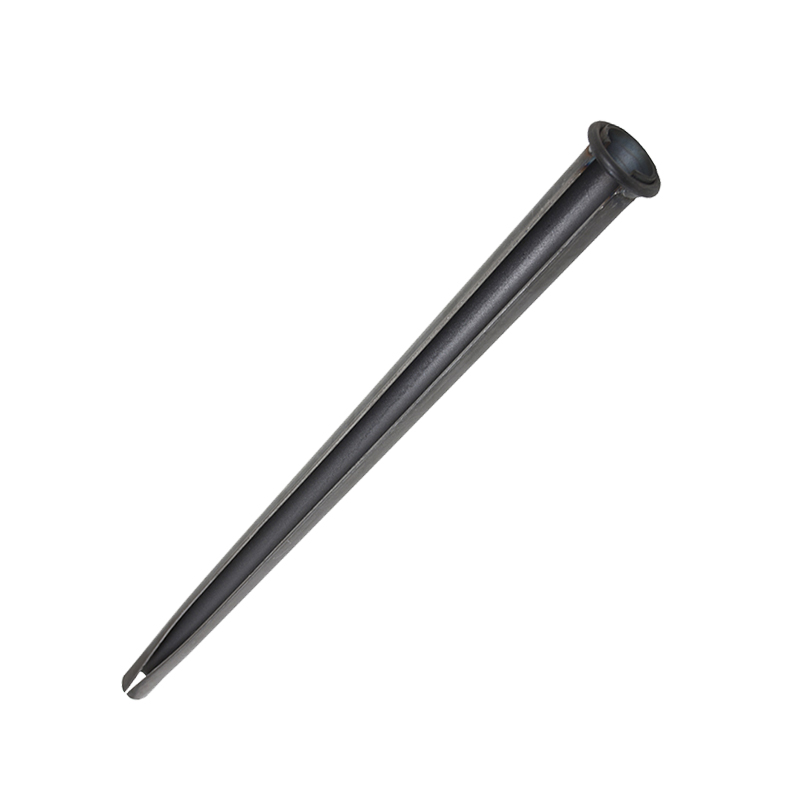

Normal treatment Split Set Bolt
Normal treatment

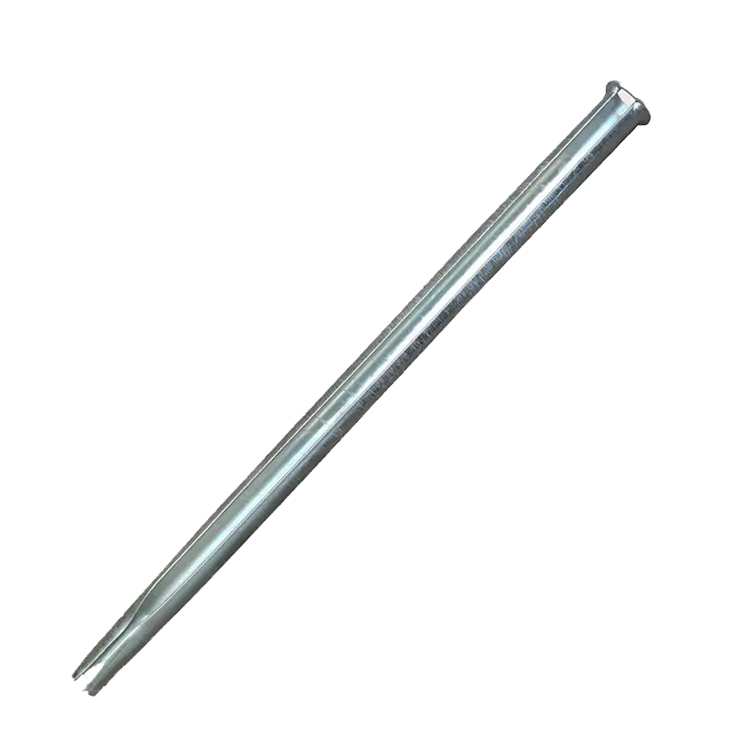

Galvanized Split Set Bolt
Galvanized

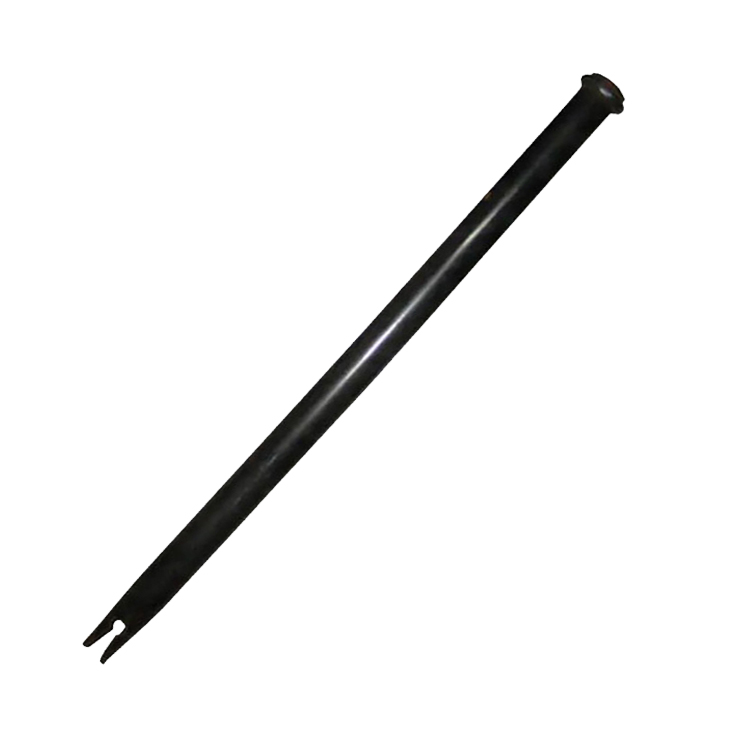

Black treatment Split Set Bolt
Black treatment

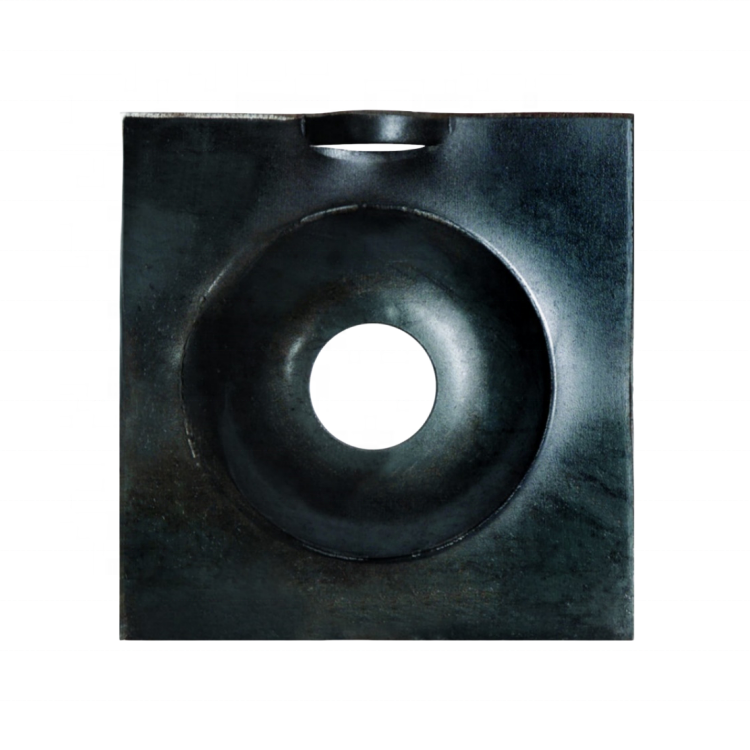

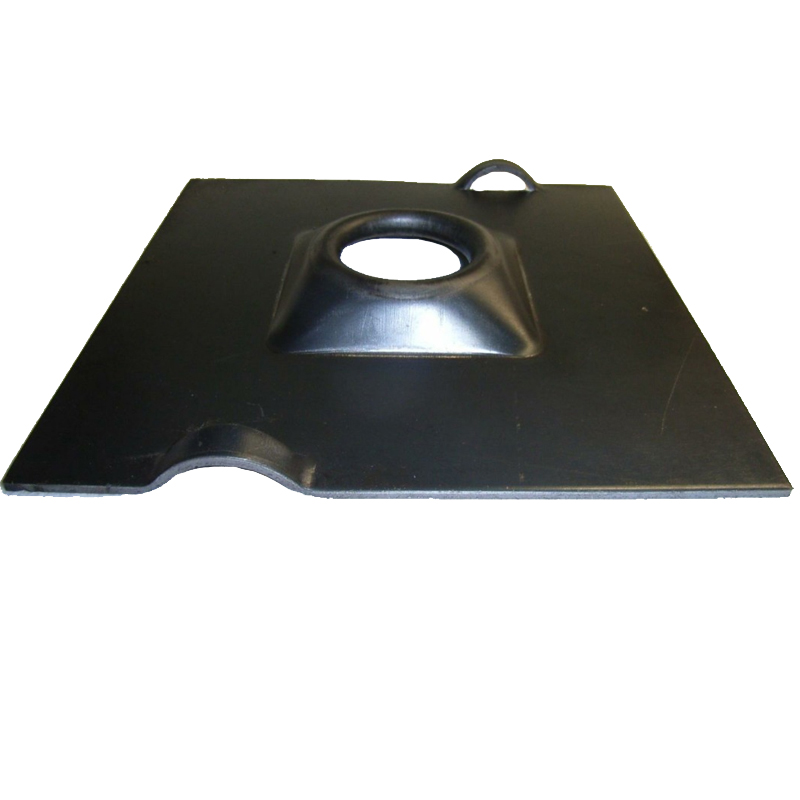

Friction Bolt Plate Option 1
Plate

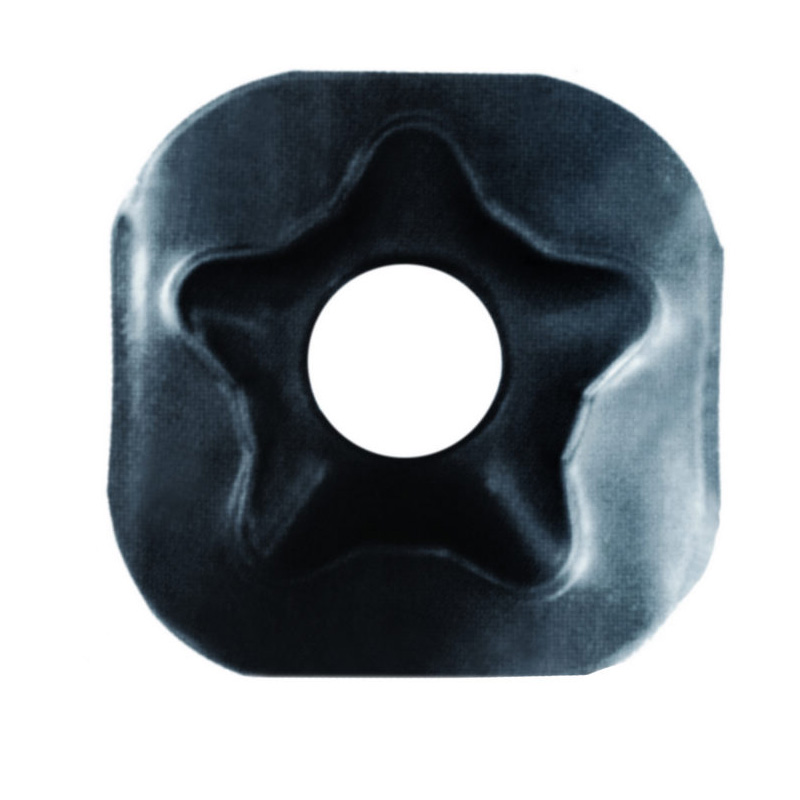

Friction Bolt Plate Option 2
Plate

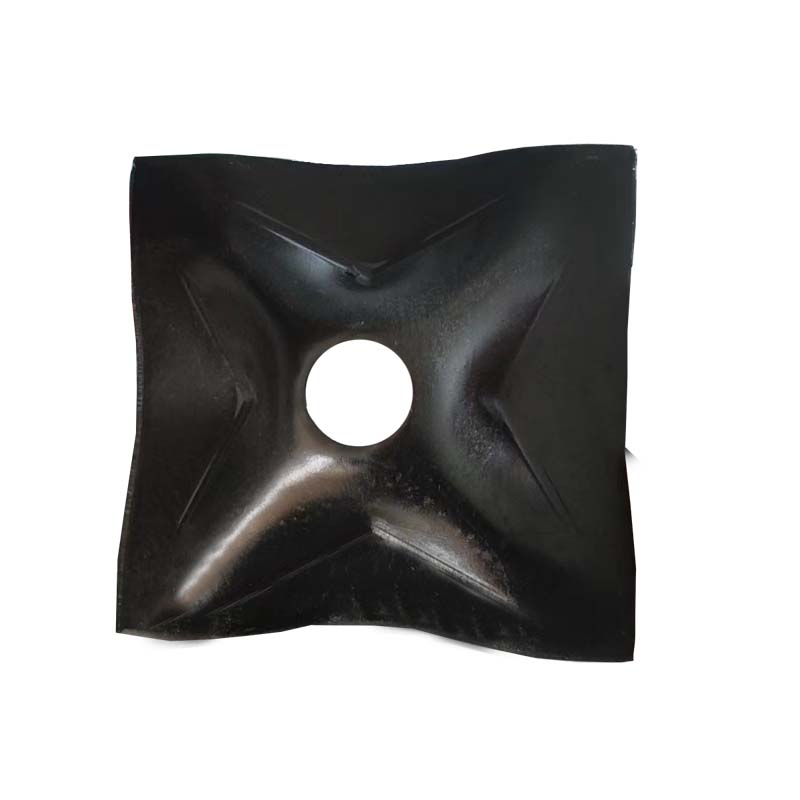

Friction Bolt Plate Option 3
Plate
Warehouse waiting for delivery

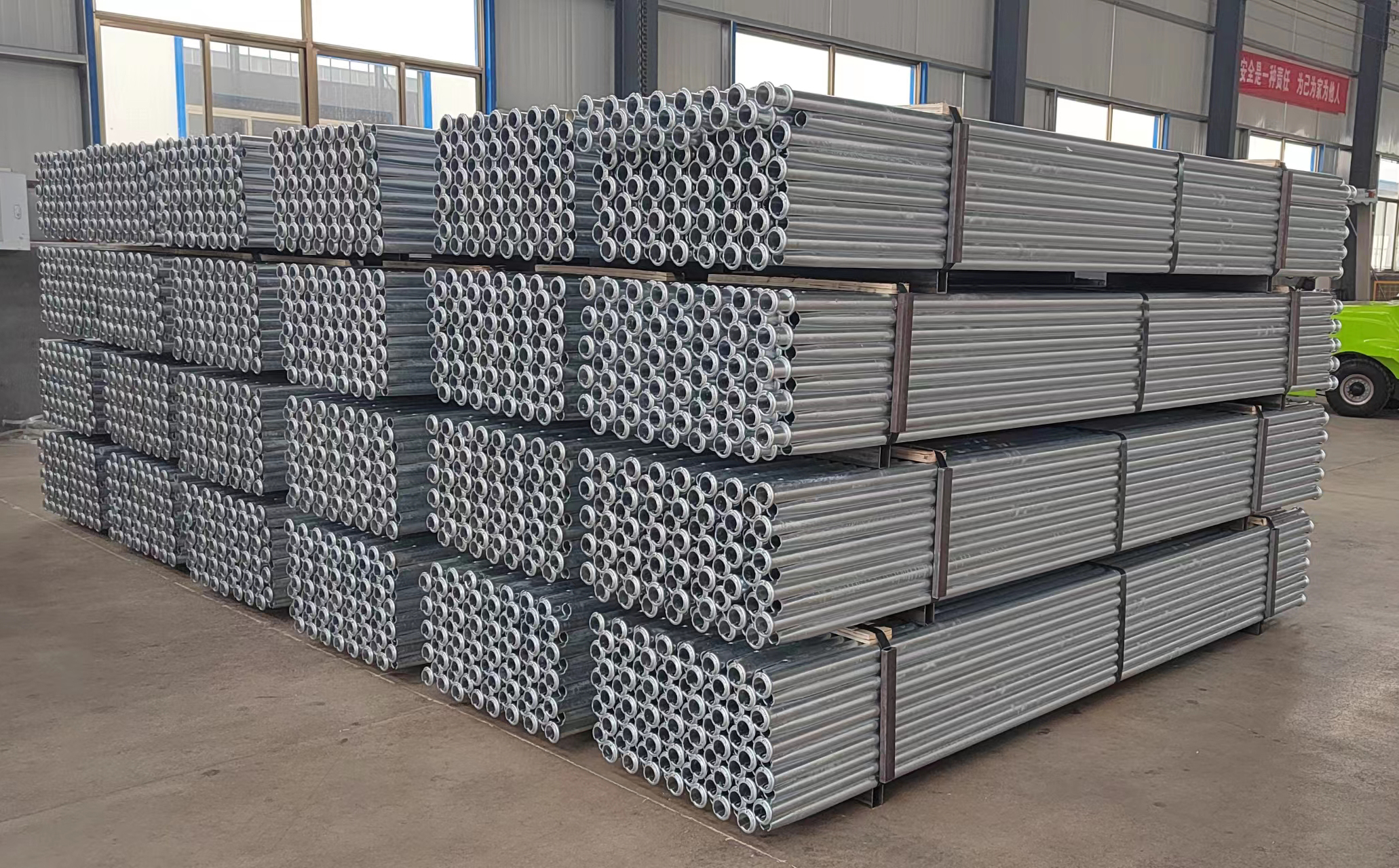

Warehouse stock 1

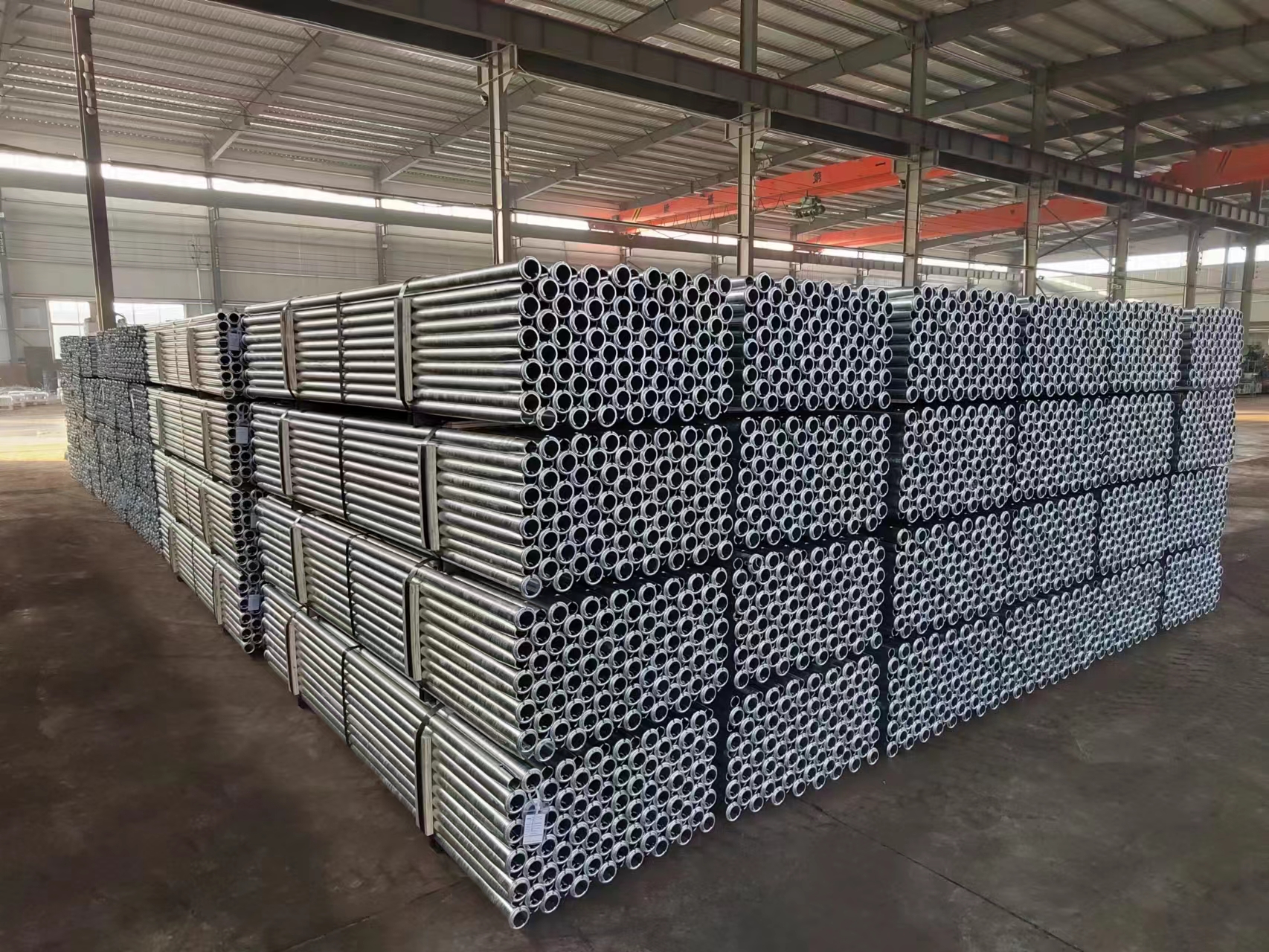

Warehouse stock 2

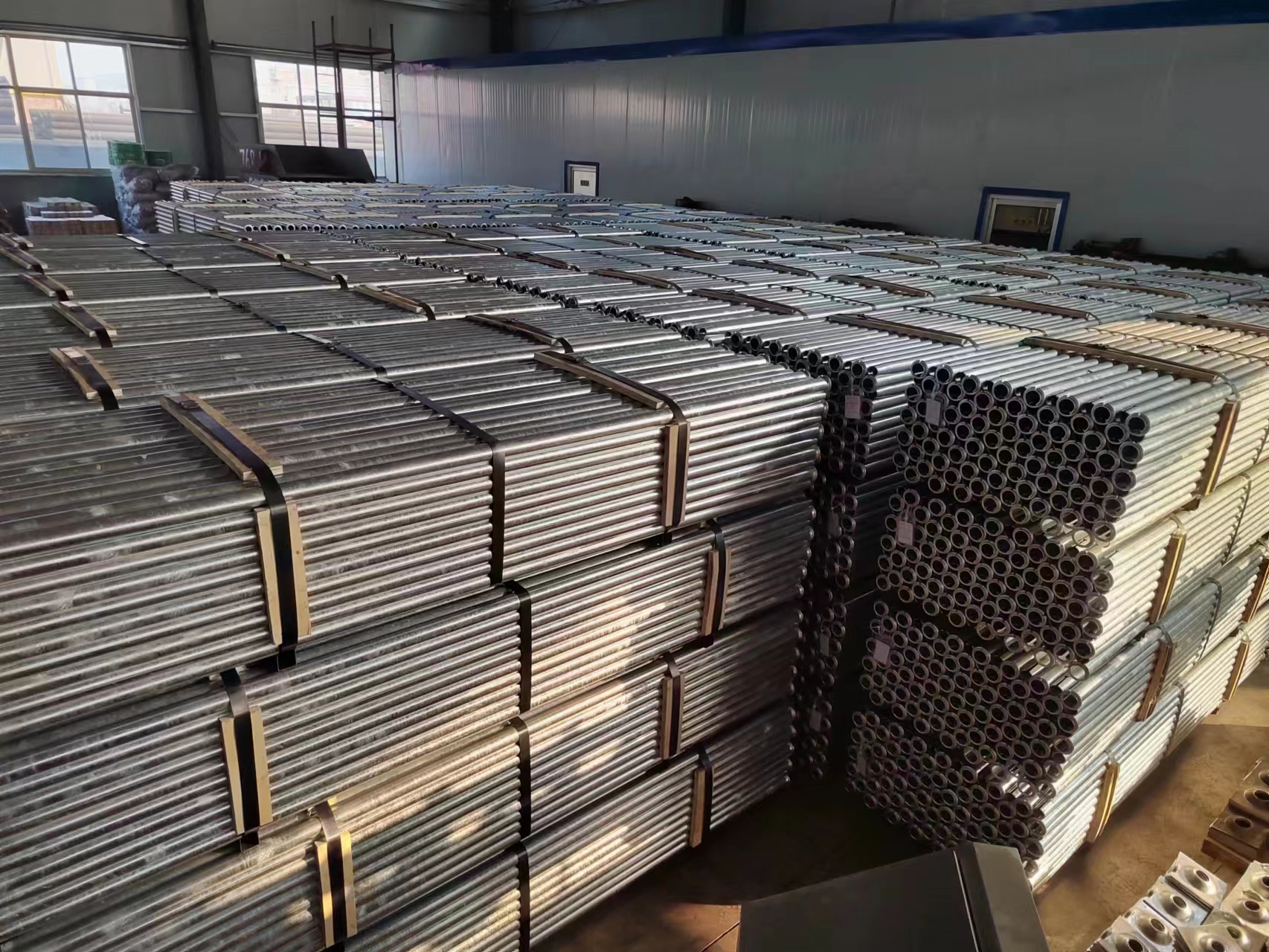

Warehouse stock 3

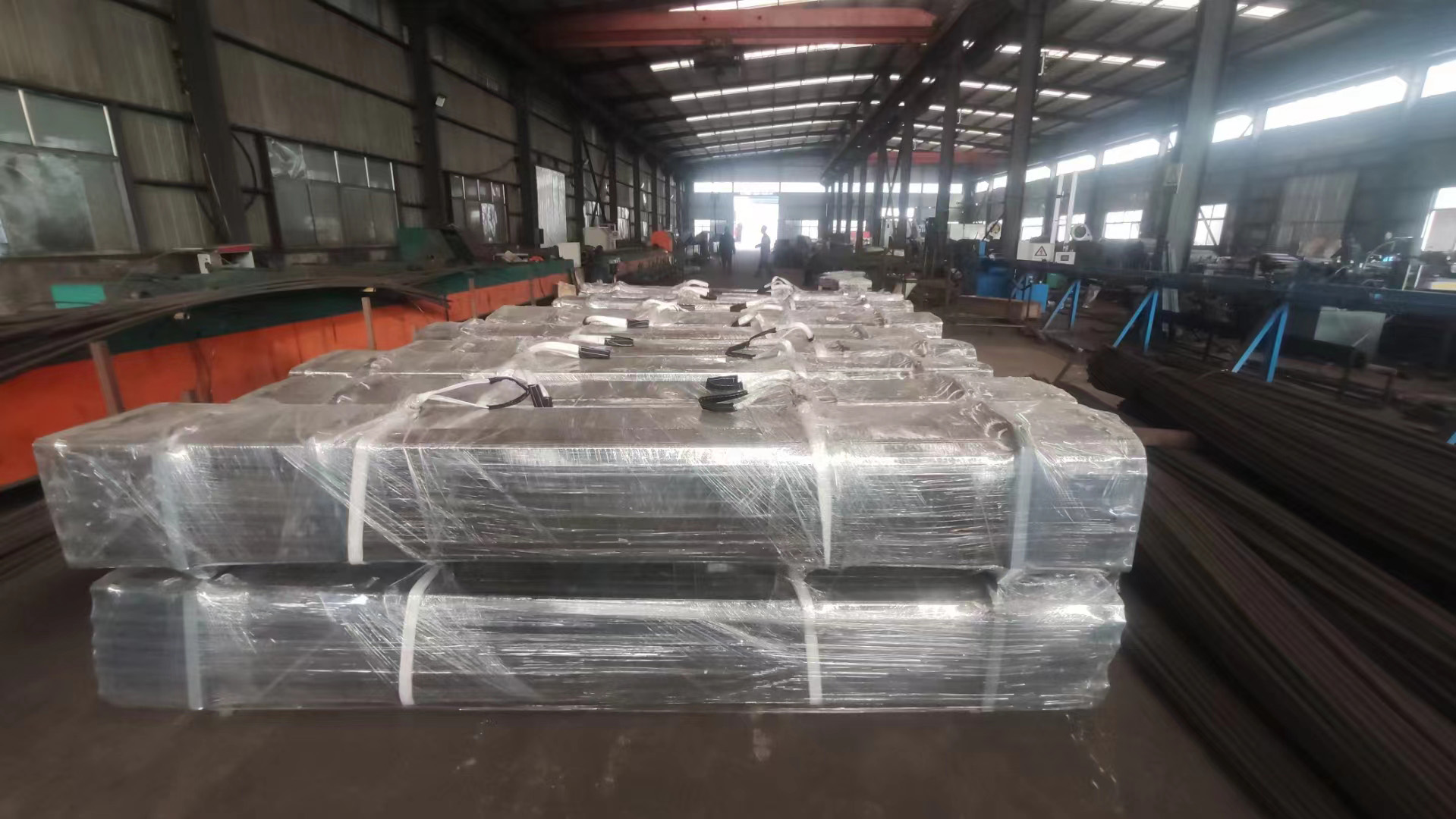

Warehouse stock 4
Product Specifications
Dia. 33mm 39mm 42mm 47mm
Thickness 1.8-3.2mm (Or as per customer requirements)
Slot size 6-8mm (Or as per customer requirements)
Min. Yield Strength 78KN 88KN 95KN 124KN
Min. Breaking Strength 103KN 116KN 123KN 160KN
Max. Breaking Strength 117KN 132KN 140KN 186KN
Elongation >16% >16% >16% 16%
Anchoring 4-7Tons 5-8Tons 5-8Tons 6-12Tons
Sales Network
Global Sales Network Map
Product Packaging

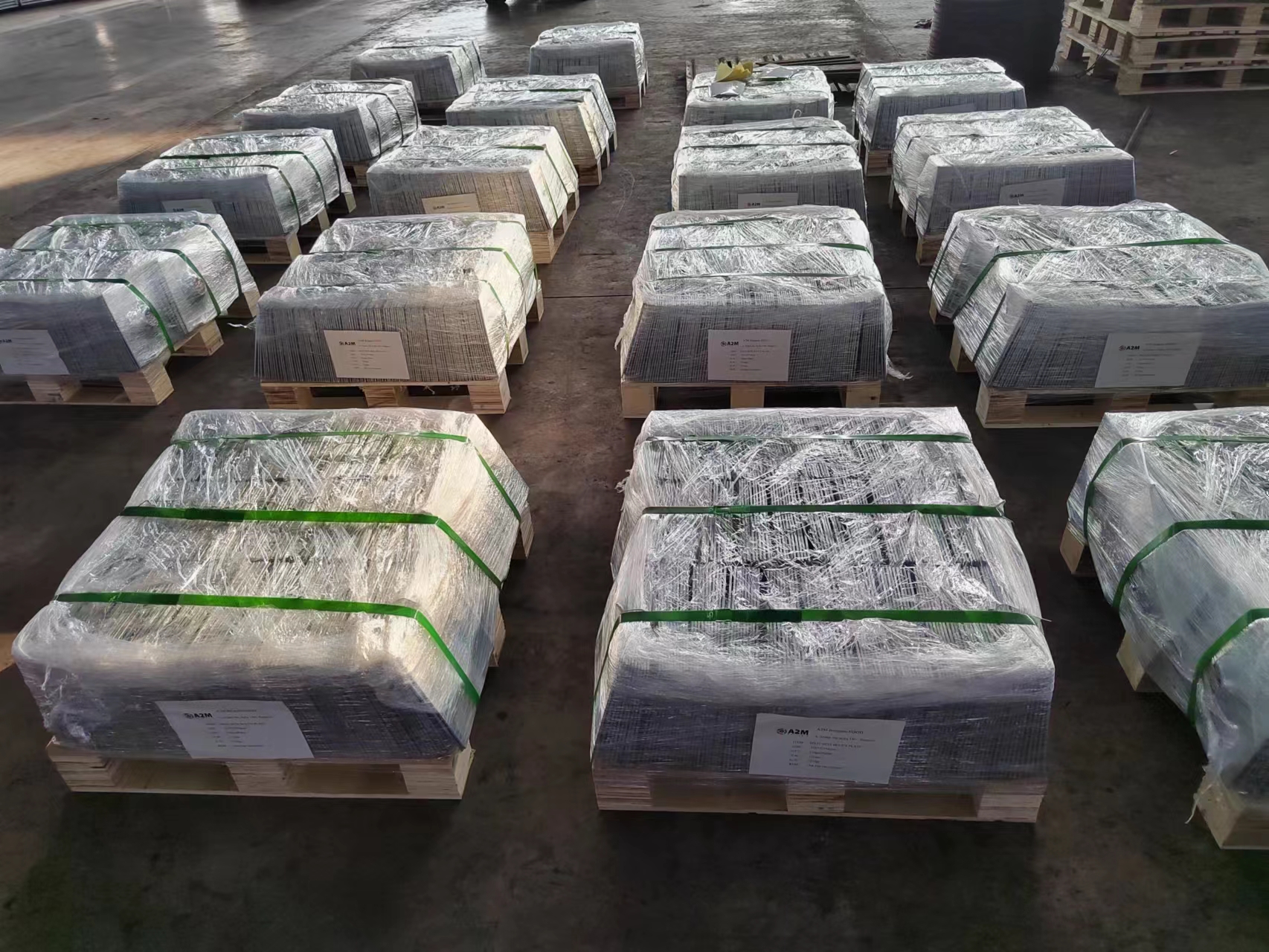

Packaging method 1

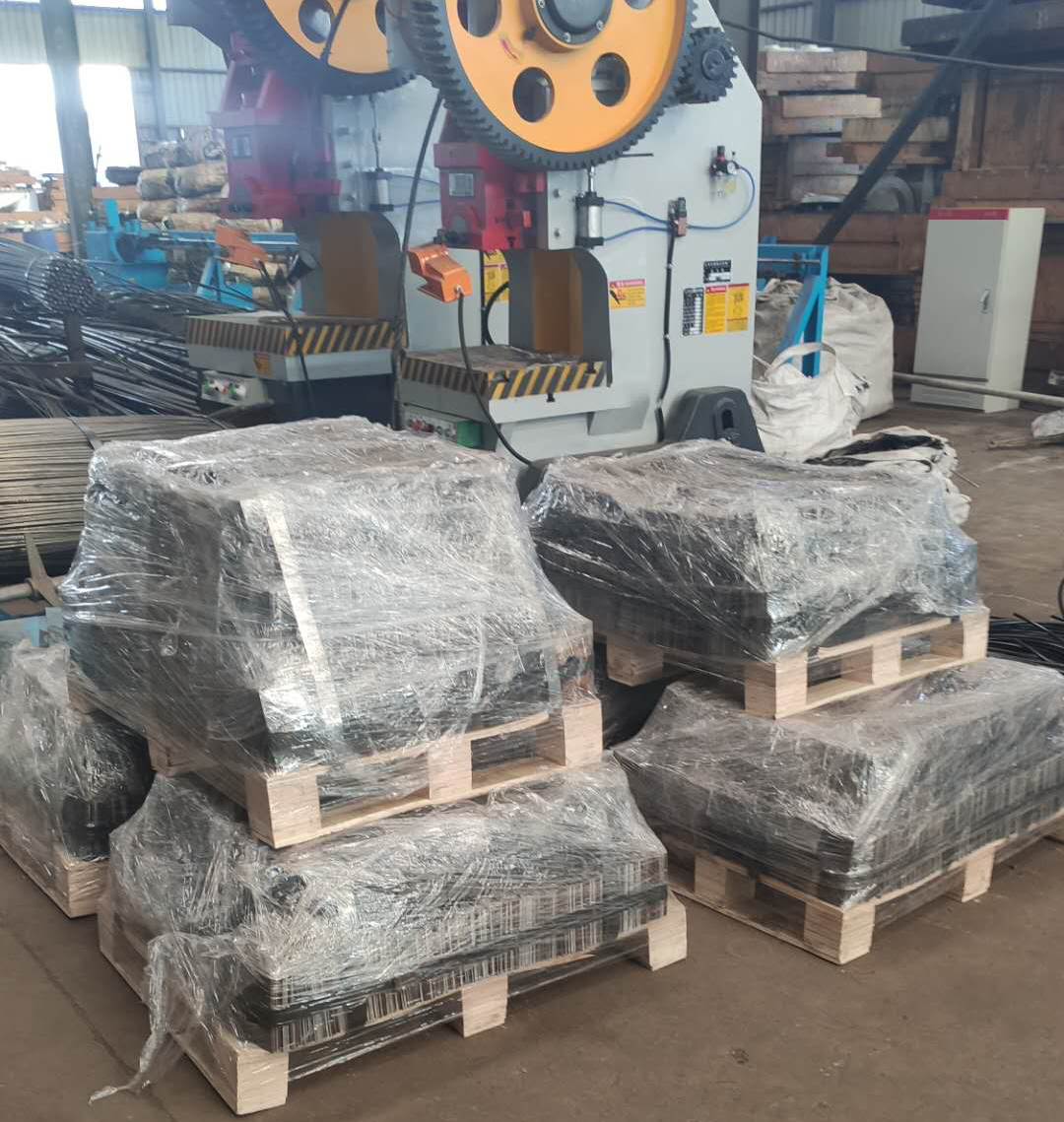

Packaging method 2

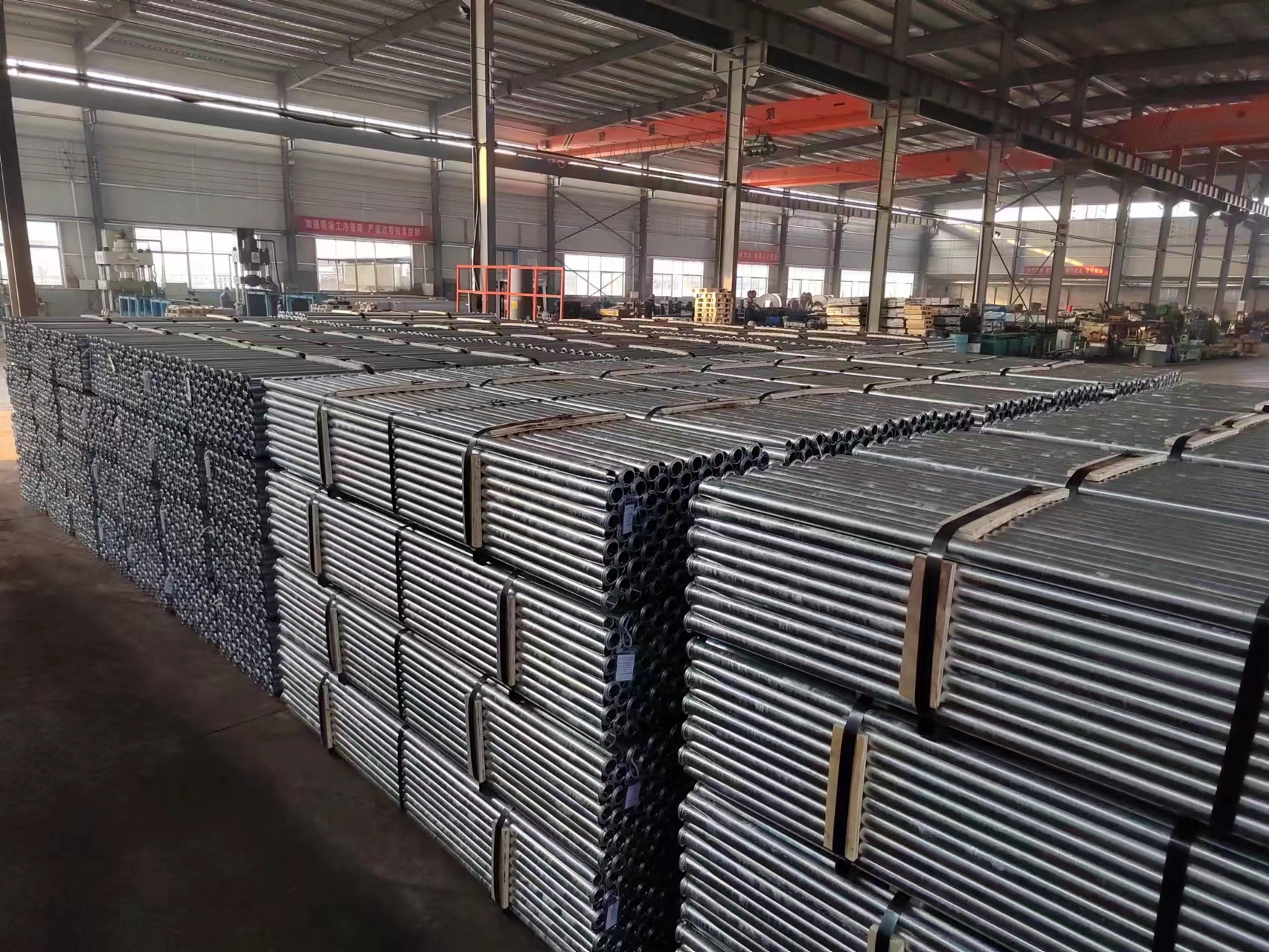

Packaging method 3
Shipping

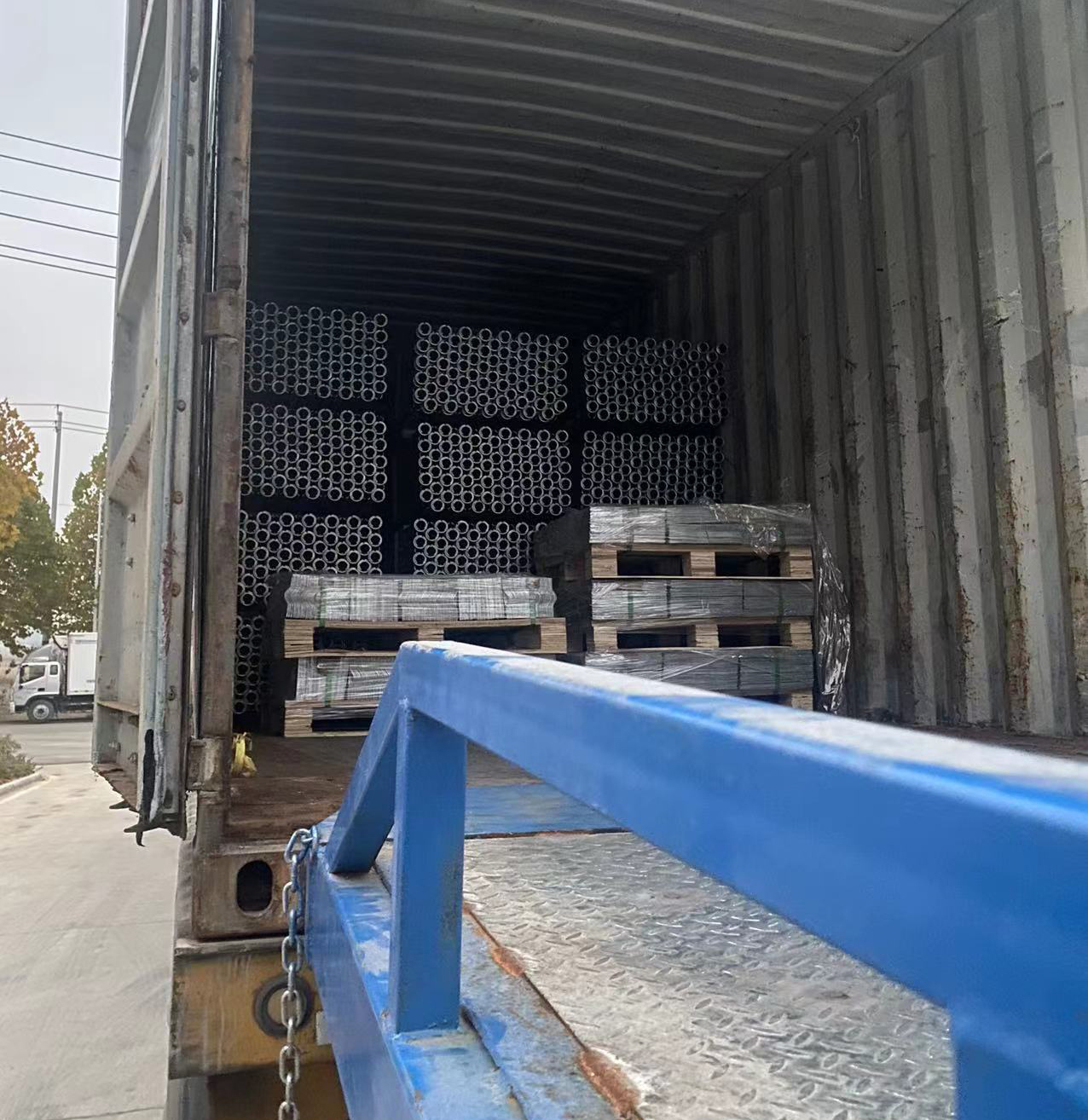

Shipping logistics 1

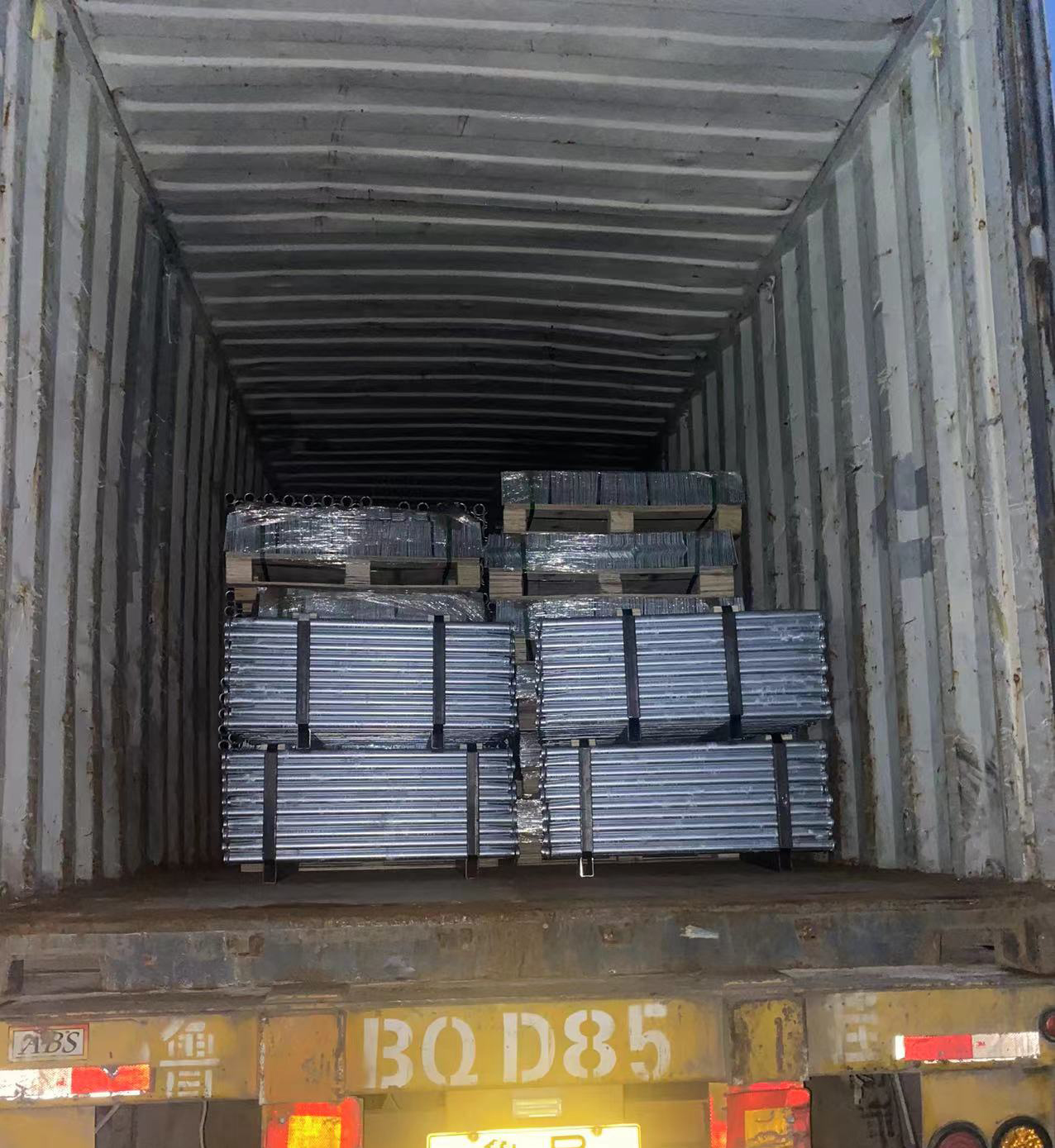

Shipping logistics 2

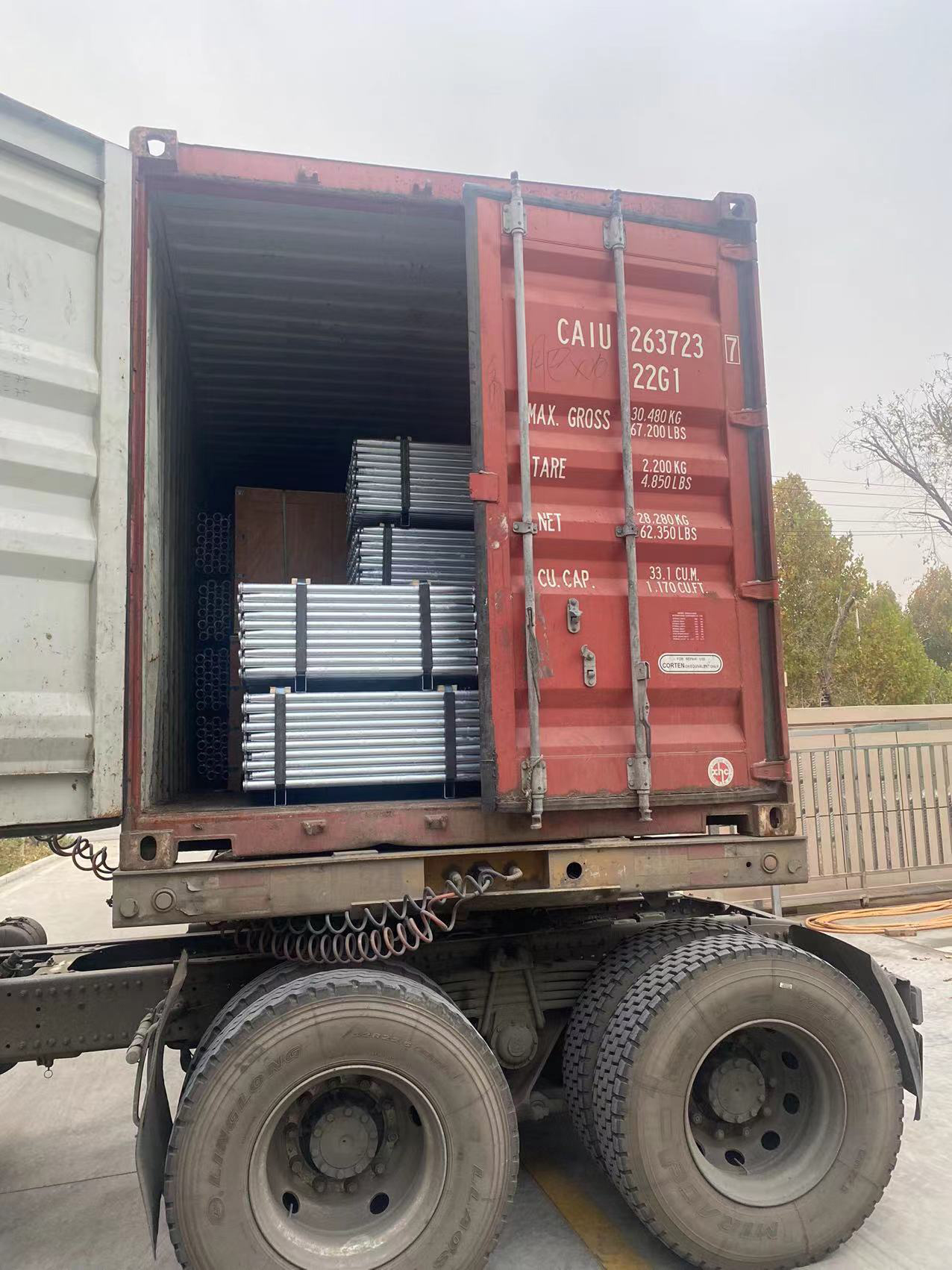

Shipping logistics 3
Why Choose Us
Company Advantage
Advanced Technology & Equipment
The company has advanced technology and equipment, which enables the company to produce high-quality products and obtain higher competitiveness in the market.
Talent Advantage
The company has a large number of high-quality talents, which makes the company have higher efficiency and innovation ability in research and development, production, management and other aspects, and can better meet the market demand.
Channel Advantage
The company has a wide range of sales channels and networks, which enables the company to better cover the market and improve sales performance and market share.
Cultural Advantages
The company has a good corporate culture and values, which enables the company to better attract and retain talents, while improving the sense of belonging and loyalty of employees, and promoting the long-term development of the company.
Frequently Asked Questions
What are the primary benefits of the Mf-39 Split Set Friction Rock Bolt?
The rock bolt features high tensile and bending strength to support large loads, provides excellent stability via mechanical anchoring, allows simple construction without heavy machinery, and performs reliably across varied geological strata.
In which projects and ground types can this friction rock bolt be applied?
It is designed for weak strata, karst strata, and fault zones. It is commonly used in subways, tunnels, underground shopping malls, mining sites, water conservancy projects, and highway construction.
What are the standard dimensions and customize options?
Standard diameters include 33mm, 39mm, 42mm, and 47mm. Thicknesses range from 1.8mm to 3.2mm, and slot sizes range from 6mm to 8mm. Both thickness and slot dimensions can be customized to match client requirements.
What types of surface treatments are available?
We offer three distinct surface treatments: Normal treatment, Galvanized coating, and Black treatment to satisfy varied corrosion-resistance and operational demands.
What are the anchoring force ratings for the rock bolt?
Anchoring force capabilities vary by diameter size: 33mm (4-7 Tons), 39mm (5-8 Tons), 42mm (5-8 Tons), and 47mm (6-12 Tons), ensuring robust support for different engineering loads.
