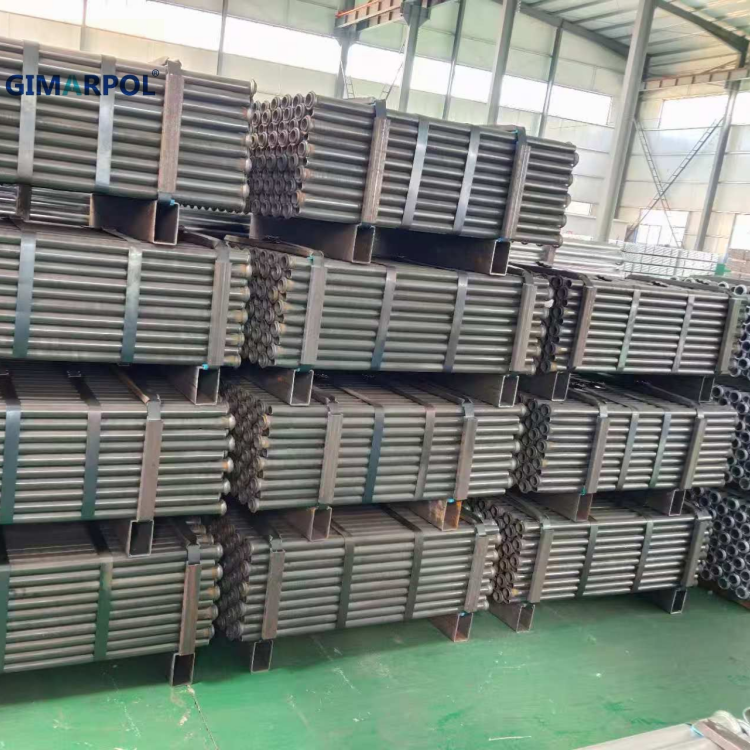

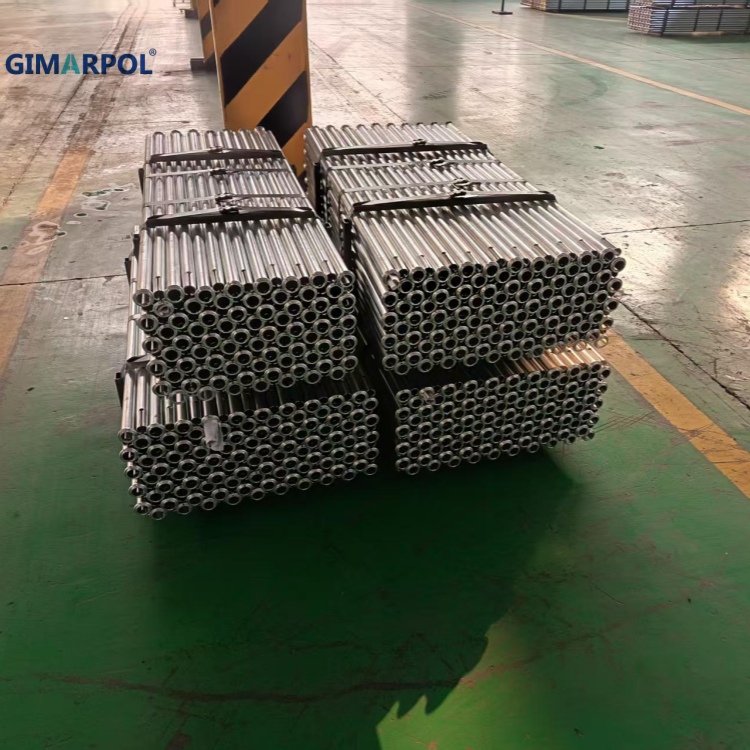

Mining Rock Split Set Seam Pipe Friction Stabilizer Anchor Bolt for Supporting Mine Tunnel
Product Description
Below is the standard installation procedure for optimal support in mining tunnels:
-
1
Choose the proper bit and drill a hole according to bolt diameter, bolt length, and drilling procedure. The hole length must be at least 150mm longer than the length of the friction bolt.
-
2

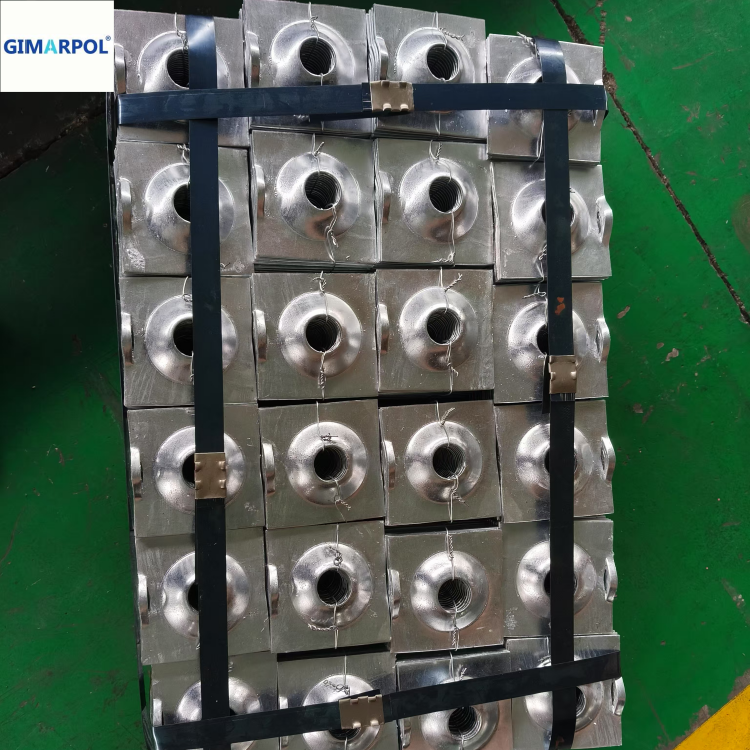

Place a bearing plate onto the friction bolt with the dome against the ring and the tapered end at the front.
-
3
Friction bolts must be installed as perpendicular to the rock surface as possible.
-
4
Put the driver dolly into the bolt and drive the friction bolt into the hole until the plate is firmly secured against the rock surface.
-
5
Do not pound on the friction bolt once the plate tightly fixes against the rock surface, to avoid damaging the friction bolt end.
-
6
Pull tests shall be performed to determine the initial anchorage capacity of the friction bolts after installation.

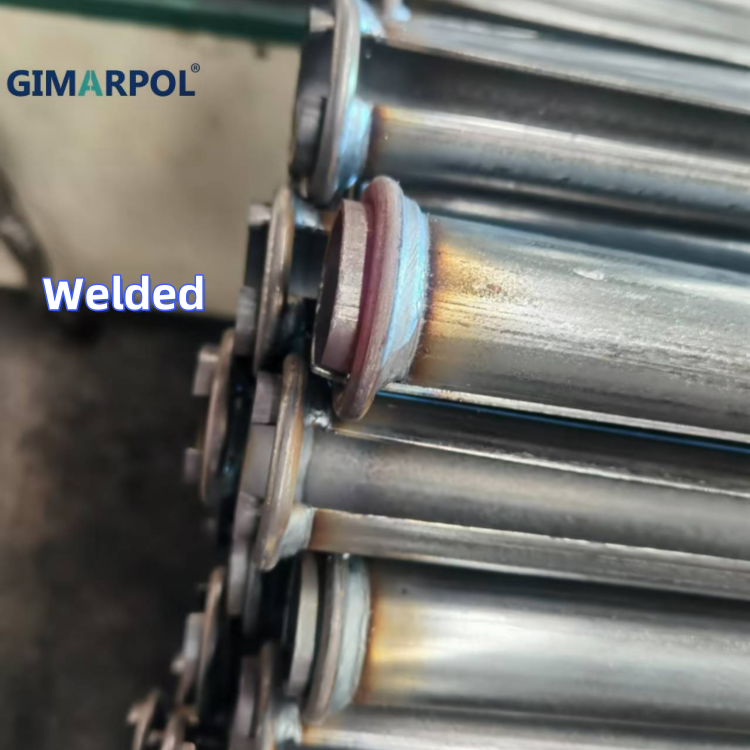

Design Structure: The friction bolt is roll-formed into a "C" shape using high-tensile steel bands. One end is tapered for easy and quick insertion into the pre-drilled hole, while the other end features a securely welded ring to hold the bearing plate tightly against the rock surface.
Specification
| Series |
Specifications (mm) |

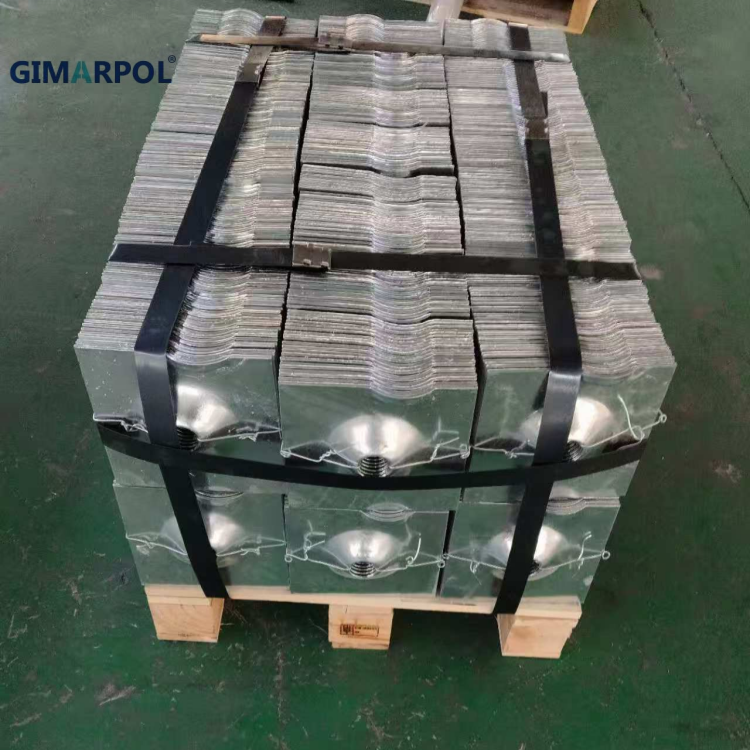

High-strength Plate (global) |
Length (mm) |
| MF-33 |
33 * 2.5 |
120 * 120 * 5.0 |
914 - 3000 |
| MF-33 |
33 * 3.0 |
120 * 120 * 6.0 |
914 - 3000 |
| MF-39 |
39 * 2.5 |
120 * 120 * 5.0 |
1200 - 3000 |
| MF-39 |
39 * 3.0 |
120 * 120 * 6.0 |
1200 - 3000 |
| MF-42 |
42 * 2.5 |
120 * 120 * 5.0 |
1400 - 3000 |
| MF-42 |
42 * 3.0 |
120 * 120 * 6.0 |
1400 - 3000 |
| MF-47 |
47 * 2.5 |
120 * 120 * 6.0 |
1600 - 3000 |
| MF-47 |
47 * 3.0 |
120 * 120 * 6.0 |
1600 - 3000 |

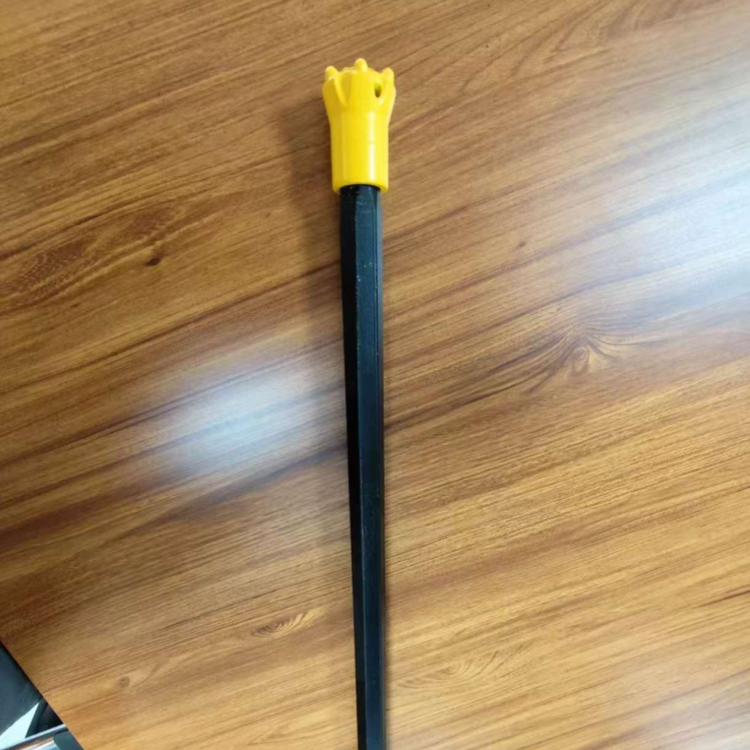

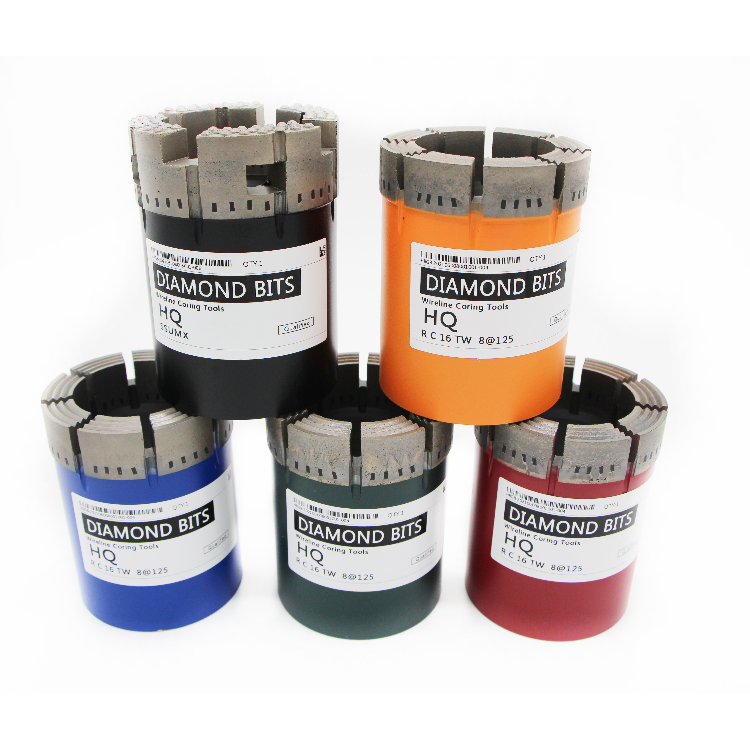

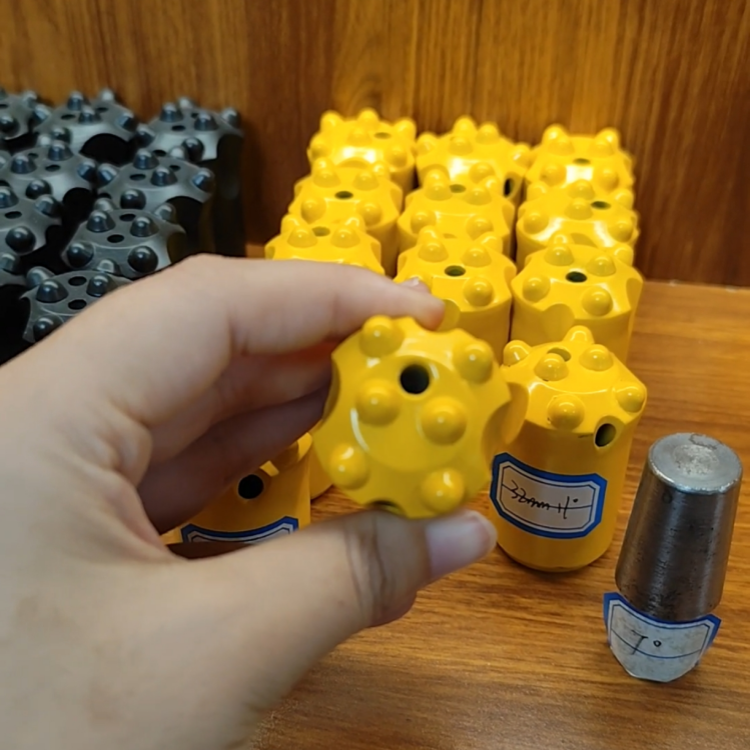

Recommend Products
Factory Profile
Our manufacturing facility is specialized in production and export of high-grade coal mining machinery and rock support systems. The product catalog includes hydraulic and pneumatic drill machines, roof bolters, and drilling consumables like drill bits and drill rods. Equipped with over a decade of production experience, professional engineering staff, and rigorous quality control measures, we focus on delivering comprehensive tunnel and mine support solutions. The manufacturing outputs have been exported to over 30 countries and regions worldwide, including Southeast Asia, the United States, Germany, the United Kingdom, South Africa, Poland, Russia, and Central Asia, gaining a solid reputation for durability and performance.
Packing & Delivery
We handle packaging and logistics professionally to ensure all orders arrive safely and on schedule:
Packaging Method
Non-fumigation wooden boxes are standard to prevent transit damage and satisfy customs requirements.
Delivery Lead Time
Normally 7-10 days after receiving your down payment. Multiple delivery channels by sea, air, or express are fully supported.
Recommended Shipping Volumes:
- Small quantities (less than 2 sets): Express delivery (DHL, UPS, TNT, FedEx, EMS) or customer designated carrier.
- Medium orders (less than 5 sets): Air cargo or customer designated carrier.
- Large bulk orders (more than 10 sets): Sea freight or customer designated carrier.
Frequently Asked Questions
What is your typical delivery lead time?
Generally, standard products take about 20 days to manufacture. If the items are in stock, they can be shipped out within 3 days.
Which payment methods do you accept?
We accept T/T, L/C, Western Union, MoneyGram, and PayPal payments.
What are the available shipping options?
Based on the order volume, we can ship goods by Express, Air, Sea, or Train. We can also coordinate with your designated shipping agent.
How is product quality controlled?
We conduct strict checking and testing procedures for each item before dispatch to ensure high quality.
Do you accept sample orders?
Yes, we welcome sample orders so that you can verify and test our product quality before making a bulk commitment.
What is your after-sales and warranty policy?
Once any quality or quantity discrepancy is confirmed, we will provide equivalent compensation. We pledge to reply to all queries within 24 hours.
