High Quality Rock Drilling Tools R32 Thread Button Bit
✦

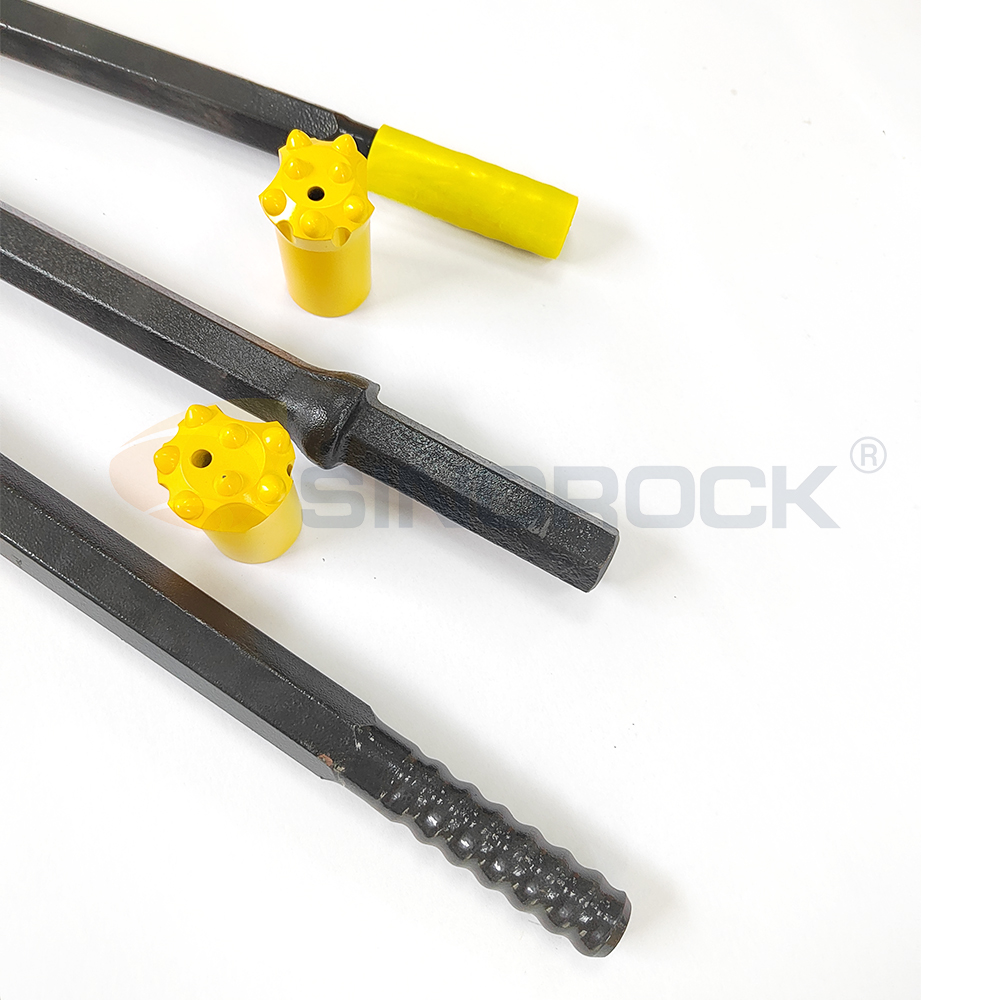

Drill rod types: extension rod, MF rod, and guide rod;
✦
Length: 3050mm, 3660mm, 4265mm, 6095mm, etc;
✦
Rod size: H32, H38, D32, D39, D46, D52, D56, D64, D76, and D87;
✦
Thread size: R32, R38, T38, T45, and T51;
✦
5 types of drill bits: cross bit, button bit, drop center button bit, retrac button bit, and drop center retrac button bit;
✦
Bits diameter: button bit – 51mm to 127mm; cross bit – 50mm to 65mm.
| Type |
Bit Dia. |
Button NO. × Button Size (mm) |
Gauge Tooth Angle |
Thread Type |
Weight |
| mm |
inch |
Gauge |
Front |
kg |
| Button bit |
51 |
2″ |
6×10 |
3×9 |
35° |
R32 |
1.1 |
| 57 |
2 1/4″ |
6×11 |
3×10 |
35° |
R32 |
1.2 |
| 51 |
2″ |
6×10 |
3×9 |
35° |
R32 |
1.1 |
| 64 |
2 1/2″ |
8×11 |
4×10 |
30° |
R32 |
1.5 |
| 76 |
3″ |
8×11 |
4×11 |
35° |
R32 |
2.4 |
| 64 |
2 1/2″ |
8×11 |
4×10 |
35° |
R32 |
1.5 |
| 76 |
3″ |
8×11 |
4×11 |
35° |
R32 |
2.4 |
| 76 |
3″ |
8×11 |
5×10 |
35° |
R32 |
2.4 |
| 76 |
3″ |
8×11 |
6×10 |
35° |
R32 |
2.4 |
| Retrac button bit |
51 |
2″ |
6×11 |
3×10 |
30° |
R32 |
1.3 |
| 64 |
2 1/2″ |
8×12 |
4×11 |
30° |
R32 |
2.5 |
| 51 |
2″ |
6×11 |
3×10 |
30° |
R32 |
1.3 |
Self Drilling Anchor Bolt is mainly used in slope stabilization, tunneling pre-support, foundations with micropiles, it is also widely used in the railway system, metro project etc.
Binjiang West Road Pedestrian Mall, China
Xingyi Noraml University for Nationalities Retaining Wall Reinforcement, China
Excavation Retaining of housing construction for a commercial district in the Middle East
Slope Retaining for Santiago expressway project in Chile
Slope Retaining for housing construction in Greenville, USA
Slope Retaining of Hawaii Highway Project
Root Piling in Zhengzhou-Wanzhou section of the Zhengzhou-Chongqing
Pre-support with umbrella arch method in YuxiMohan section, China
Shotcrete-bolt Support for Neelum Jhelum hydropower station in Pakistan
R-thread Self Drilling Anchor Bolt
T-thread Self Drilling Anchor Bolt
Large diameter Self Drilling Anchor Bolt
Top hammer rock drilling tools
Frequently Asked Questions
What types of drill rods can be used with R32 Thread Button Bits?
R32 Thread Button Bits are compatible with extension rods, MF (Male/Female) rods, and guide rods, available in standard lengths such as 3050mm, 3660mm, 4265mm, and 6095mm.
What sizes and specifications are available for R32 Button Bits?
R32 Button Bits come in diameters ranging from 51mm to 76mm. They are configured with varying button layouts (such as 6x10 to 8x11 gauge buttons) and gauge tooth angles of 30° or 35° depending on the model.
What is the difference between a standard Button Bit and a Retrac Button Bit?
Standard button bits are designed for general drilling, while Retrac button bits feature special rear grooves to facilitate easier retrieval of the drill string in loose or fractured rock formations.
What are the primary applications of Self Drilling Anchor (SDA) Bolts?
SDA Bolts are extensively used in geotechnical applications including slope stabilization, tunnel pre-support (such as umbrella arch systems), foundation reinforcement with micropiles, and railway and subway engineering.
Which thread types and rod sizes are supported in this drilling tool range?
We support standard thread sizes including R32, R38, T38, T45, and T51. Rod sizes include H32, H38, D32, D39, D46, D52, D56, D64, D76, and D87 to cover various rock drilling requirements.
