Tungsten Carbide 34mm-43mm Taper Drill Button Bits for rock drilling
Related Products
Product Description

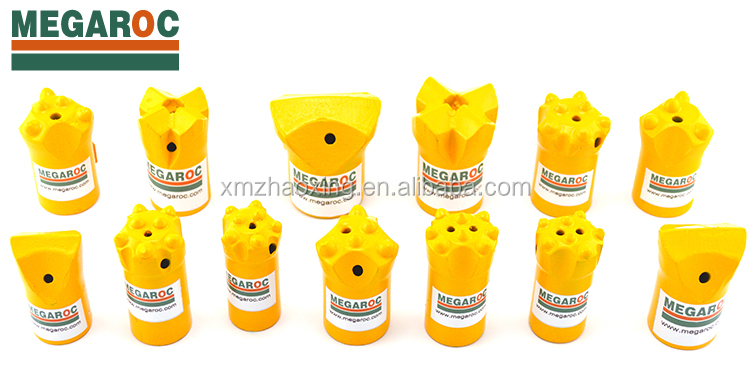

★ The Main Information of Taper Button Rock Drill Bit
| Name |
Taper button rock drill bit |
| Material |
Steel + Carbide |
| Type |
Chisel / Cross / Button bit |
| Application |
Mining, Quarrying, Ground engineering, Tunnel |
| Advantages |
1. Top quality with factory price
2. Delivery on time
3. Good after-service
|
| Certificate |
ISO9001 / CE |
| Package |
Inner package with plastic bags, outer package with wooden case or carton |
| Delivery |
5 days if in stock and 25-30 days for production |
| Payment Terms |
T/T / Western Union / MoneyGram / L/C |
| MOQ |
As your request |
| The parameters of Taper button rock drill bit |
| Products Name |
Dia (mm) |
Taper Angle (°) |
Length(mm) |
Weight(kg) |
| Taper Chisel / Cross Bit |
28 |
7 degree |
62mm |
0.16 |
| 30 |
0.20 |
| 32 |
0.22 |
| 34 |
0.24 |
| 36 |
0.28 |
| 38 |
0.32 |
| 40 |
0.36 |
| 42 |
0.38 |
| 46 |
0.44 |
| 50 |
0.50 |
| 60 |
0.66 |
| Taper Button Bit (with 4 pcs buttons) |
30/32 |
7 degree |
63mm |
0.20/0.22 |
| 36/38 |
0.28/0.34 |
| 40/42 |
0.36/0.42 |
| Taper Button Bit (with 5 pcs buttons) |
34 |
11 degree |
65mm |
0.3 |
| 40 |
7/11 degree |
63mm |
0.36 |
| Taper Button Bit (with 6 pcs buttons) |
36 |
11 degree |
63mm |
0.3 |
| 40 |
7 degree |
0.36 |
| 42 |
7 degree |
0.38 |
| Taper Button Bit (with 8 pcs buttons) |
32 |
7/12 degree |
65mm |
0.28 |
| 34 |
68mm |
0.30 |
| 38 |
63mm |
0.40 |

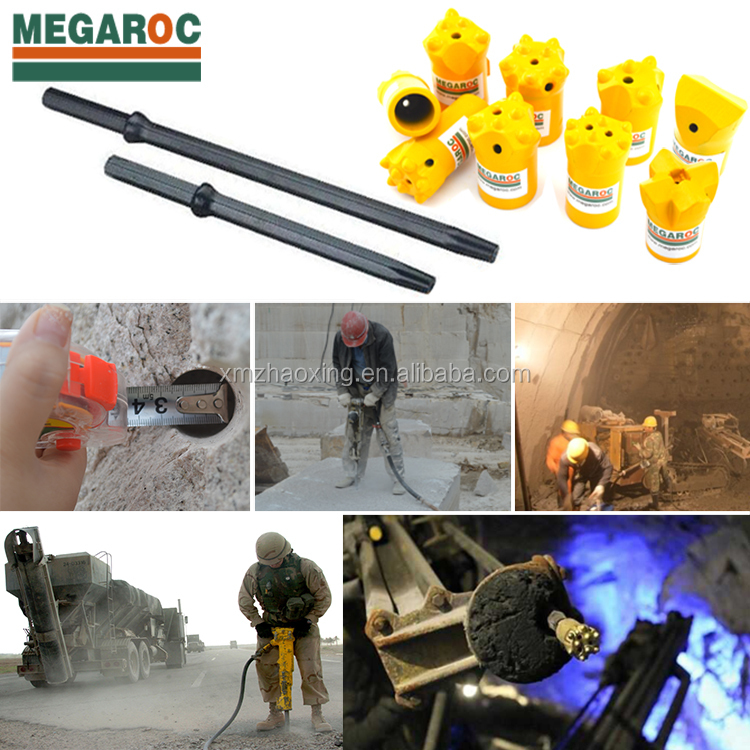

Application
Taper drill bit can be used on mines, stone quarries, tunnels, infrastructure construction and so on.

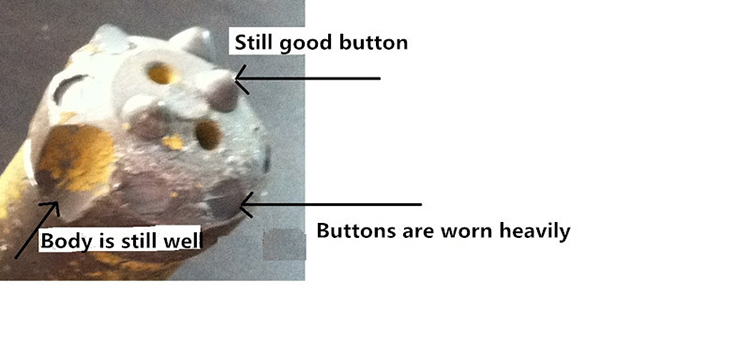

⚠ Problems may occur at work when bits are in low quality:
The reasons are as followed:
1. The body has low wear resistance and the hardness of the body is not up to standard.
2. Incorrect operation. This kind of drill bit is designed for light-duty rock drills. If the pressure of the rock drill is too high, failure can occur.

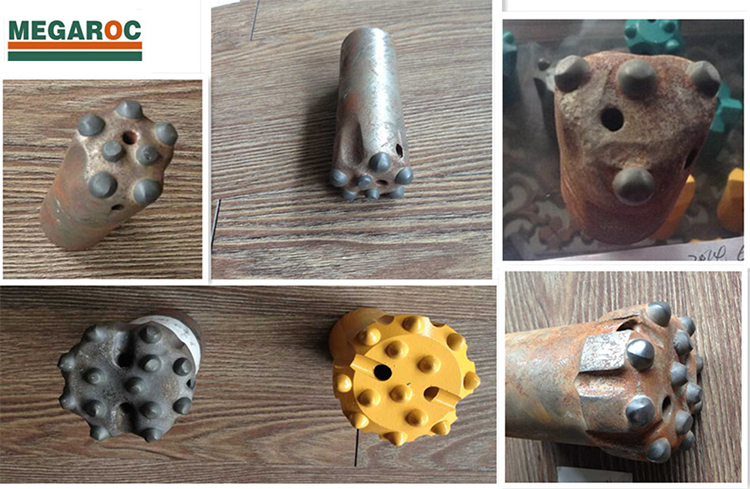

★ Performance of our bits after testing:
95% quality similarity with world top-class brands, such as Atlas Copco, etc.
Customer Visit
Our products are exported to Malaysia, Russia, India, Sudan, Philippines, Mexico, Greece, Tanzania, and so on. We also welcome you to visit us.
Why Choose Us?
★ 1. 19-Year Engineering Experience
We provide detailed drilling solutions via email, phone, or video if you encounter any difficulties during operation.
★ 2. Professional Quality Control
Advanced equipment, international quality certification, and experienced workers ensure standard performance.
★ 3. In-Time Delivery
Quick dispatch: only 3 days if items are in stock, and 25-30 days for standard manufacturing production cycles.
★ 4. Exceptional After-Service
Full compensation if buttons fall out, break, or the body fractures while the button is worn less than 1/3. 24-hour online service.
★ 5. Strong Production Capacity
High volume production capability yielding up to 10,000 pieces per day to satisfy bulk orders.

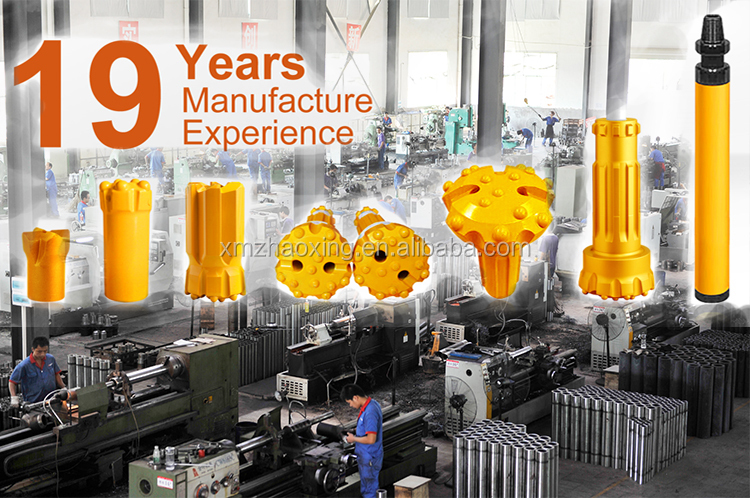

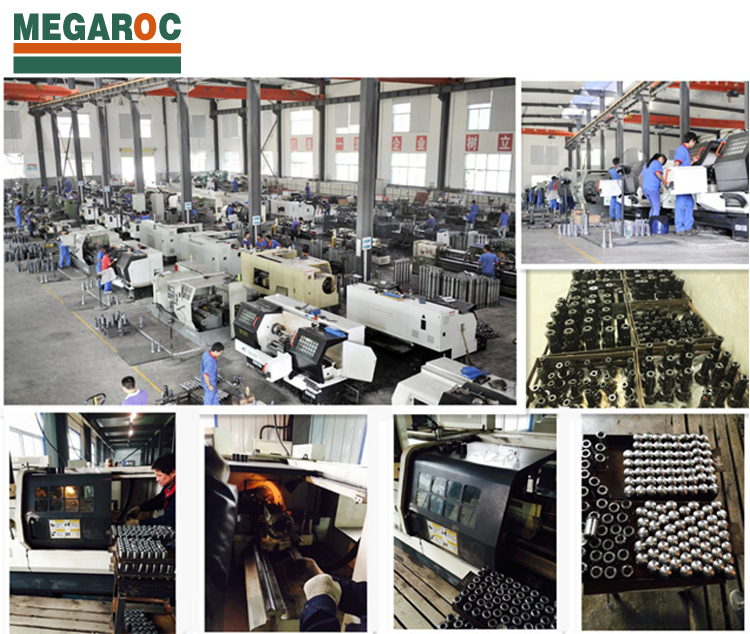

★ Our Factory
Advanced equipment && Professional technicians && Strict production process
Our company was established in 1996, with extensive experience in the drilling area. We specialize in providing drilling solutions for our customers to improve efficiency and cost savings.
★ Our Honor:
1. Gold Supplier on Alibaba
2. Excellent performance in the Orange Battle conducted by Alibaba
3. Won first place in the Talent Competition
4. Selected as one of the subjects of study by Tulane University from thousands of suppliers on Alibaba

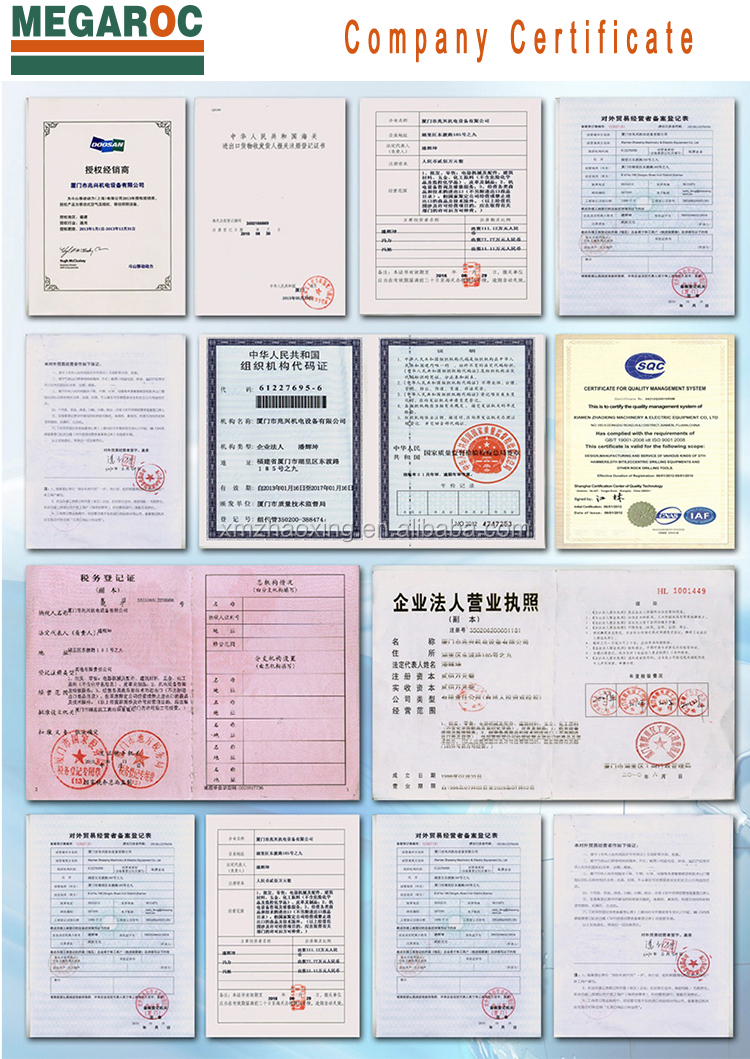

★ Certificates:

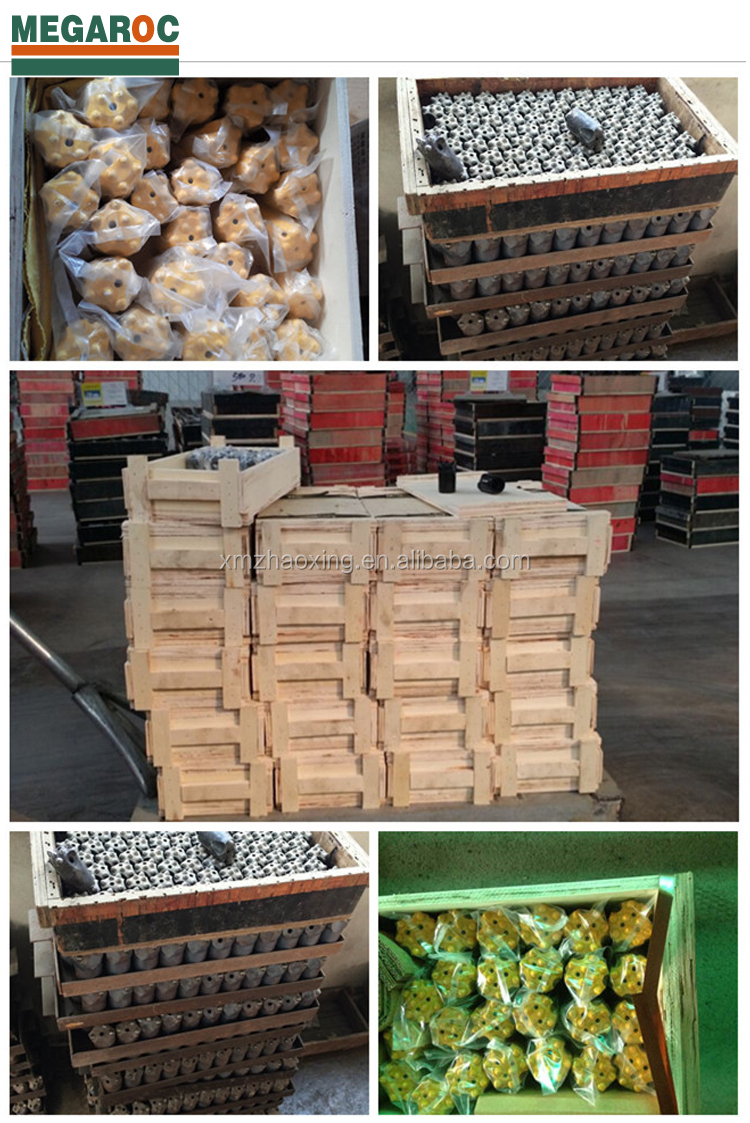

Packaging & Shipping
Inner Package: Plastic bag, wooden box
Outer Package: Wooden case / Plastic box / Carton / Customized according to your request
Frequently Asked Questions (FAQ)
Q
What information is needed to receive an accurate quotation for the taper drill bits?
To send you an accurate quotation, please provide the required bit diameter, the button quality class you need, and the type of rock you will be drilling.
Q
What shipping options are available for sample and bulk orders?
Sample orders can be sent by express carriers such as DHL, FEDEX, or TNT. Bulk orders can be shipped by air or sea. For clients in Russia, rail transportation is also available.
Q
What are the standard payment terms?
We accept T/T, Western Union, MoneyGram, and L/C at sight.
Q
How long are the delivery and production times?
If the items are in stock, shipping takes only 5 days. For standard production orders, the lead time is between 25-30 days.
Q
What quality control procedures do you implement?
We maintain an independent QC department that thoroughly inspects and tests all products before they are dispatched.
Q
What is your replacement policy for defective drill bits?
We offer full compensation/replacement if buttons detach, break, or the body breaks while the button wear is less than 1/3.
